4. Grasp by hand (or use a pipe wrench with jaw
protectors to avoid gouging the cross tube) and
slightly rotate the cross tube toward the front of
the vehicle and then slightly toward the rear.
Then center the cross tube between the stop
positions. If the cross tube does not rotate in
either direction, replace both tie rod ends.
5. Position yourself directly below the ball stud
socket. Using both hands, grab the end as close
to the socket as possible, no more than 6 inches
(15.2 cm) from the end. Firmly apply about 100
pounds of hand pressure in an up and down
motion several times. When moving the
assembly, check for any movement at both tie
rod ends. See
Fig. 8.
If any movement is detected at one tie rod end,
replace both tie rod ends. Always replace tie rod
ends in pairs, even if only one tie rod end is
damaged.
CAUTION
Do not attempt to straighten a bent cross tube.
Doing so could result in damage to the axle. Be
sure to replace the cross tube with an original
equipment cross tube with the same length,
diameter, and thread size as the existing cross
tube.
6. Check the cross tube for cracks or other
damage. If the cross tube is bent or damaged,
replace the cross tube.
7. Check the clamps for damage. If a clamp is
damaged, replace the clamp. Replace the entire
cross tube assembly if either clamp is welded to
the cross tube.
8. Check for proper installation of the tie rod end
clamp to the cross tube. Make sure that the tie
10/11/2001
f330186

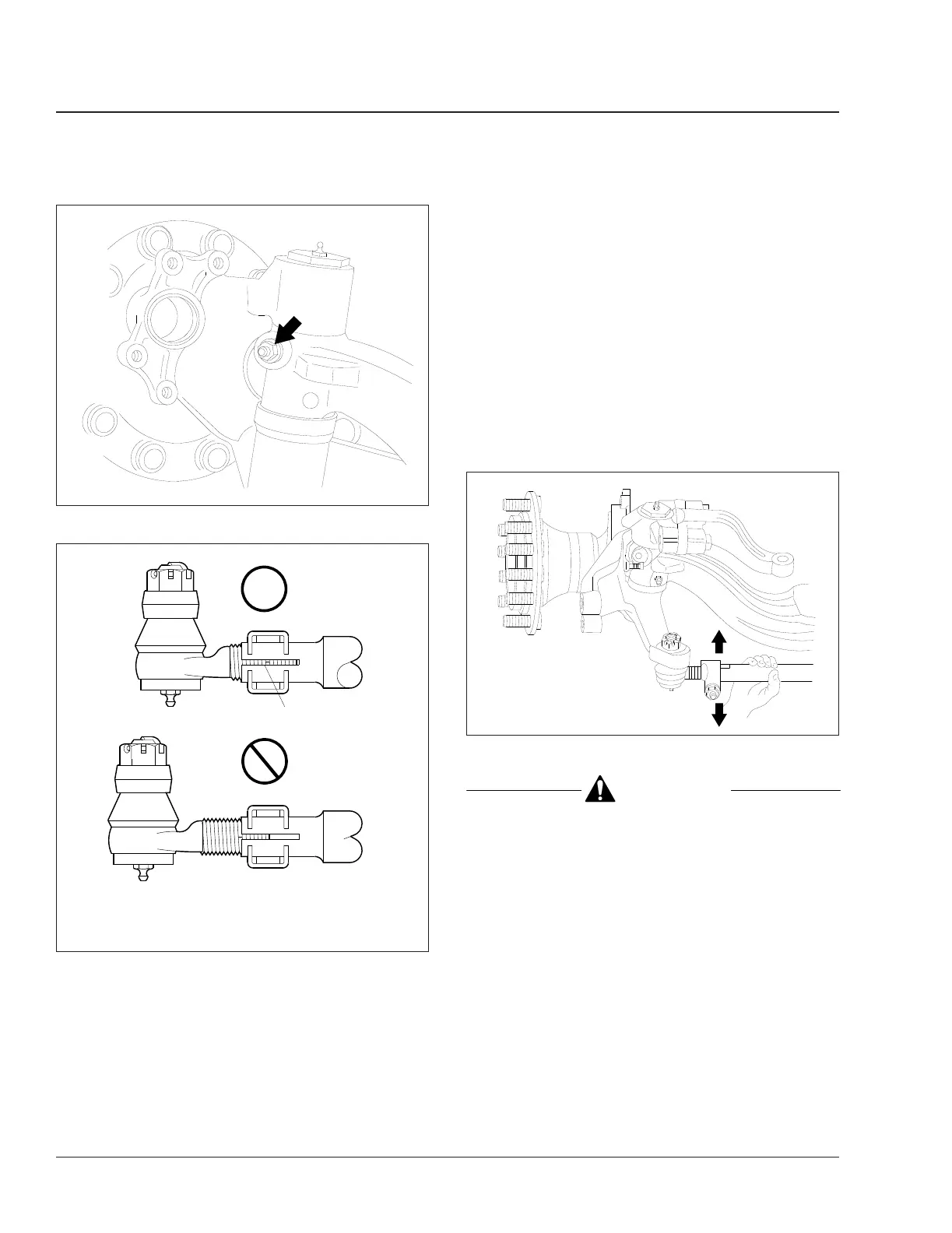

Fig. 6, Draw Key Nut
f320033a
1
OK
OK
02/27/2007
NOTE: Shown without pinch bolt to provide clarity.
1. Cross-Tube Split
Fig. 7, Tie-Rod End Adjustment
10/10/2001
f330195
Fig. 8, Check Movement of Tie Rod End
Front Axle33
Business Class M2 Plus Maintenance Manual, 02/10/202333/4
