19

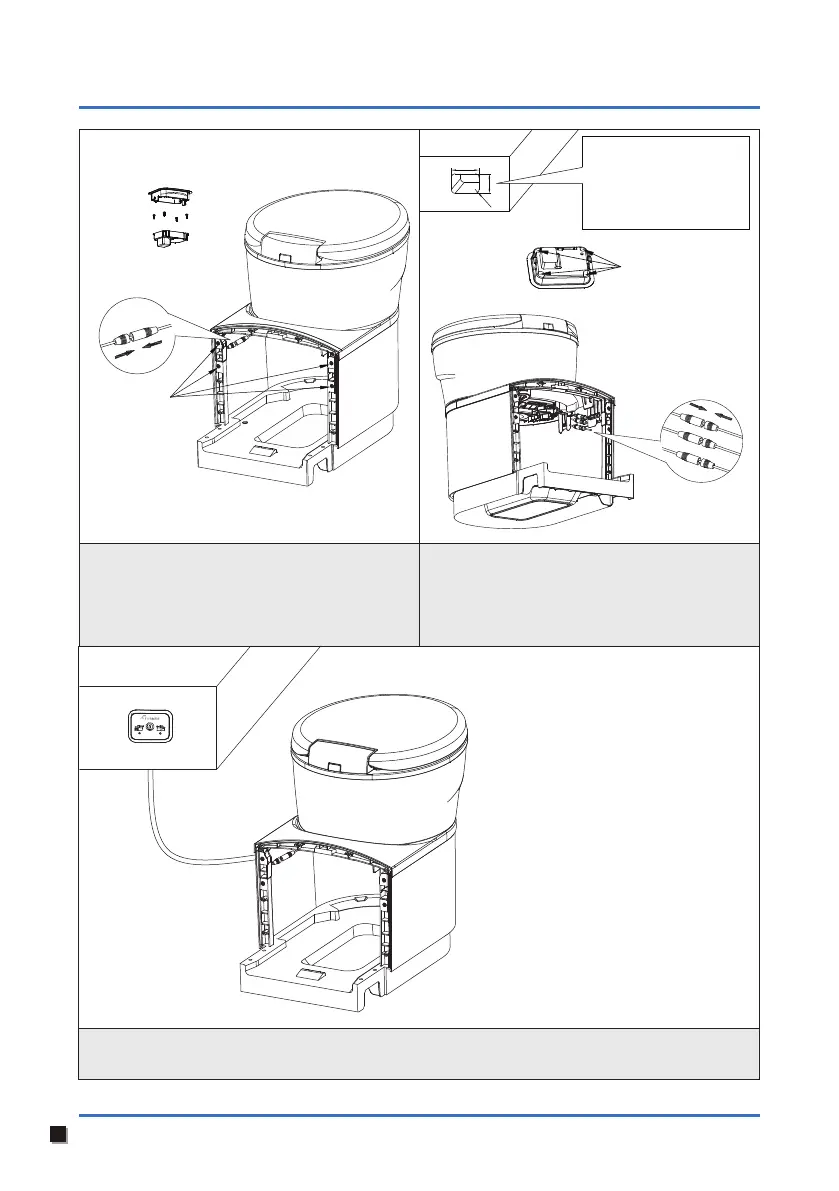

Console removal
7. Re-connect the solenoid valve connector.
Use 4 screws to lock according to the position
shown in the figure, and the screw torque is
less than or equal to 1.2N.m.
Lock the four
screws according
to the position
shown in the
figure, and the screw
torque is less than or equal to 1.2N.m.
Install the control
board on the control
box, and inject proper
amount of glue into
the four corners.
After glue is applied,
make sure that the
function keys are
normal
9. Re-install the control box and control board at the appropriate position, and then test
whether the function is normal.
8. Re-connect the three waterproof joints,
pay attention to distinguish the joint color.
And fix the main control board with glue.
Open holes in suitable mounting locations for
control box installation.
Suggested size of opening
hole in control box.
Length: 88±1mm.
Width: 62±1mm.
Depth: ≥43mm.
88
62
R12
