Frick QUANTUM LX - Page 17

QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 17
Q5 INTERCONNECTIONS

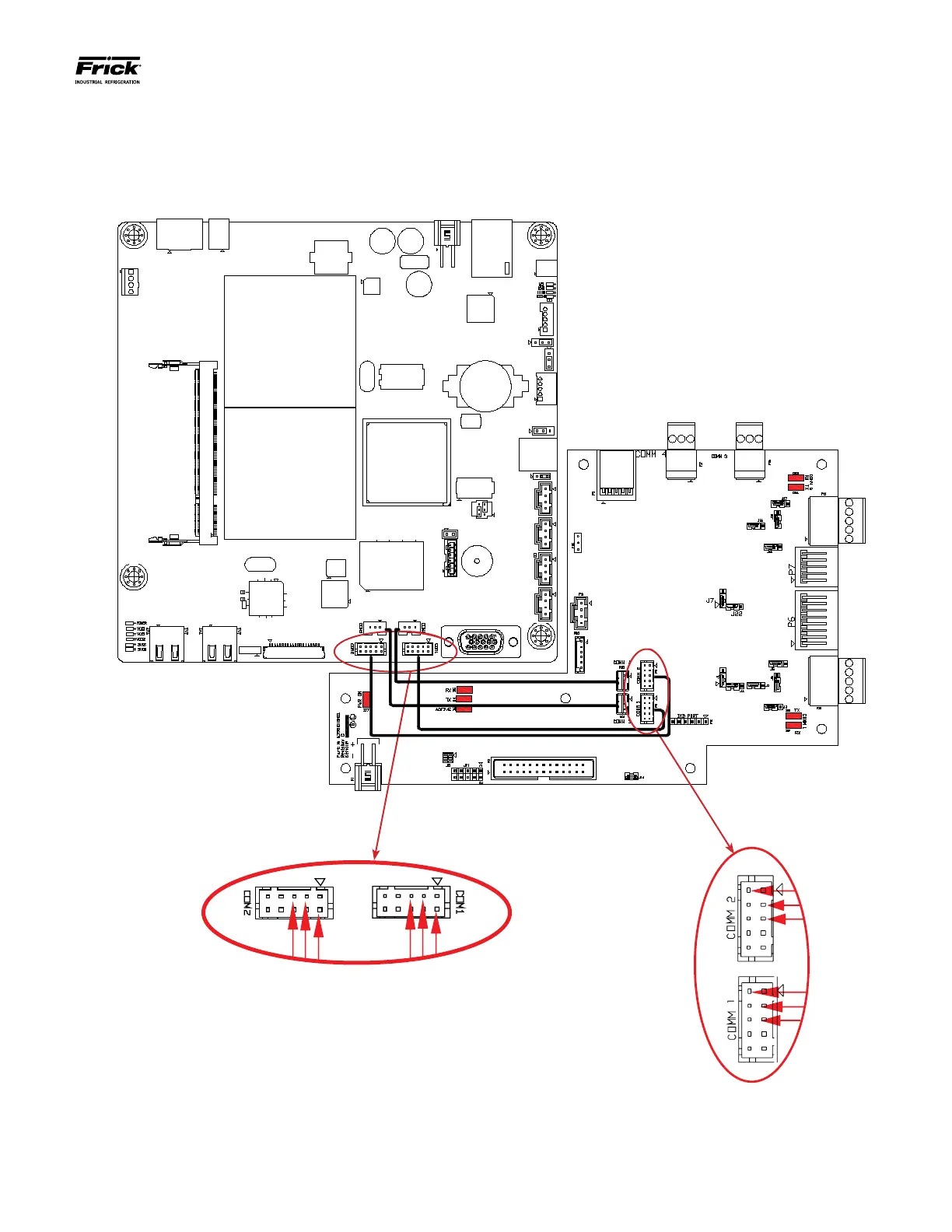

The pictorial below depicts the Q5 motherboard, and the nec-
essary interconnects between it and the Interface board. Each
of the interconnecting harnesses must be installed as shown for
proper operation.
If the harness for
either COMM1 or
COMM2 is ever re-
moved for either re-
pair, replacement or
troubleshooting, en-
sure that the pinout
matches as shown
here when plugging
the ends back in. All
other Interconnection
harness ends share
the same pinout at
both ends.
