QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 40

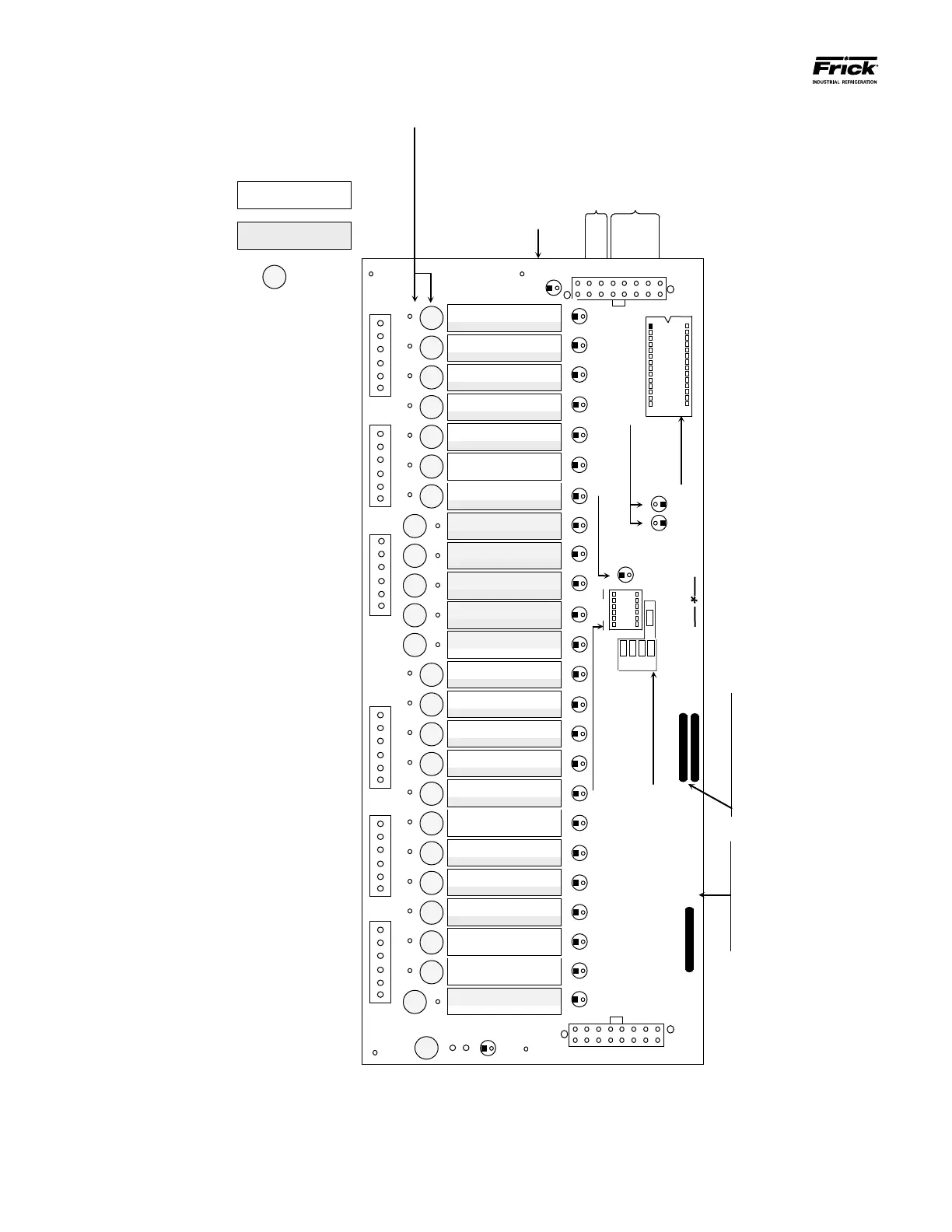

VESSEL PANEL DIGITAL I/O BOARD #2 PICTORIAL (Optional)
DIPSWITCH SETTINGS SIGNIFY
BOARD IDENTIFICATION NUMBER
DIO
19200
PROGRAM VERSION
I/O COMMUNICATION
ACTIVITY LAMPS
MICROPROCESSOR
WATCHDOG LAMP
(BLINKS IF OK)
ITION DETERMINES
INPUT OR OUTPUT
IN = INPUT OR UPPER LOCATION
OUT = OUTPUT OR LOWER LOCATION
DIGITAL I/O BOARD #2 (OPTIONAL)
Vessel 2 Compressor Running
Vessel 2 Low Level Warning
Vessel 2 Low Level Shutdown
Solenoid 2
Vessel 3 Refrig. Pump # 2
Vessel 3 Low Level Warning
Vessel 3 Low Level Shutdown
Vessel 3High Level Shutdown
Vessel 3 High Level Warning
Vessel 3 Operating Level 1
Vessel 3 Operating Level 2
Vessel 3 Compressor Running
INPUT MODULE
INSTALLED
FUSE
5A
OUTPUT MODULE
INPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
OUTPUT MODULE
INPUT MODULE
INPUT MODULE
OUT
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
To Next Page
