QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 47

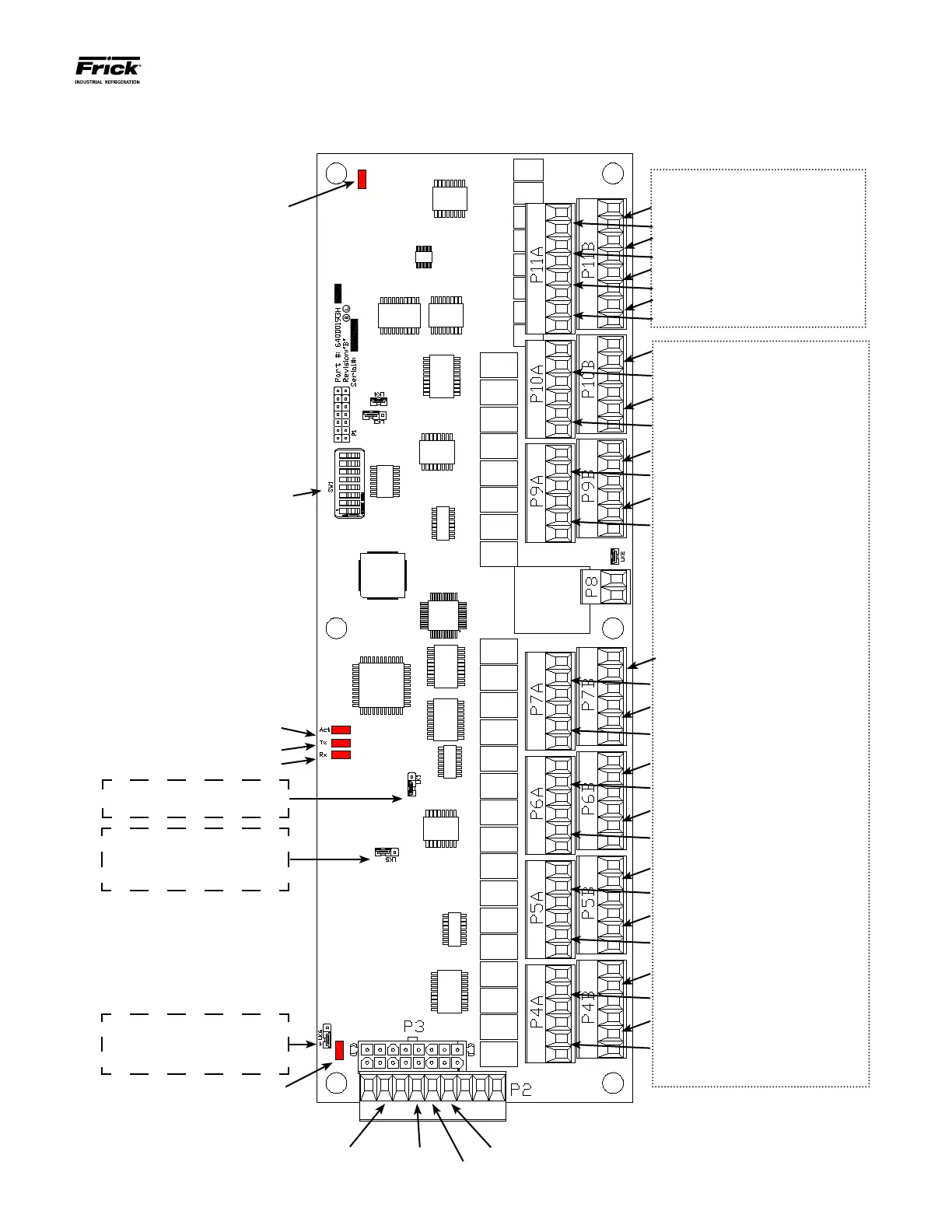

CONDENSER ANALOG BOARD PICTORIAL
Active LED (D9)
Tx LED (D8)
Rx LED (D7)
5 VDC Power LED (D1)
24 VDC Power LED (D5)
SW1
LK5
(For Q4 - Must be removed
For Q5 - Must be installed)
LK6
(For Q4 - Pins 1 to 2 jumpered
For Q5 - Pins 2 to 3 jumpered)
LK1
(Defaulted with jumper out)
CH1 Input - Condenser Pressure
CH2 Input - Outside Air Temperature
CH3 Input - Outside Air Humidity
CH4
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
CH17
CH18
CH19
CH20
CH21
CH23
CH22
CH24
OUTPUTS
CH1 - Variable Speed Fan #1
CH2 - Variable Speed Fan #2
CH5 - Variable Speed Fan #5
CH6 - Variable Speed Fan #6
CH3 - Variable Speed Fan #3
CH4 - Variable Speed Fan #4
CH7 - Variable Speed Fan #7
CH8 - Variable Speed Fan #8
INPUTS
+12 VDC
COM
-Tx/-RX
+Tx/+Rx
To Next Page
