QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 48

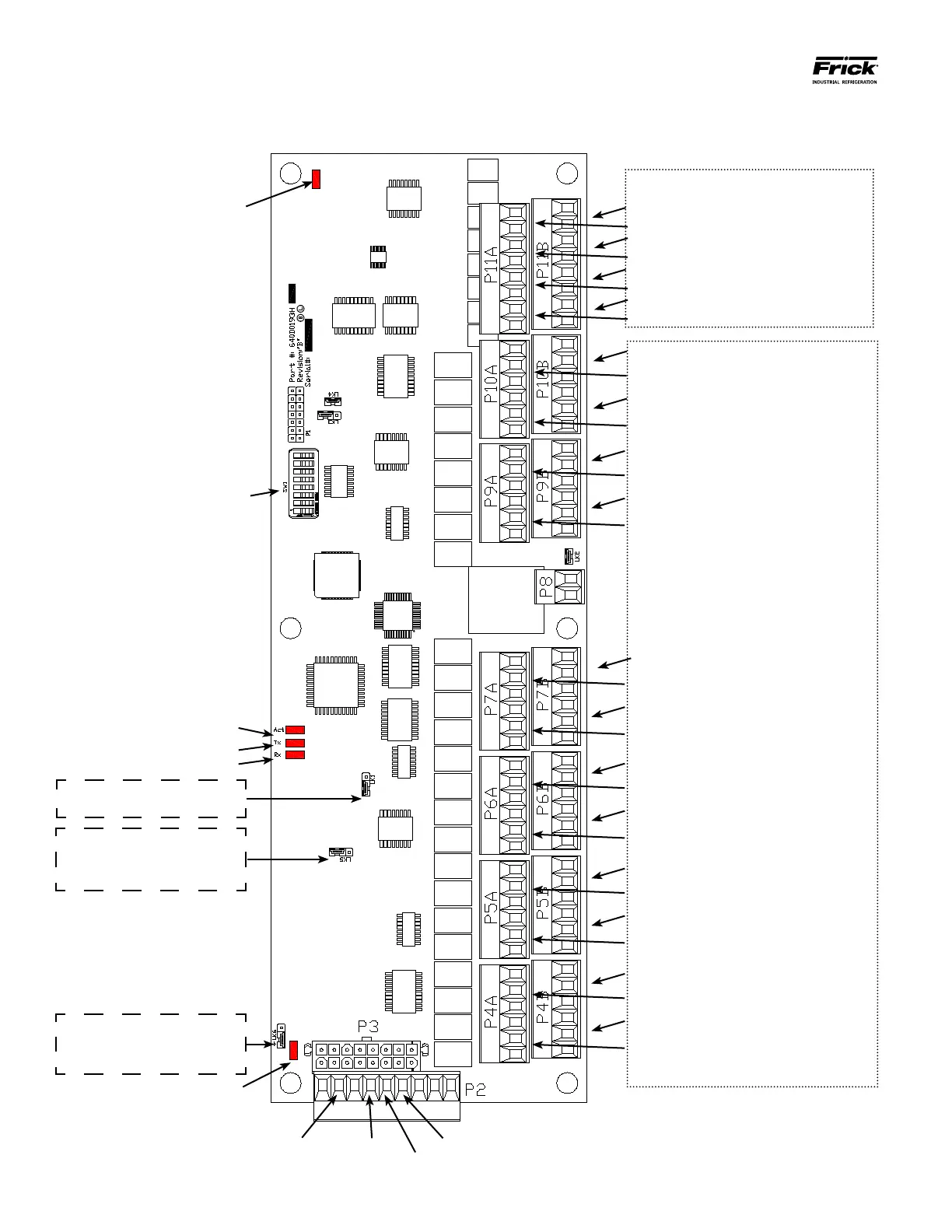

VESSEL ANALOG BOARD PICTORIAL
Active LED (D9)
Tx LED (D8)
Rx LED (D7)
5 VDC Power LED (D1)
24 VDC Power LED (D5)
SW1
LK5
(For Q4 - Must be removed
For Q5 - Must be installed)
LK6
(For Q4 - Pins 1 to 2 jumpered
For Q5 - Pins 2 to 3 jumpered)
LK1
(Defaulted with jumper out)
CH1 - Vessel 1 Level
CH2 - Vessel 2 Level
CH3 - Vessel 3 Level
CH4 - Vessel 1 Pressure
CH5 - Vessel 2 Pressure
CH6 - Vessel 3 Pressure
CH7 - Vessel 1/Pump 1 High Side Pressure
CH8 - Vessel 2/Pump 1 High Side Pressure
CH9 - Vessel 3/Pump 1 High Side Pressure
CH10 - Vessel 1/Pump 1 Low Side Pressure
CH11 - Vessel 2/Pump 1 Low Side Pressure
CH12 - Vessel 3/Pump 1 Low Side Pressure
CH13 - Vessel 1/Pump 2 High Side Pressure
CH14 - Vessel 2/Pump 2 High Side Pressure
CH15 - Vessel 3/Pump 2 High Side Pressure
CH17 - Vessel 2/Pump 2 Low Side Pressure
CH18 - Vessel 3/Pump 2 Low Side Pressure
CH19 - Auxiliary 1 Input
CH20 - Auxiliary 2 Input
CH21 - Auxiliary 3 Input
CH23 - Auxiliary 4 Input
CH22 - Auxiliary 5 Input
CH24 - Auxiliary 6 Input
OUTPUTS
CH1 - Vessel 1 Modulated Valve
CH2 - Vessel 2 Modulated Valve
CH5 - Auxiliary 2
CH6 - Auxiliary 3
CH3 - Vessel 3 Modulated Valve
CH4 - Auxiliary 1
CH7 - Auxiliary 4
CH8 - Not Used
INPUTS
+12 VDC
COM
-Tx/-RX
+Tx/+Rx
CH16 - Vessel 1/Pump 2 Low Side Pressure
