QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 57
USB Memory Stick Plug-in locations

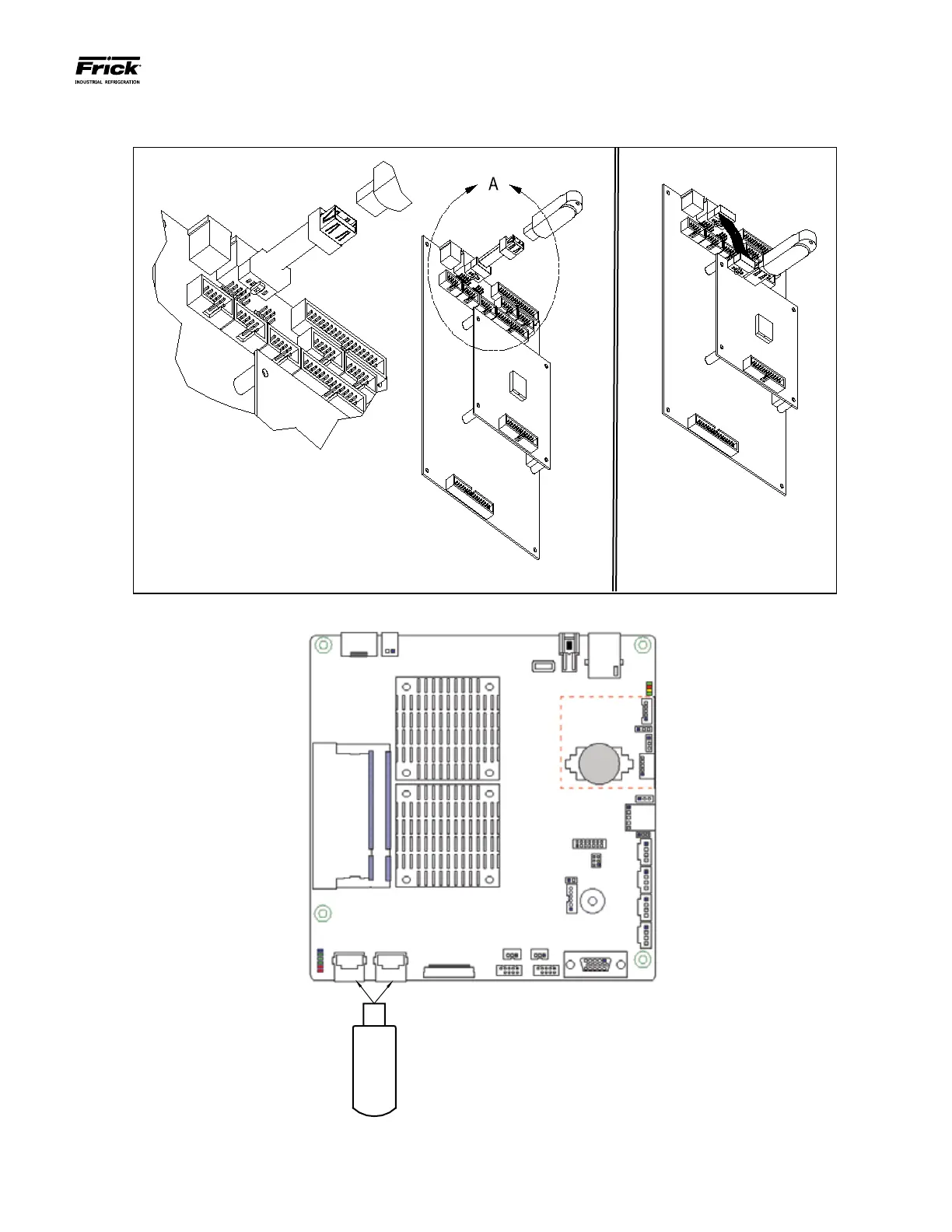

This drawing represents one version of the LX where
the USB stick plugs into the mother board with the
use of an adapter.
This version of the LX has a
USB connector located on the
daughter board, no adapter is
required.
Q4 USB Location
Q5 USB Locations
