QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 56

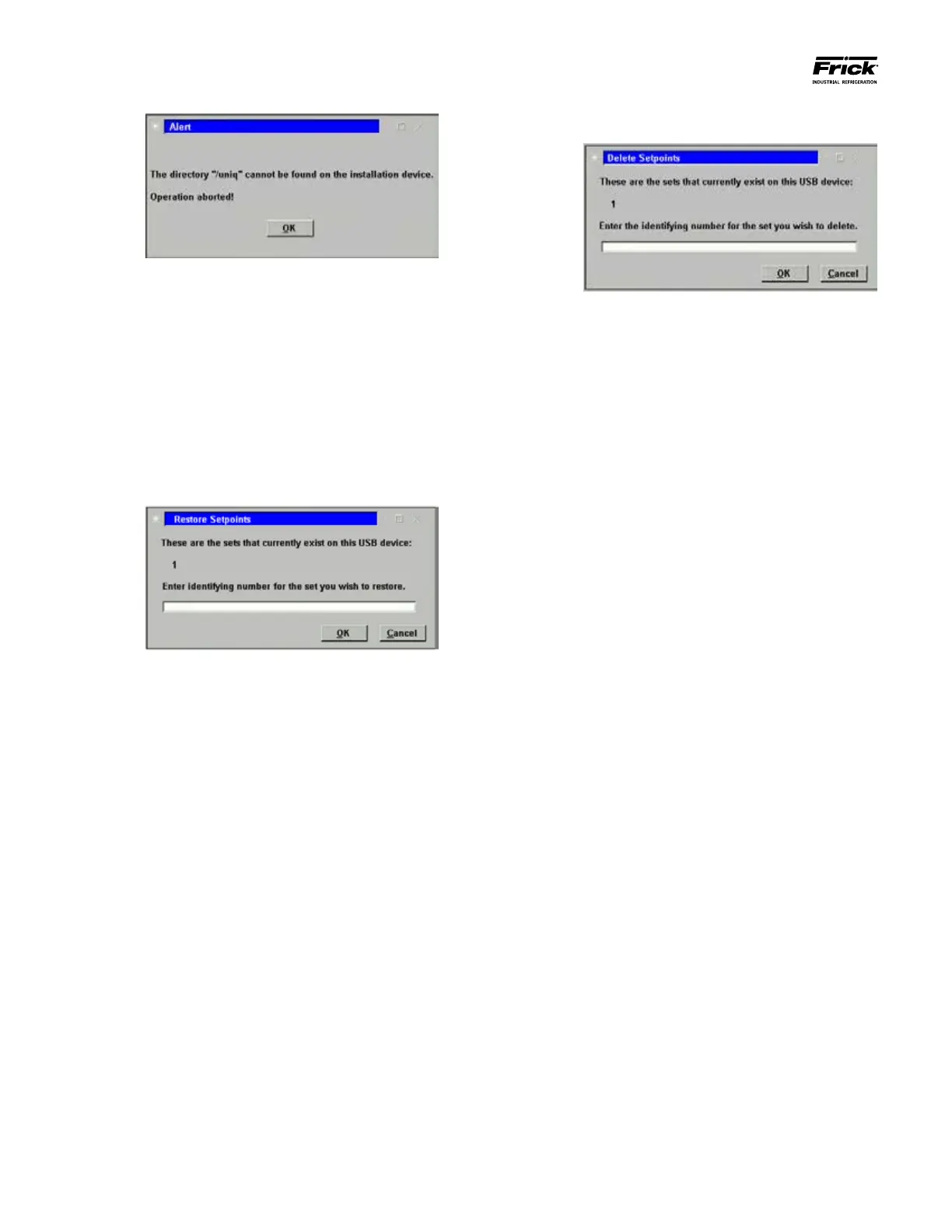

• If the above dialog box appears, you must insert
a valid software upgrade USB device.
3) Restore Setpoints – Use this option to re-load
previously saved setpoints and custom text to the
Quantum™.
• Ensure that all setpoint values have been
documented as a safety precaution. Install the
previously saved setpoint USB device into the
provided connection on the Quantum™.
• Press [3] to Restore Setpoints.
• The software program will read the USB device,
and the following dialog box will appear:
• Any numerals that appear on the center line of
this box will represent units that have already
been saved (from 0 to 99). If no units have yet
been saved, the center line will be blank and
therefore there are no setpoints to restore.
• Enter a number on the keypad that corresponds
to the unit number that you wish to restore, and
then press [Enter].
• A progress bar will appear asking you to Please
Wait…
• After the le has been written or updated, the
dialog boxes will disappear, and you can either
exit, or continue with another function.
4) Delete Setpoints – Use this option to delete the
setpoints and custom text for a particular unit:
• Ensure that all setpoint values have been
documented as a safety precaution. Install the
previously saved setpoints USB device into the
provided connection on the Quantum™.
• Press the [4] button.
• The software program will read the USB device,
and the following dialog box will appear:
• Any numerals that appear on the center line of
this box will represent units that have already
been saved (from 0 to 99). If no units have yet
been saved, the center line will be blank, and
therefore there are no setpoints to delete.
• Enter a number on the keypad that corresponds
to the unit number that you wish to delete,
highlight the Ok button, and then press [Enter].
You will be prompted with a new dialog box
which will ask you OK to delete set number (0-
99)?
• Highlight the Yes button, and press [Enter]. The
dialog box will be updated with a new message
stating that Set number (0-99) has been deleted!
• Press [Enter] to return to the Software
Maintenance menu.
5) Exit - Use this selection to leave this screen:
• While leaving the USB device plugged in, press
[5] to Exit.
• During the reboot of the Quantum™ LX, a message
will appear that says, “A System Update le has
been detected on the mounted USB device. Do
you wish to perform this update?” Select [Yes],
and a System Update will be performed.
• At the conclusion of the System Update, a
message will appear that says, “The USB device
can now be removed and power should be
recycled.” Follow these instructions.
Setpoint Defaults When Performing A Quantum™ LX
Software Upgrade
The term software upgrade refers to the whole procedure
of Saving Setpoints, Full System Installs, and Restoring
Setpoints when on the Software Maintenance screen.
They get set to these default values even after a Restore
Setpoints is performed, so the individual doing the
upgrade must then set them manually to what they need
to be if they are critical to the application.
