Frick QUANTUM LX - ETHERNET AND NETWORKING

QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 7

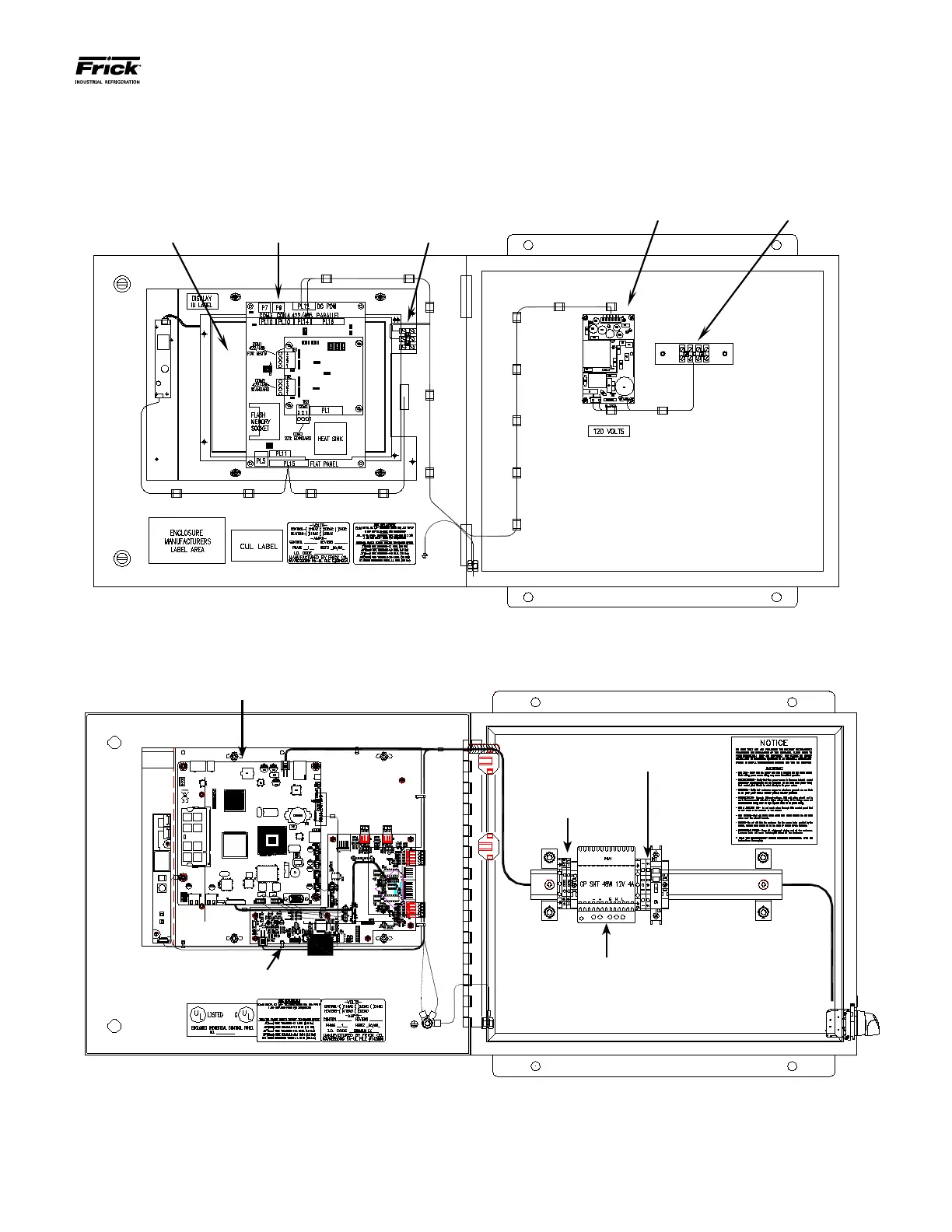

The inside of the panel will vary, depending on whether it is a
Q4 or Q5 based controller. The following pictorial shows both
versions:
Power Supply
Communications
Terminal Block
120 VAC Power
Connection
Rear of Display
Quantum™ LX
Controller
Q4 Controller
Q5 Controller
Interface Board
Power Supply
Communications
Terminals
120 VAC Power
Connection
Q4 Panel
Q5 Panel
