QUANTUM
™
LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
090.560-M (MAY 2016)
Page 8
CONDENSER AND VESSEL PANEL

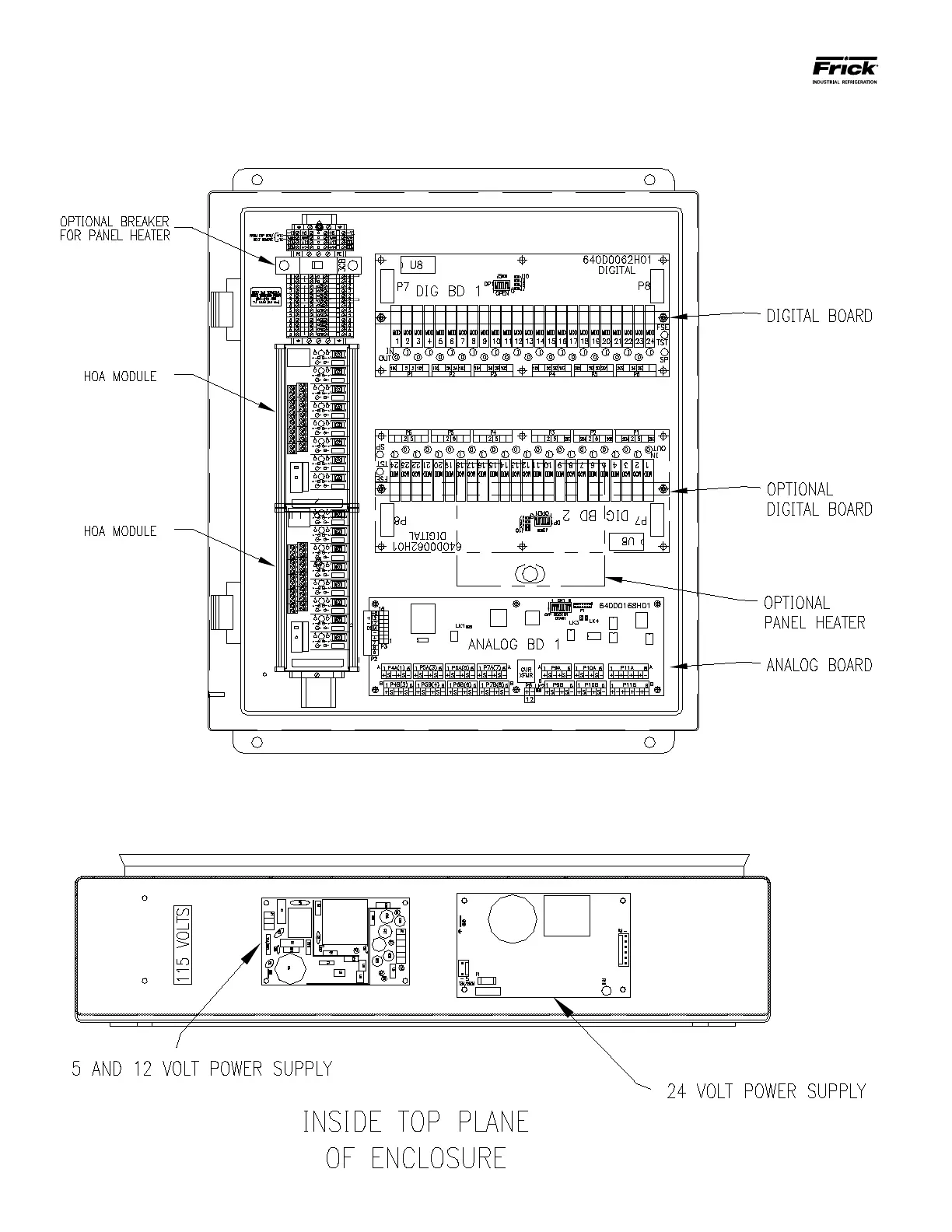

The following pictorial shows the inside, top of the enclosure.
The power supply which provides the necessary DC voltages to
power both the digital and analog boards, as well as providing
power to the analog channels is located here.
