SGC ROTARY SCREW COMPRESSOR
INSTALLATION
SE-1: SLIDE STOP
LINEAR TRANSMITTER
T: MANIFOLD BLOCK
TANK
SM-1: MAIN OIL
INJECTION
SC-11: CLOSED THREAD DRAIN
SE-2: SLIDE VALVE
LINEAR TRANSMITTER
TE-1: SUCTION GAS
TEMP. ELEMENT
P: MANIFOLD
BLOCK
PRESSURE
SC-7: SEAL WEEPAGE
SUCTION PORT
SIZE “P” CLASS 300 FLANGE
DISCHARGE
PORT
6" CLASS 300
FLANGE

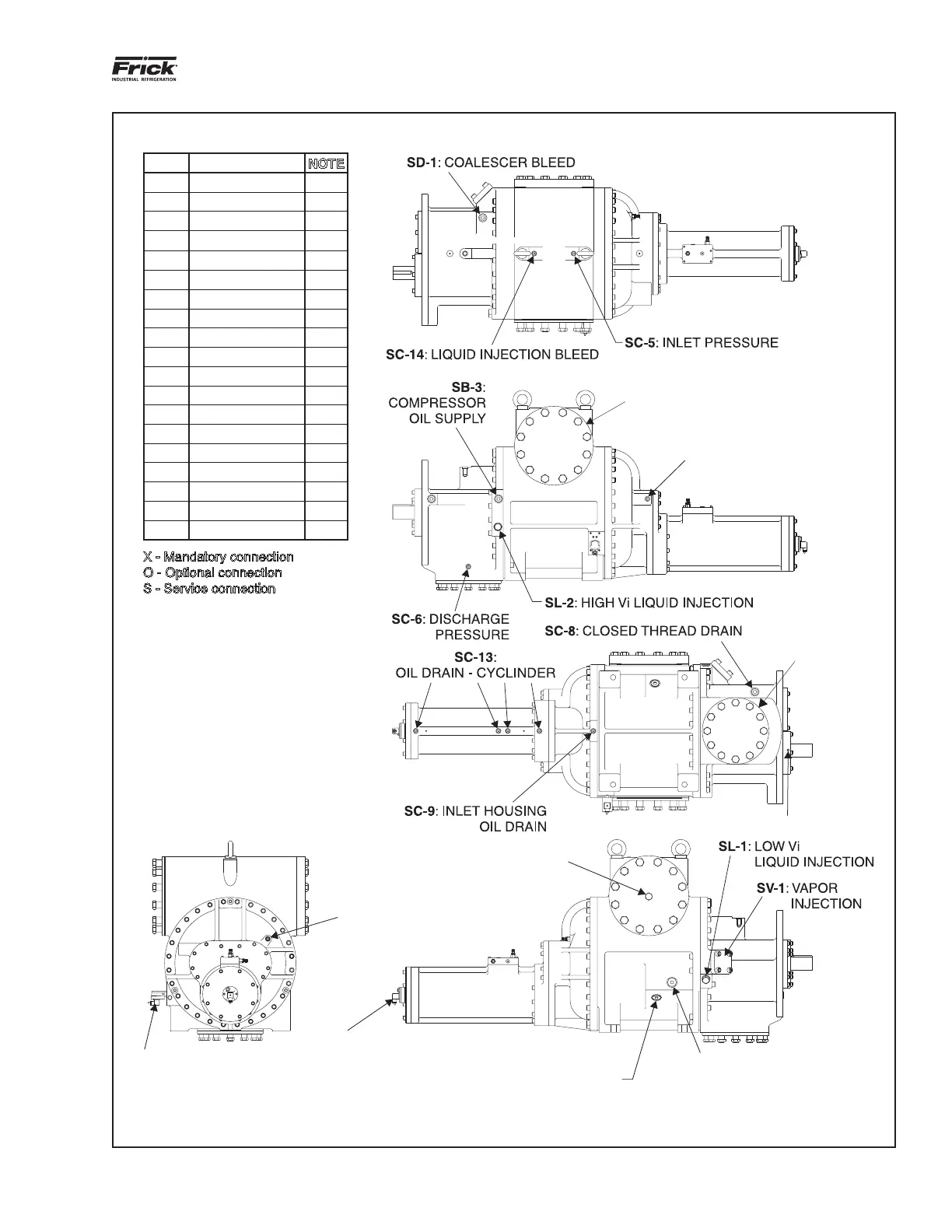

Figure 4. Port Locations, SGC 2313/2317/2321
PORT THREAD SIZE NOTE
SB-3
1Z\zn - 12 UN-2B
X
SC-5
⁹\zn - 18 UNF-2B
O
SC-6
⁹\zn - 18 UNF-2B
O
SC-7
Z\₈ - 27 NPTF
O
SC-8
1Z\zn - 12 UN-2B
S
SC-9
⁹\zn - 18 UNF-2B
S
SC-11
1B\zn-12 UN-2B
S
SC-13
⁹\zn - 18 UNF-2B
S
SC-14
⁹\zn - 18 UNF-2B
O
SD-1
1Z\zn - 12 UN-2B
O
SE-1 DIN Connector X
SE-2 DIN Connector X
SL-1
1Z\zn - 12 UN-2B
O
SL-2
1Z\zn - 12 UN-2B
O
SM-1
1B\zn - 12 UN-2B
X
SV-1
2 Square Flange O
TE-1
³\₄ - 14 NPTF
O
P
⁹\zn - 18 UNF-2B
X
T
⁹\zn - 18 UNF-2B
X
X - Mandatory connection
O - Optional connection
S - Service connection
