Frick Vyper 305 - Quantum Lx Communications Wiring; Installation Check List

VYPER
™
VARIABLE SPEED DRIVE
INSTALLATION
100-200 IOM (FEB 09)
Page 27
INSTALLATION CHECK LIST
Before starting the Vyper
™
, be sure that all of the following
has been performed.
• Verifythattheprimarywaterorglycolcoolingisconnected
to the heat exchanger at the recommended flow and tem-
perature recommendations.
• Draintheshipping coolant from Vyper
™
and properly dis-
pose. Replace with running coolant (pink) and purge air
from the cooling system by running for at least five minutes
with filler cap off. Replace the cap when the air is fully
purged.
• Verifythatthepackagetemperature sensors are RFI sup-
pression type (639A0151G01)
• Environment
a. Cleanliness. Keep construction debris out of the cabi-
net
b. Confirm operation of internal cooling fans.
c. Confirm operation of coolant circulation pump.
d. Confirm wiring and operation of the motor blower fans
if present.
• Mounting:
a. Verify that the Vyper
™
Drive is properly mounted: to the
floor or wall for remote mounts or to the package for
package-mounted units.
b. Verify that the Vyper
™
power leads running to the motor
do not exceed 50 ft long.
• Wiring
a. Verify control wiring has been connected from the
Quantum
™
LX panel to the Vyper
™
in accordance with
the engineering drawings for the specific installation.
QUANTUM
™
LX COMMUNICATIONS WIRING

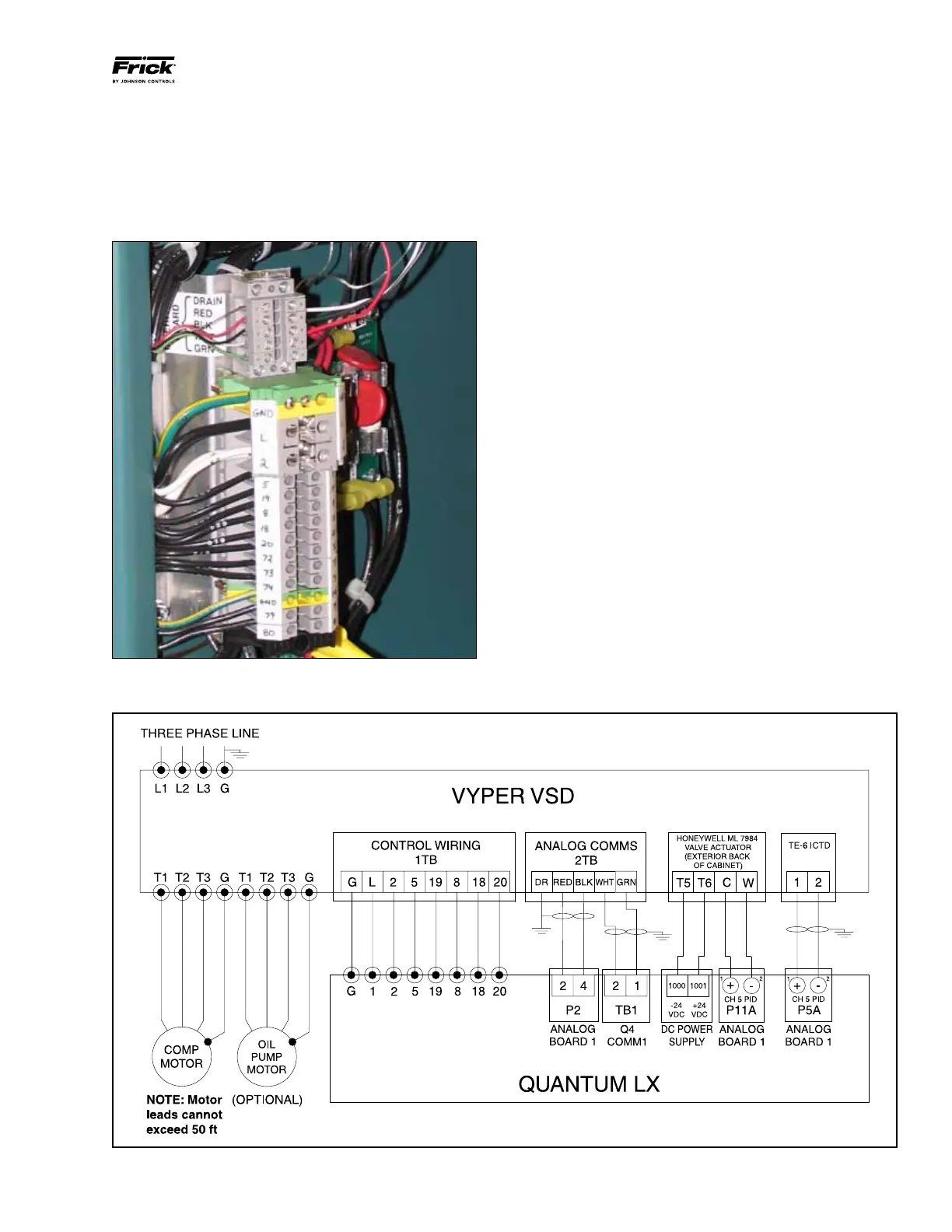

Figure 22 shows the junction points for the Quantum
™
LX
panel control wiring into the Vyper
™
cabinet. This wiring
location is in the lower left corner of the Vyper
™
cabinet. The
control wiring enters the Vyper
™
cabinet from the left side
cabinet wall through a connection port. Please consult the
unit wiring diagram, Figure 23, for applicable connections.
Figure 22 - Quantum
™
LX Communications Wiring
Figure 23
