2. CIRCUIT DIAGRAM
• MODEL : D30A

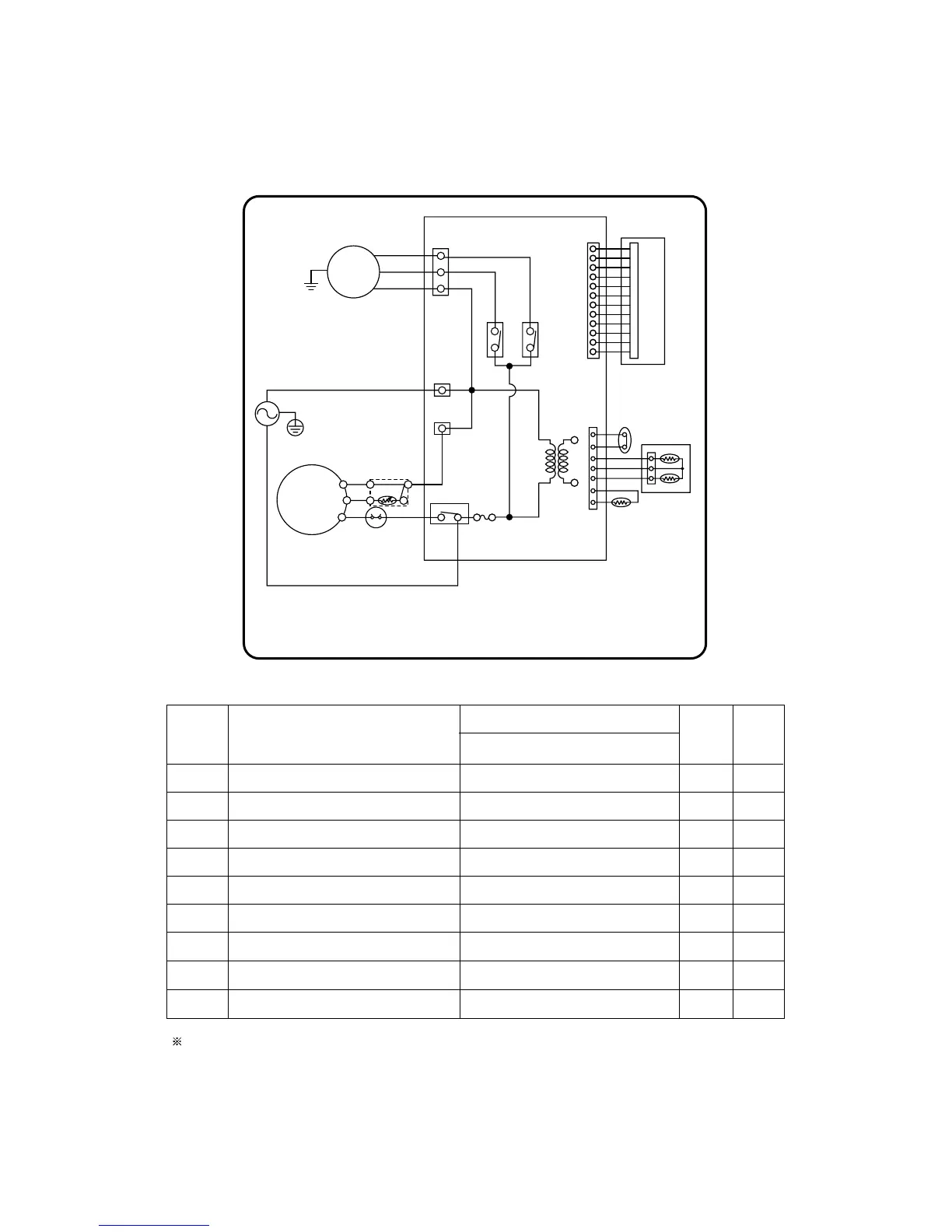

WIRING DIAGRAM
3854A20247E
MAIN PCB
CN-FAN
CN-AC1
RY-COMP
RY-LO
RY-HI
FUSE 250V T3.15A
POWER
TRANS
CN-AC2
CN-SEN
CN-DISP1
HUMIDITY
SENSOR
THERMISTOR
DISPLAY P.C.B
BUCKET
S/W
43
BK
BR
WH(BL) (N)
BK(BR) (L)
BK(HI)
RD(LOW)
OR(COM)
MOTOR
GN/YL
GN/YL
36
5
4
BL
M
C
S
O.L.P
COMP.
Q'TY
PER SET
1
1
1
1
1
1
1
1
1
RE-
MARKS
S
S
S
S
S
S
S
S
S
LOCATION
NO.
1
2
3
4
5
6
7
8
9
DESCRIPTION
POWER CORD ASSEMBLY
MOTOR ASSEMBLY, SINGLE
P.T.C. ASSEMBLY
RE-COMPRESSOR, SET
O.L.P.
PWB(PCB) ASSEMBLY, DISPLAY
SENSOR ASSEMBLY
SWITCH ASSEMBLY, MICRO
PWB(PCB) ASSEMBLY, MAIN
D30A
6411A20001Y
4681A20040E
6748C-0003D
2521C-A8626
6750C-0009E
6871A20279B
6877A30013H
6600A30003C
6871A20162K
PART NO.
S: SERVICE PARTS A: ALTERNATE PARTS N: NOT SERVICE PARTS
