COMPONENTS TESTING

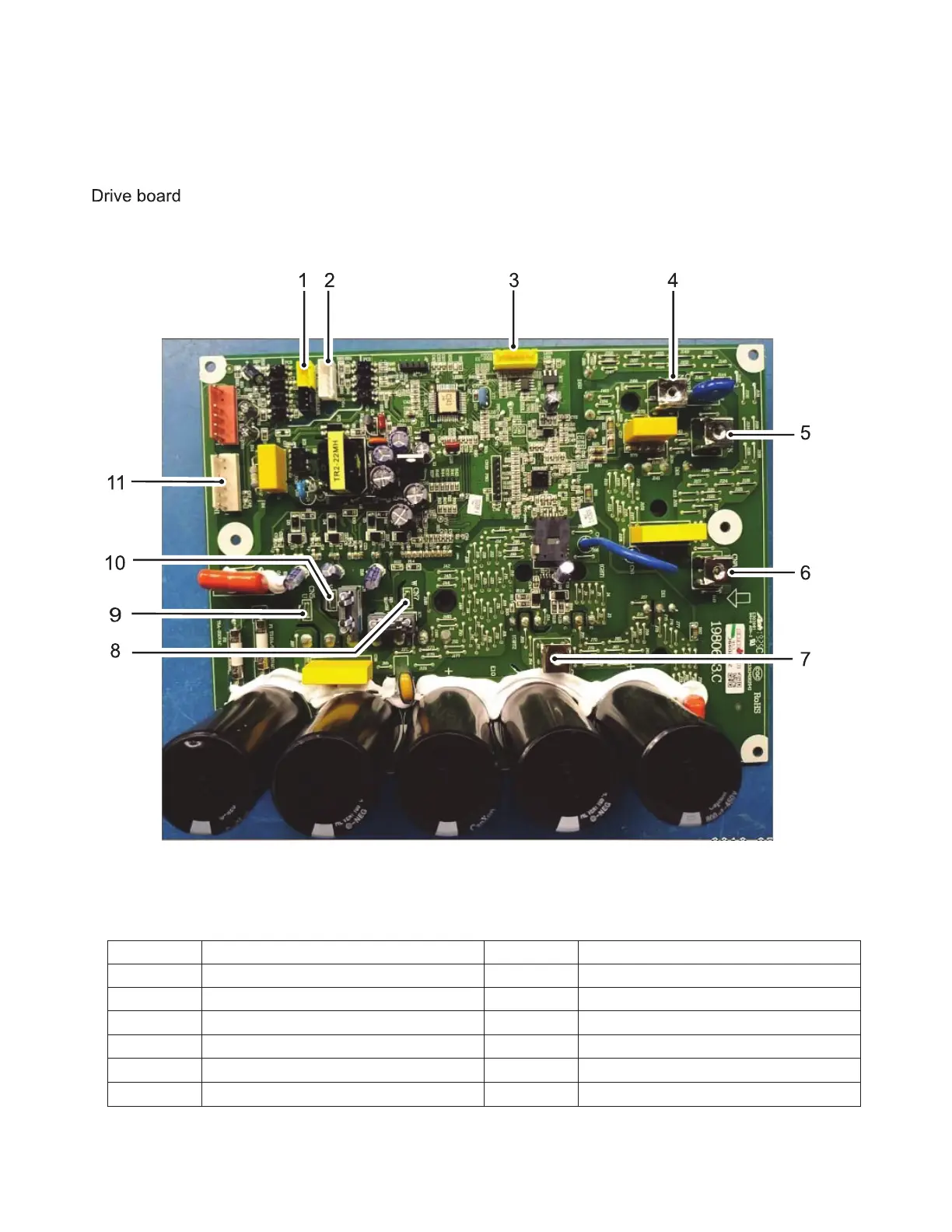

36k/ 42k Outdoor Drive Printed Circuit Board
NO. Description NO. Description
1 7 DC Fan Signal Reactor L2
2 IPM-SI 8 Compressor W
3 EE 9
Compressor U
4 NIN 10 Compressor V
5 LIN 11 Driver
6 Reactor L1
