Friedrich FPHMR36A3A Service Manual

129 PB
COMPONENTS TESTING

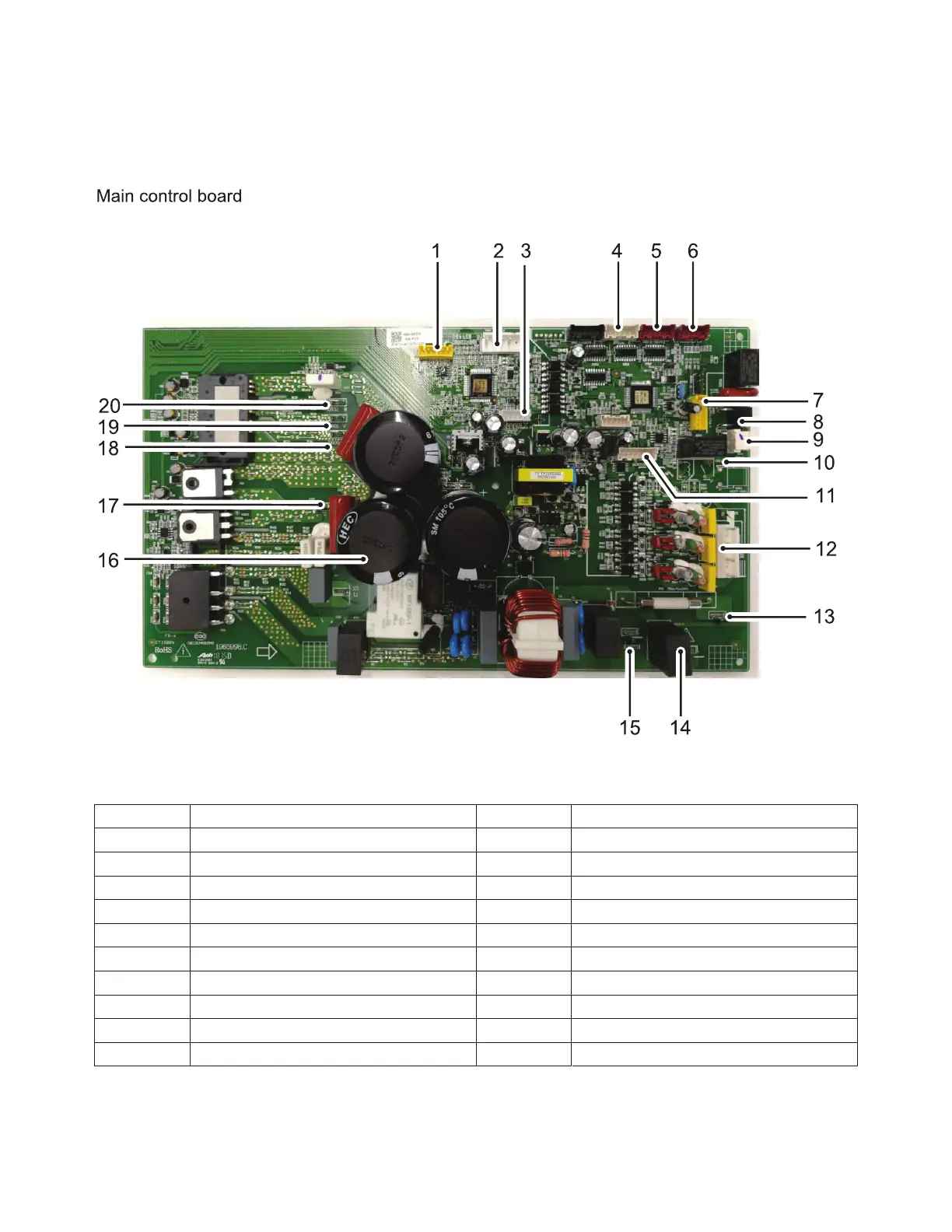

18k Outdoor Main Printed Circuit Boards
NO. Description NO. Description
1 11 Driver EE Data Socket Sensor Signal from Sensor Board
2 DC Motor 12
3
Communication Signal to Indoor
13 Only for developer AC Power Lin
4 14 Electronic Expansion Valve B
AC Power Nin
5 15
Earth Electronic Expansion Valve A
6 For developer 16 Reactor L1
7 17 Main EE data socket Reactor L2
8 18 4-way Valve Compressor U
9 19Electric Heating Belt Compressor V
10 Base Heater 20
Compressor W
