12
C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)

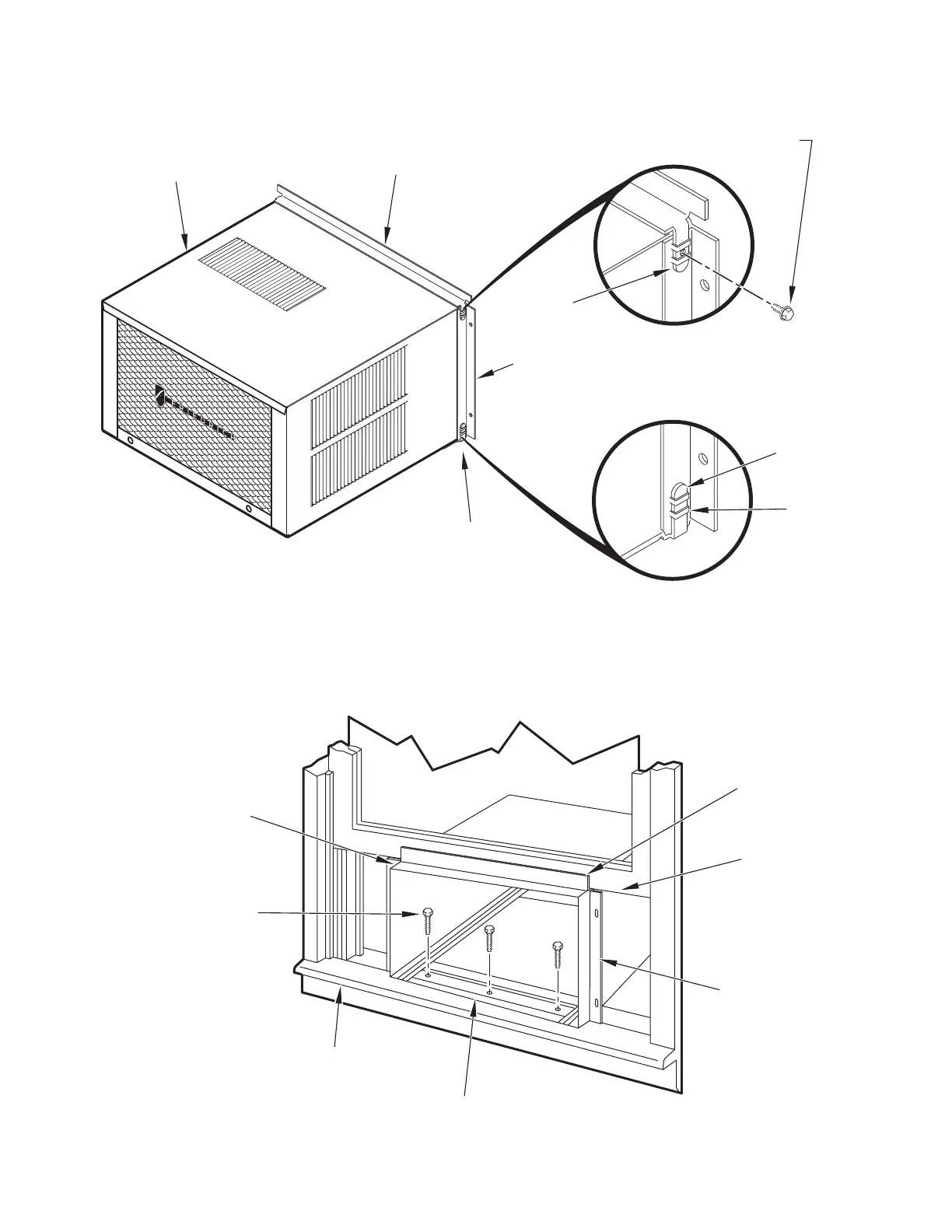

Figure C.4.4
Figure C.4.5
CABINET
TOP ANGLE (ITEM 5)
#8 x
3
/8″ LONG SCREW
(ITEM 7) 2 REQUIRED
TAB
SIDE ANGLE
(ITEM 6)
2 REQUIRED
SILL PLATE
TAB
Detail 1
LOOP
TAB
Detail 2
CENTER
CABINET
IN WINDOW
SIDE TO SIDE
DRILL (3)
5
/32″ DIA.
PILOT HOLES AND
INSTALL (3) #12 x 2″
LONG SCREWS
(ITEM 4)
WINDOW SILL
LOCATE SILL PLATE GUIDE CHANNEL
JUST BACK OF WINDOW SILL
SIDE ANGLE
(ITEM 6)
PULL WINDOW
SASH DOWN
BEHIND TOP
ANGLE
TOP ANGLE
(ITEM 5)
