C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)

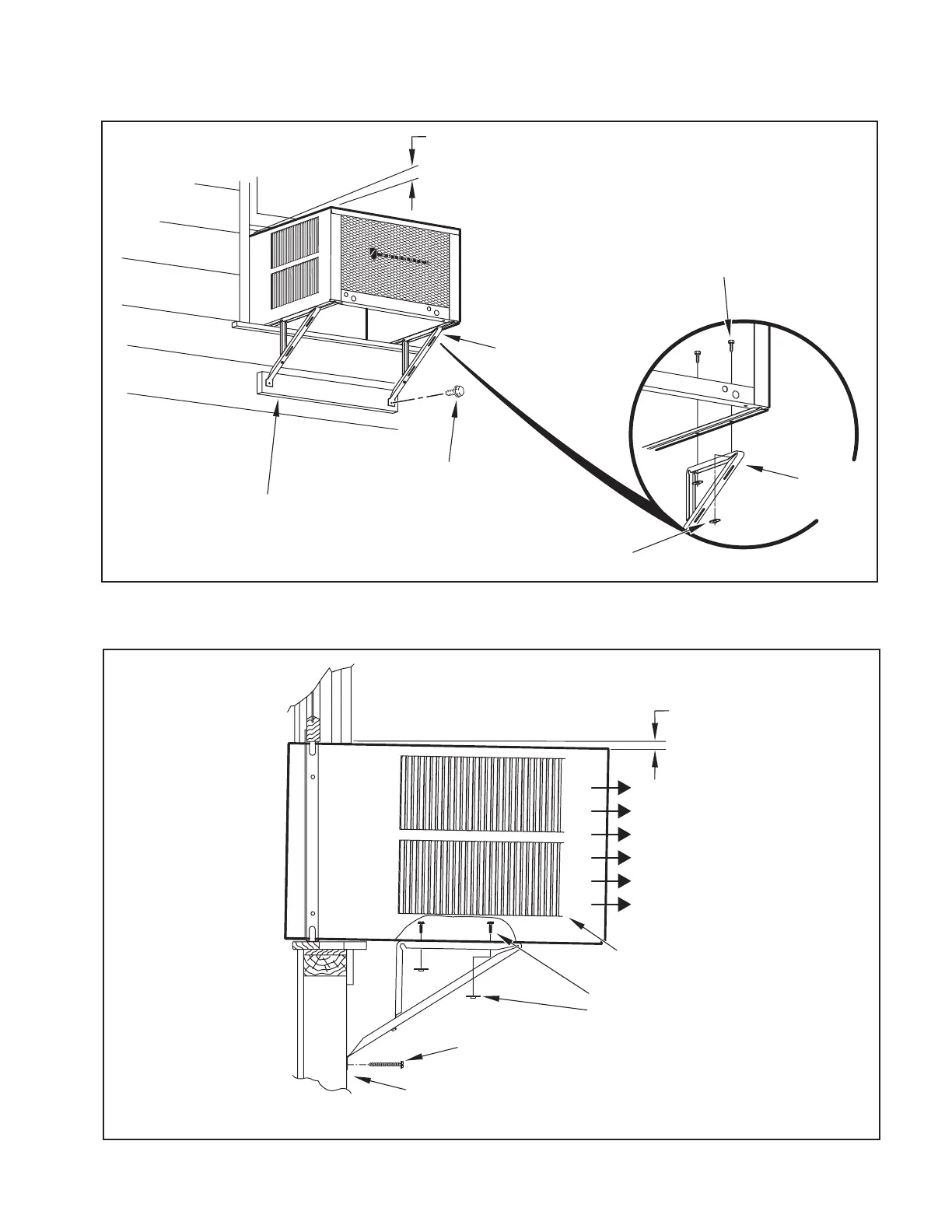

Figure C.4.6
Figure C.4.7
3
/8″ SLOPE DOWN
#10-24 x 1″ HEX HEAD
SCREW (ITEM 2)
SUPPORT
BRACKET
(ITEM 1)
10-24 x FLAT WELD
NUT (ITEM 3)
SUPPORT BRACKET
(ITEM 1)
#12 x 2″ SCREW
(ITEM 4)
SPACER SHOULD BE USED BETWEEN
WALL AND BRACKET WHEN INSTALLED
ON ALUMINUM OR VINYL SIDING.
3
/8″ SLOPE DOWN
CONDENSER
AIR OUTLET
CONDENSER
AIR INLETS
#10-24 SCREW
#10-24 FLAT WELD NUT
#12 x 2″ SHEET METAL
SCREW (ITEM 4)
SPACER SHOULD BE USED BETWEEN
WALL AND BRACKET WHEN INSTALLED
ON ALUMINUM OR VINYL SIDING.
