Friedrich KCS12 - Page 14

14
C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)

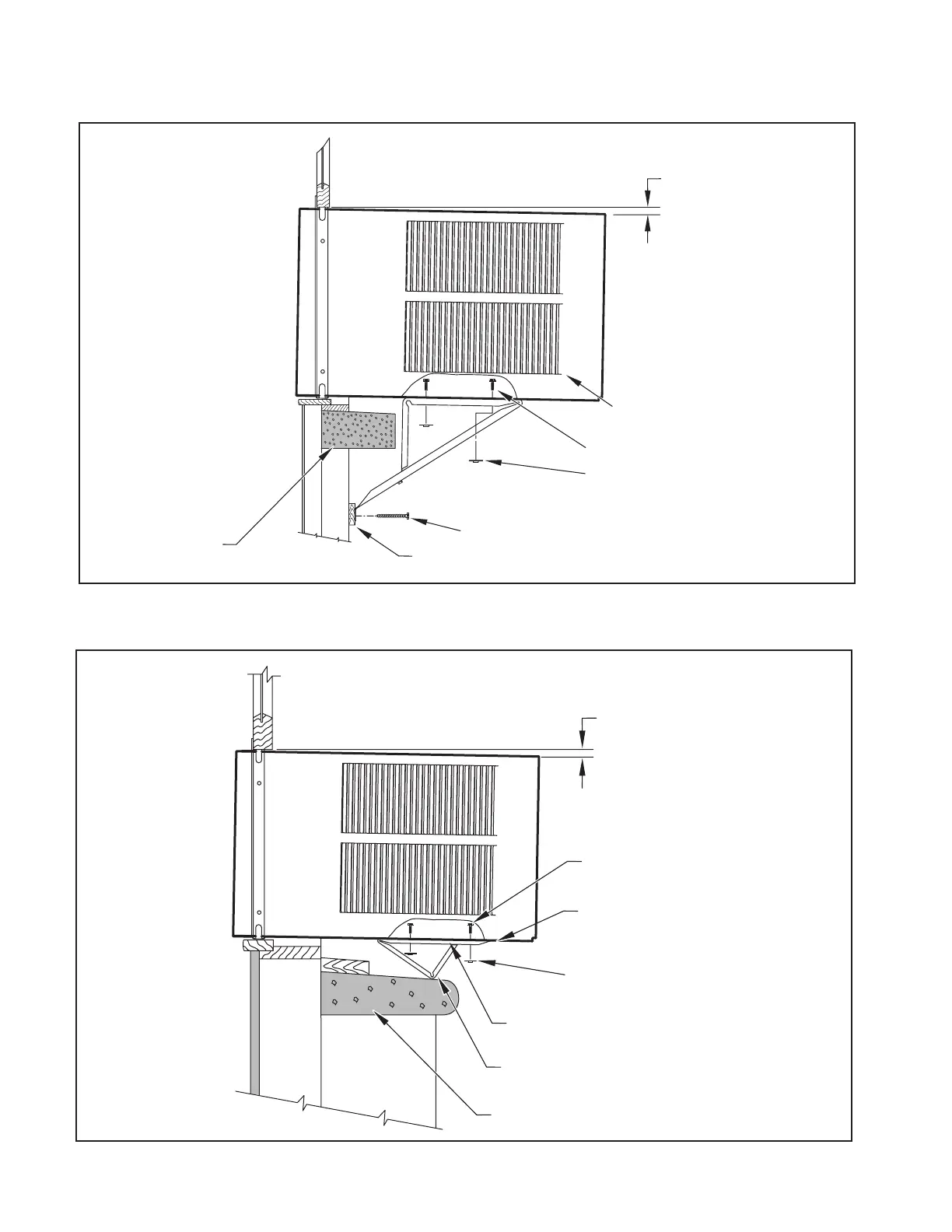

Figure C.4.8
Figure C.4.9
FOR LEDGES
3
/8″ SLOPE DOWN
CONDENSER
AIR INLETS
#10-24 SCREW
#10-24 FLAT WELD NUT
#12 x 2″ SHEET METAL
SCREW (ITEM 4)
STONE LEDGE
SPACER
ALTERNATE METHOD A
3
/8″ SLOPE DOWN
#10-24 SCREW
STRAIGHTEN TAB TO LAY FLAT
ALONG THE BOTTOM RAIL OF
THE SHELL
#10-24 FLAT WELD NUT
SECURE THE LONGEST SIDE OF
THE BRACKET TO THE SHELL
ADJUST IN OR OUT TO REST
ON THE LEDGE
STONE LEDGE
