15
C. INSTALLATION OF THE UNIT
C.4 Window Installation (Continued)

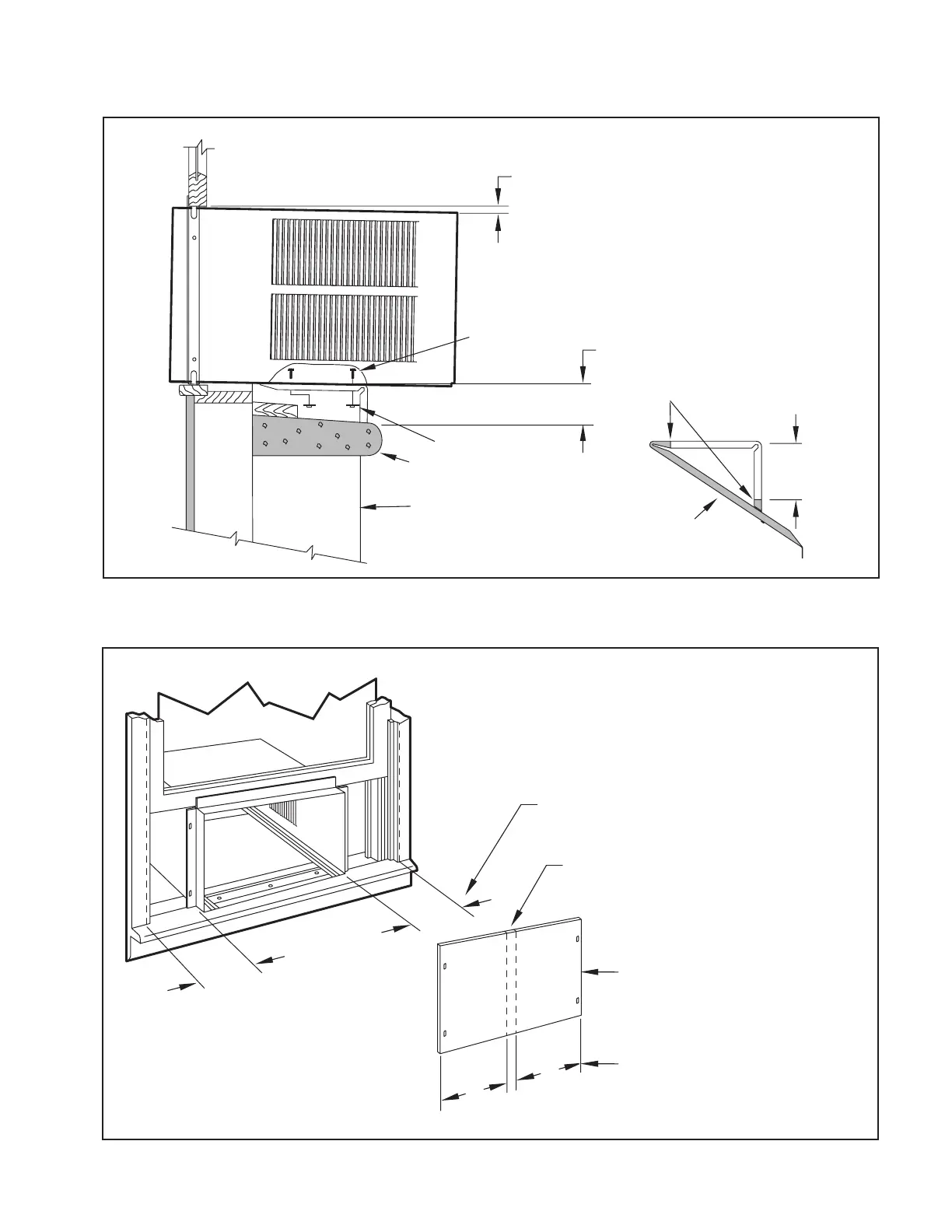

Figure C.4.10
Figure C.4.11
ALTERNATE METHOD B
3
/8″ SLOPE DOWN
#10-24 SCREW
DIMENSION “A”
CUT TO FIT DIMENSION “A”
AND BEND DOWN TO FORM
A VERTICAL LEG.
CUT HERE
#10-24 FLAT WELD NUT
STONE LEDGE
OUTSIDE WALL
DISCARD SHAD-
ED AREA
MEASURE DISTANCE “B” TO INSIDE
OF THE CHANNEL ON EACH SIDE.
CUT HERE AND DISCARD
CENTER WASTE MATERIAL
WINGBOARD
SUBTRACT
1
/8″ FROM DIMENSION “B” AND
MEASURE FROM THE EDGE OF WINGBOARD
(ITEM 8), MARK, SCORE AND CUT WITH
APPROPRIATE CUTTING TOOL.
B
B
B
B
