25
C. INSTALLATION OF THE UNIT
C.5 Thru-the Wall Installation (Cont.)

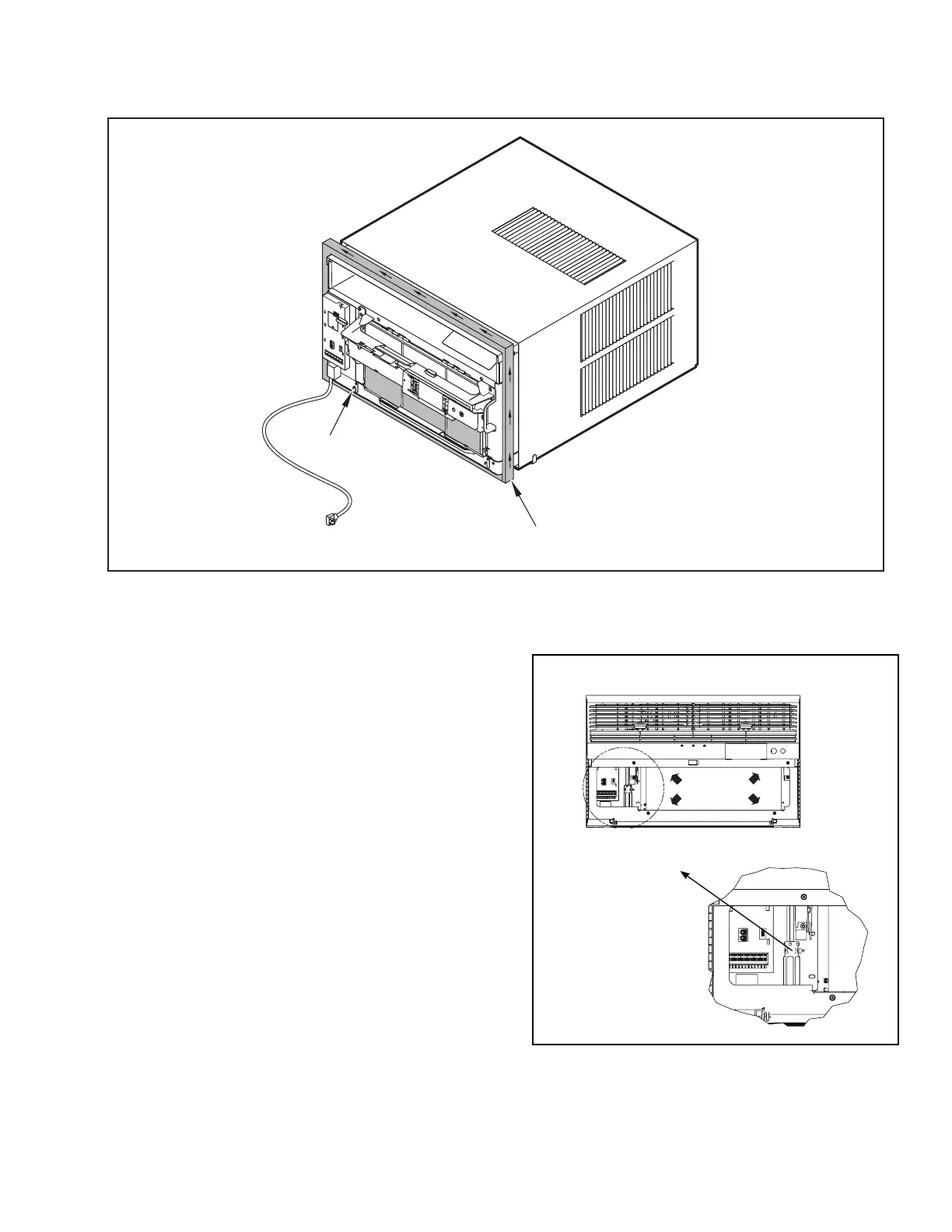

FRR024
POWER CORD CLIP
CHASSIS SEAL GASKET (ITEM 13)
NOTE: WHEN INSTALLING THE CHASSIS
SEAL GASKET, BEGIN AT EITHER BOTTOM
CORNER AND GO UP THE SIDE & ACROSS
THE TOP & DOWN THE OPPOSITE SIDE.
Figure C.5.10
OPTIONAL: The factory assembles the supply cord so that it exits the left side
of the unit at the bottom. At the consumer’s discretion, pull the supply
cord taut through the loops (refer to Cord Routing Change, Section
C.6) and route the cord down.
STEP 13. To attach and prevent damage to the front grille, align the cord notch
over the cord and center the fresh air lever, then align and tighten the
four (4) captive screws as indicated by the arrows in Figure C.5.11
(Preffered tool is a 1/4” nut driver) Before closing the front panel, be
sure the lter is in place. Make sure curtains do not block the side
air intakes.
STEP 14. Refer to the Control Panel Operation section for instructions.
You are now to control the comfort level of the room.
B
Figure C.5.11
