Friedrich MR09C1H Service Manual

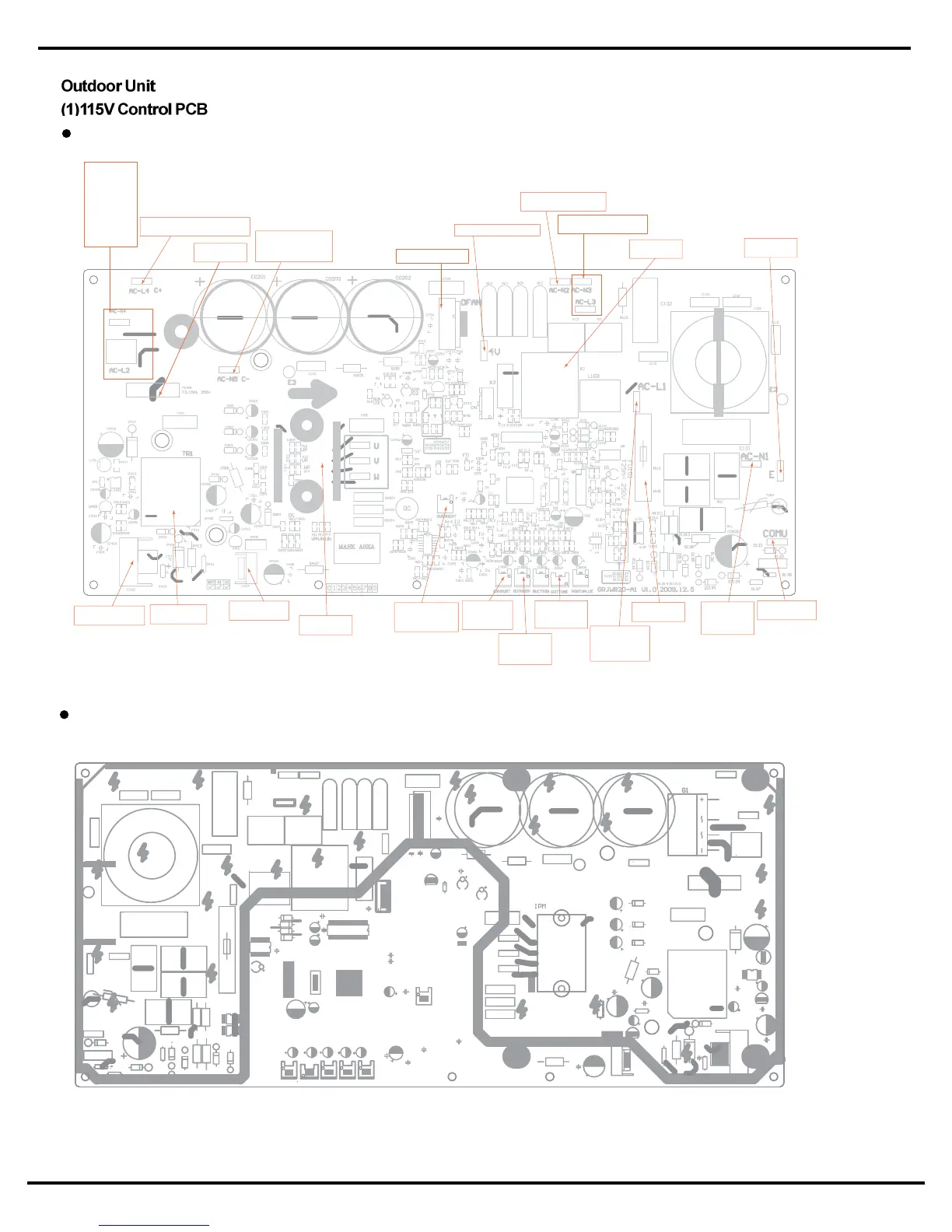

TOP VIEW
BOTTOM VIEW
Schematic Diagram
Terminal of
jump wire,
live wire and
neutral wire,
AC-N4 joint
AC-N3,
AC-L2 joint
AC-L3
External connect high-
capacity positive terminal
Protective
tube
External connect high-
capacity negative
terminal
Terminal of DC fan
Live wire terminal of 4-way
valve
Terminal of jumper
wire, neutral wire
Neutral wire terminal
of 4-way valve
Main relay
Terminal of
ground wire
Slug of on-off
power
High frequency
transformer
Stabilized voltage
block 7805
IPM module
Terminal of
compressor
overload
protector
Discharge
terminal of
compressor
Outdoor
ambient
temperature
sensor
Terminal of
outdoor pipe
temperature
Terminal of power
lead-in wire and
live wire
Protective
tube
Terminal of
communication wire
Terminal of
power lead-in
wire and
neutral wire
