3. Remove electirc box cover
Unscrew the screw fixing the electric box cover to
remove it.

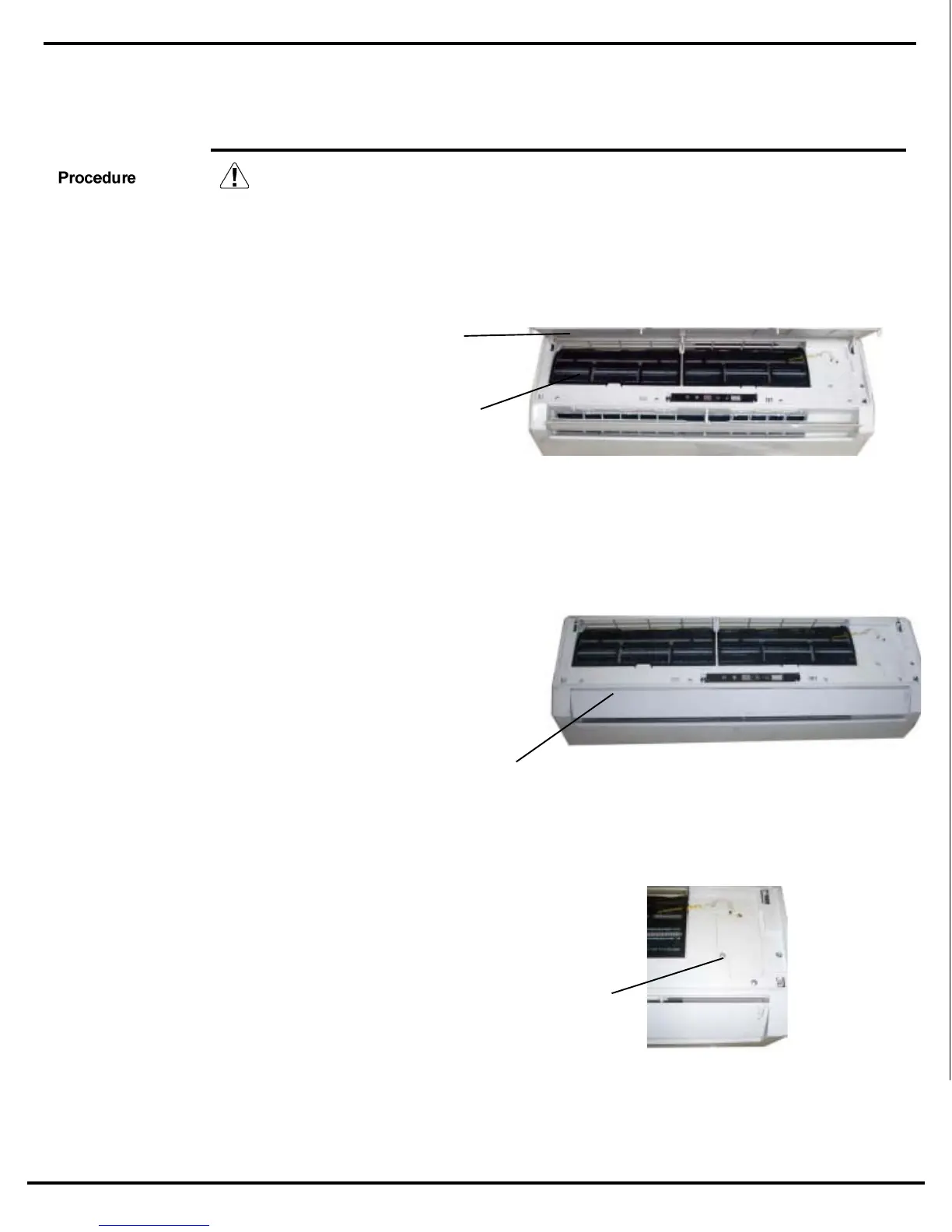

10. Removal Procedure
10.1 Removal Procedure of Indoor Unit
Warning Be sure to wait 10 minutes or more after turning
off all power supplies before disassembling work.
Removal Procedure
1. Remove front panel
Open the front panel and slightly pull it to remove it.
2. Remove guide louver
Push out the shaft sleeve and slightly bend the
guide louver to remove it.
filter
screw
front panel
guide louver
Image shown here is indicative only. Actual product
you receive may differ.
