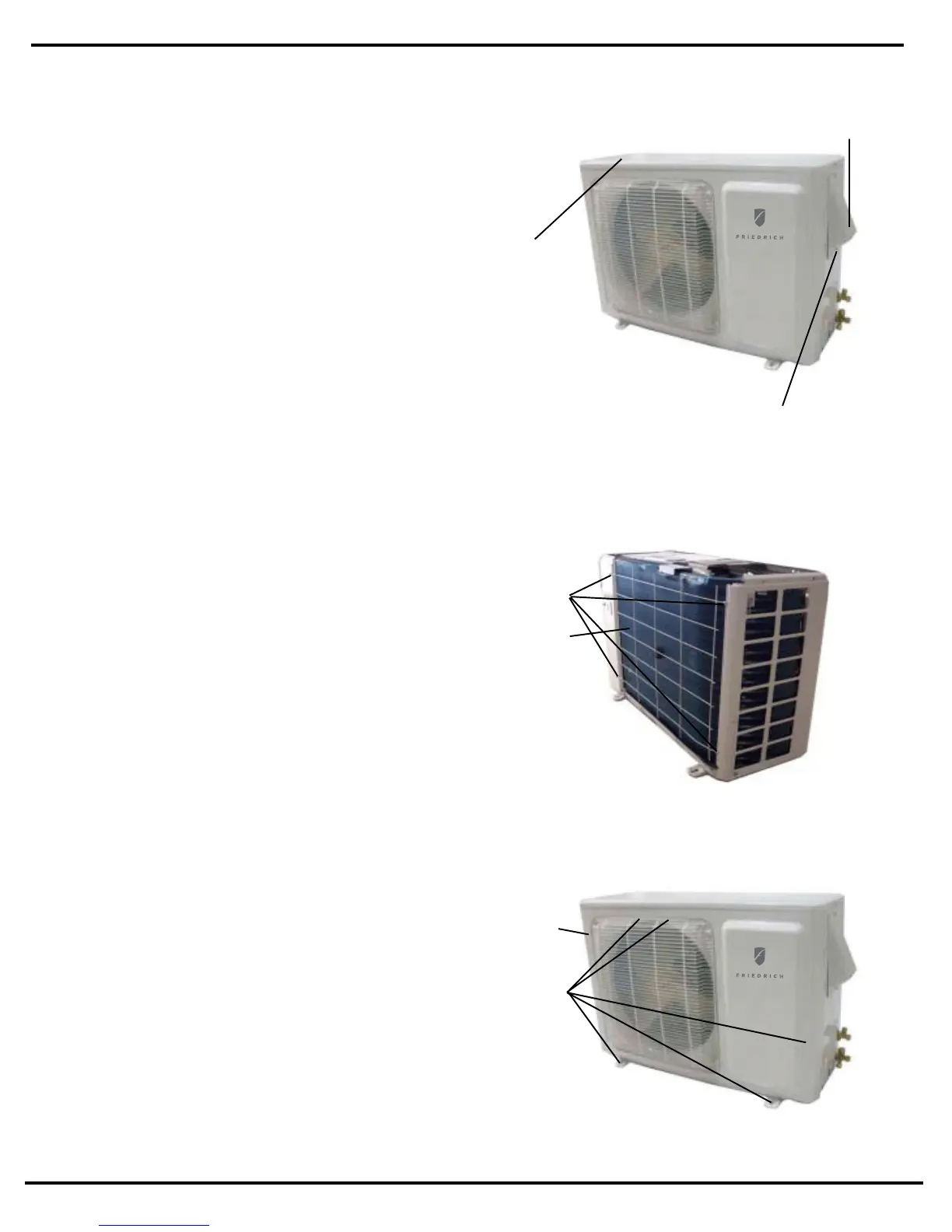

Removal Procedure
top cover
Cable Cross Plate sub-assy
cabinet
screws
front panel
screws
screws
1. Remove top cover and the Cable Cross Plate sub-
assy Unscrew the screw on the handle and pull the
Cable Cross Plate sub-assy forcibly downwards to re-
move it. Unscrew the 3 screws fixing the top cover to
remove it.
2. Remove cabinet
Unscrew the 4 screws fixing the cabinet to remove it.
3. Remove front panel
Unscrew the 5 screws fixing the front panel and
pull out the front panel to remove it.
10.2 Removal Procedure of Outdoor Unit
(If it's 108-230V, there are 6 screws need to be unscrewed
because there are one more power transformer.)
To Next Page
