Friedrich MRM09Y1J Service Manual


Installation and Maintenance
6HUYLFH0DQXDO

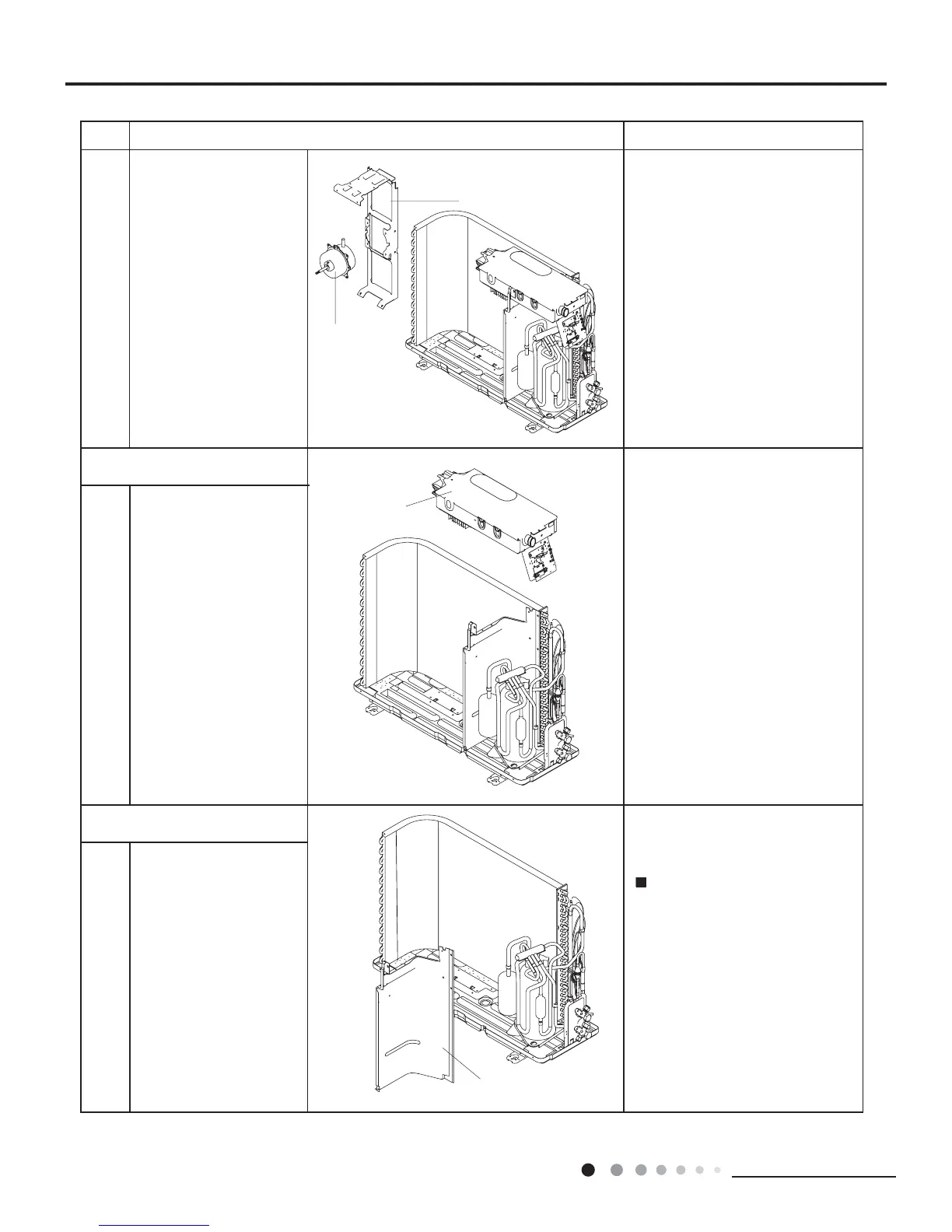

Fan motor
Fan motor fixing frane
Electrical box
4.Remove the electric box.
5.Remove the partition plate.
Partition plate
The partition plate is fixed to
the bottom frame with a hook.
b
a Loosen the 2 screws.
b The partition plate has a
hook on the lower side. Lift
and pull the partition plate
to remove.
Twist off the 4 tapping screws
fixing the motor, pull out the
pin of leading wire of motor
and then remove the motor.
Twist off the 2 tapping screws
on motor support and 1
screws on electric box, pull it
upward and then remote the
motor support.
Twist off the 2 screws fixing
the electric box cover
withscrewdriver, pull it
upwardly and then remove
the electric box cover. Twist
off the screws fixing the
electric box with screwdriver,
loosen the tileline, pull out the
wiring terminal, pull it upward
and then remove the electric
box.
Steps
Procedure
Points
