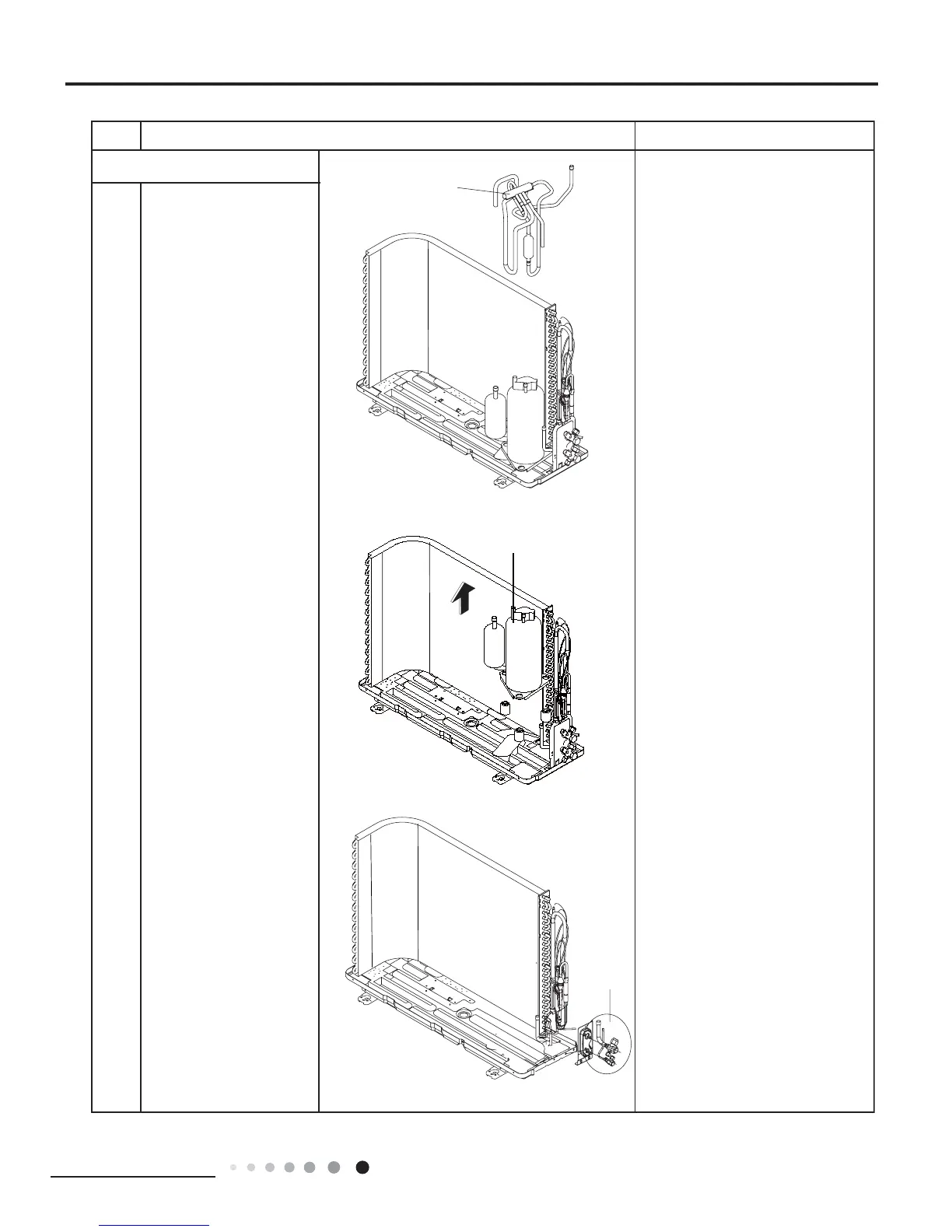

6. Remove compressor
Unsolder the pipeline
connected to the compressor.
(Release all refrigerant before
disassembling the pipeline)
Twist off the 3 foot nuts on
compressor and then remove
the compressor.
Twist off the 2 bolts fixing the
gas valve, unsolder the
soldering joint between gas
valve and air return pipe and
then remove the gas valve.
(note: When unsoldering the
soldering joint, wrap the gas
valve with wet cloth completely
to avoid the damage to valve.)
Twist off the 2 bolts fixing the
liquid valve, unsolder the
soldering joint between liquid
valve and Y-type tube and then
remove the liquid valve.
4-Way valve assy
Compressor
Gas valve
and liquid
valve
