16 _ Wall mounted
10. Installation
Part 2 Product data_Indoor units
MULTI ZONEMULTI ZONE

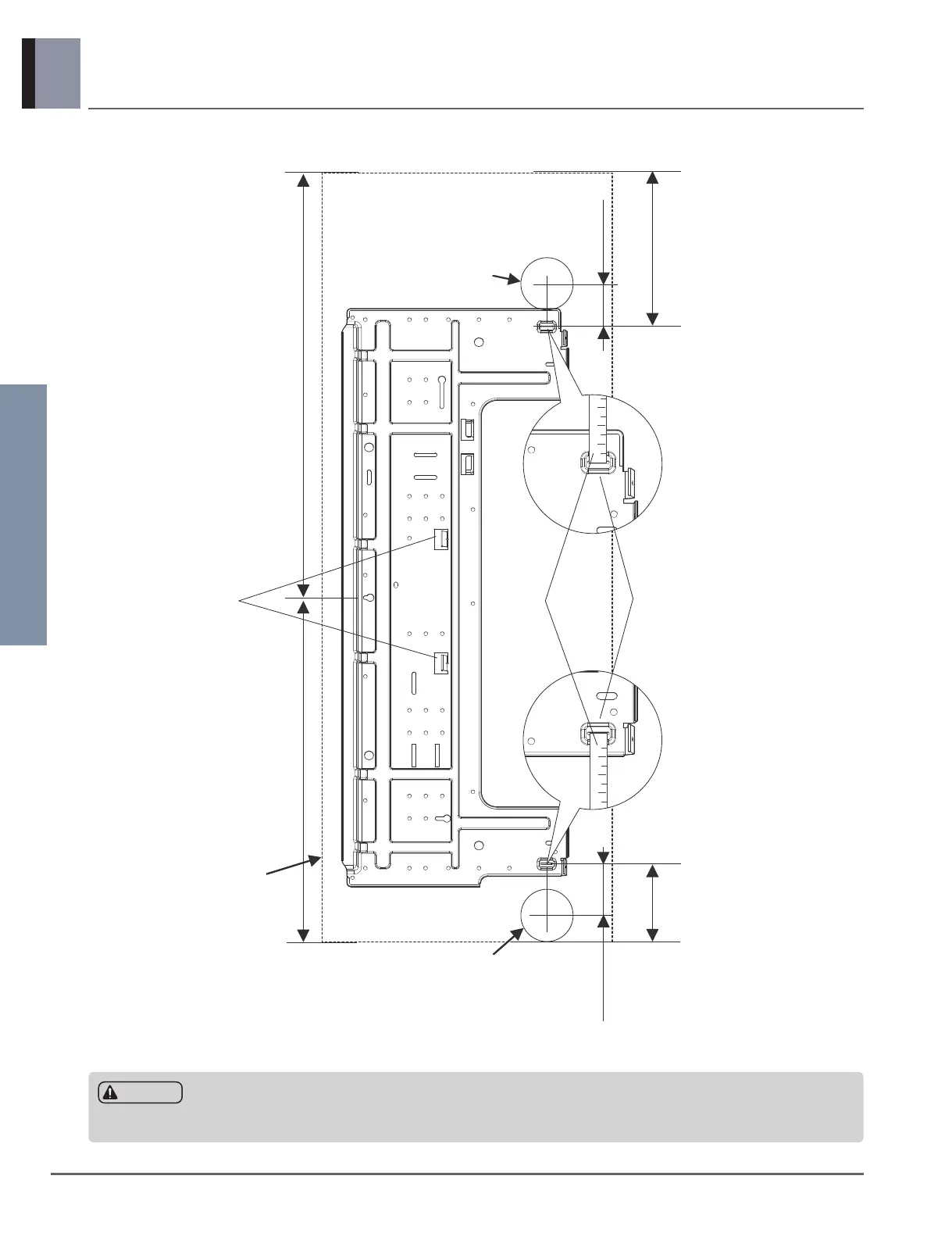

Type 2 : MW18Y3J
Ø70(Ø2-3/4)
Ø70(Ø2-3/4)
69(2 23/32)
56(2 7/32)
Right rear piping
Left rear piping
Installation Plate
Measuring Tape
Measuring Tape Hanger
Place a level on raised tab
Unit Outline
207(8 5/32)
105(4 1/8)
Unit : mm(inch)
460(18 1/8) 570(22 7/16)
• Use only those accessories (Standard or optional) which have designated specilications
CAUTION
