Wrong method
• Following bending type from left to right may cause dam-
age to the tubing.

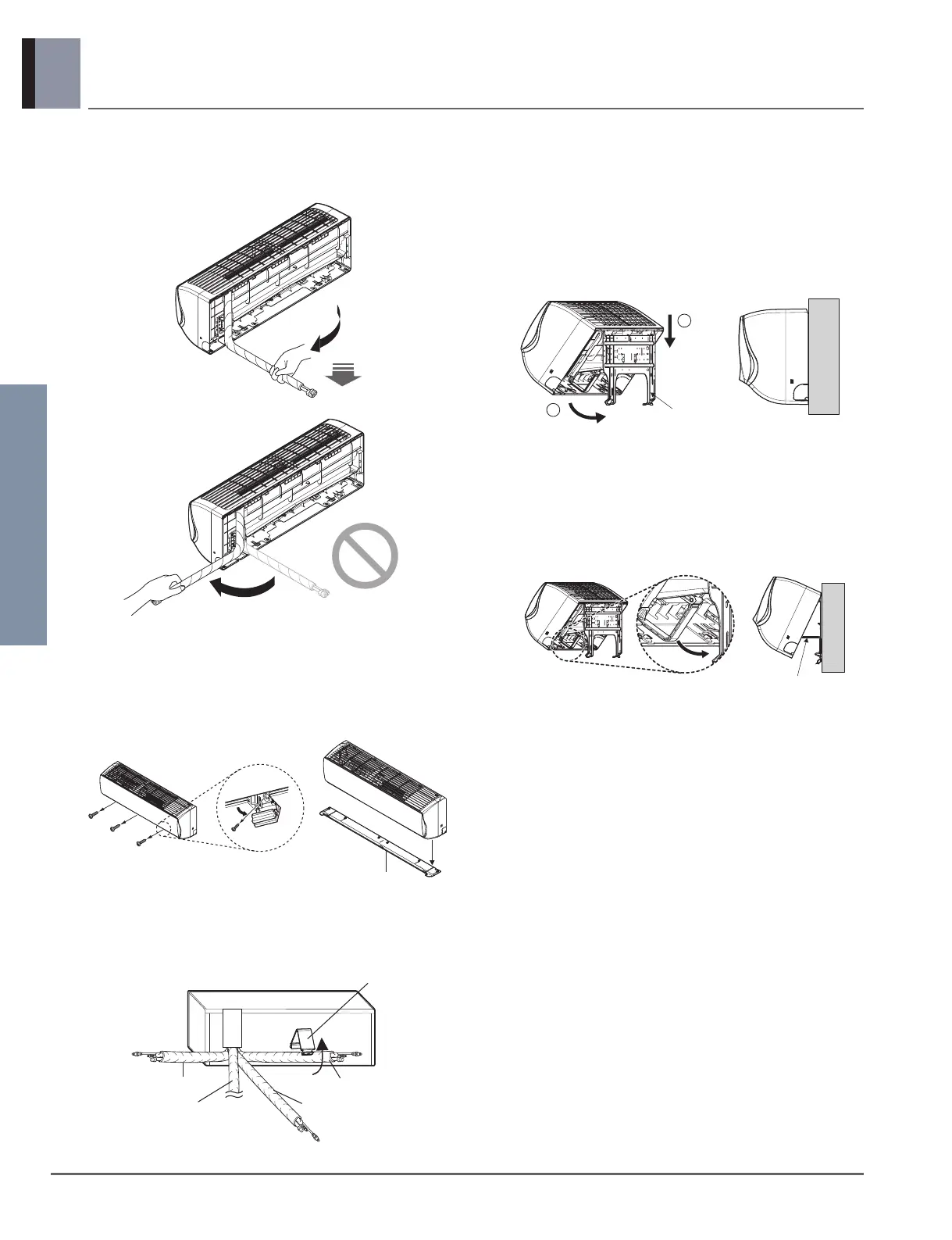

10.5 Connecting the piping
①
Pull the screw cap at the bottom of the indoor unit
②
Remove the chassis cover from the unit by loosing 2
screws
③
Pull back the tubing holder.
④
Remove pipe port cover and positioning the tubing
1) Installation of Indoor Unit
①
Hook the indoor unit onto the upper portion of the instal-
lation plate.( engage the three hooks at the top of the
indoor unit with the upper edge of the installation plate)
Ensure that the hooks are properly seated on the instal-
lation plate by moving it left and right
②
Unlock the tubing holder from the chassis and mount
between the chassis and installation plate in order to
separate the bottom side of the indoor unit from the wall
To Next Page
