FC-302 Data Radio User Manual
3.9 Interfaces
Mainboard interface：

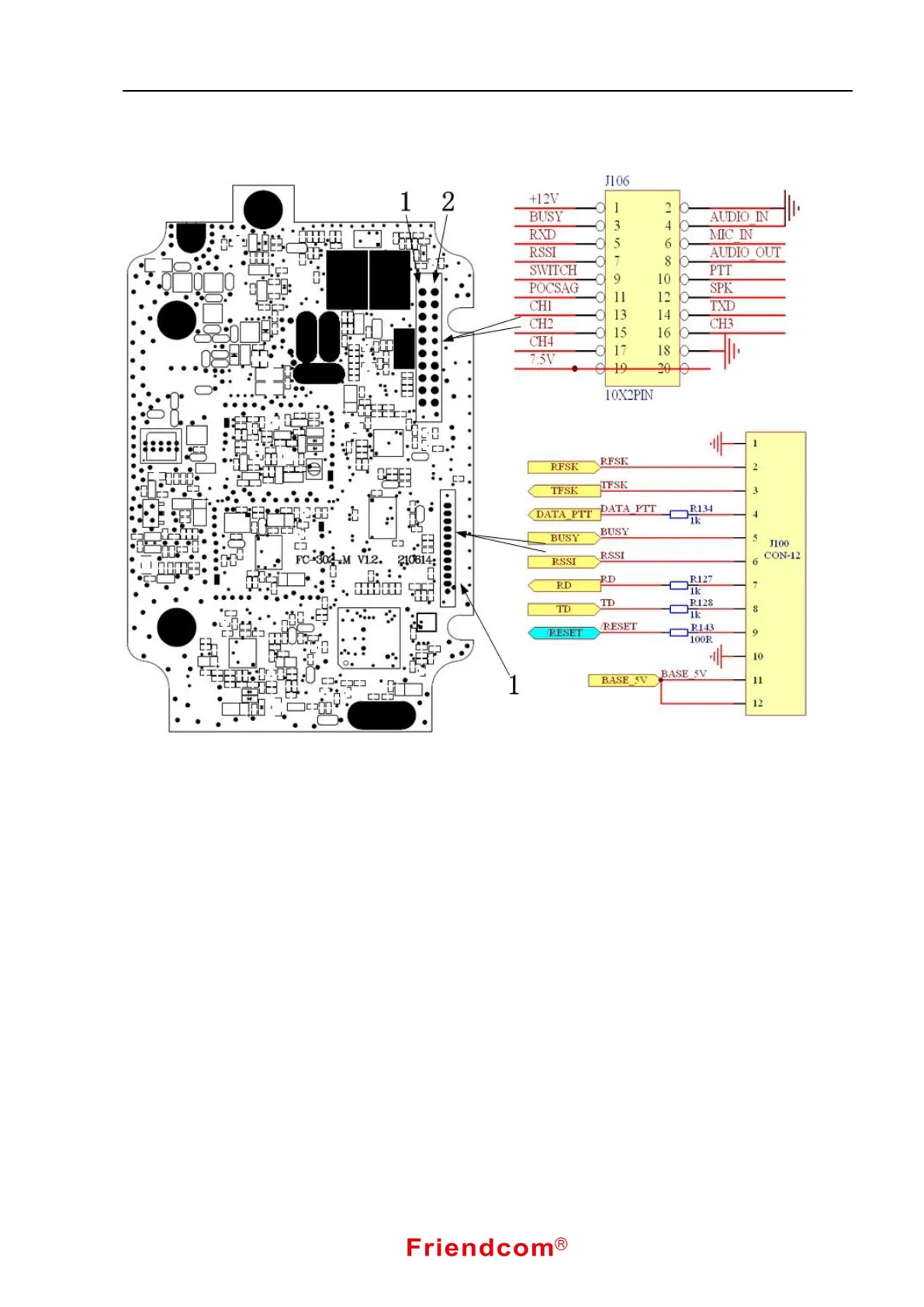

Fig.10 Mainboard Interface Description
There are two external interfaces in mainboard. One is J106 and connected to the Power board,
transferring available I/O signal to the user through the Power. The other is J100 and connected with modem,
customers can develop appropriate modem according to specific requirement.
