FriFri Basic 422 - Business Model

CONTROL AND DISPLAY ELEMENTS
© frifri Aro SA 3-3 OM - 1.0 - 25.10.2004

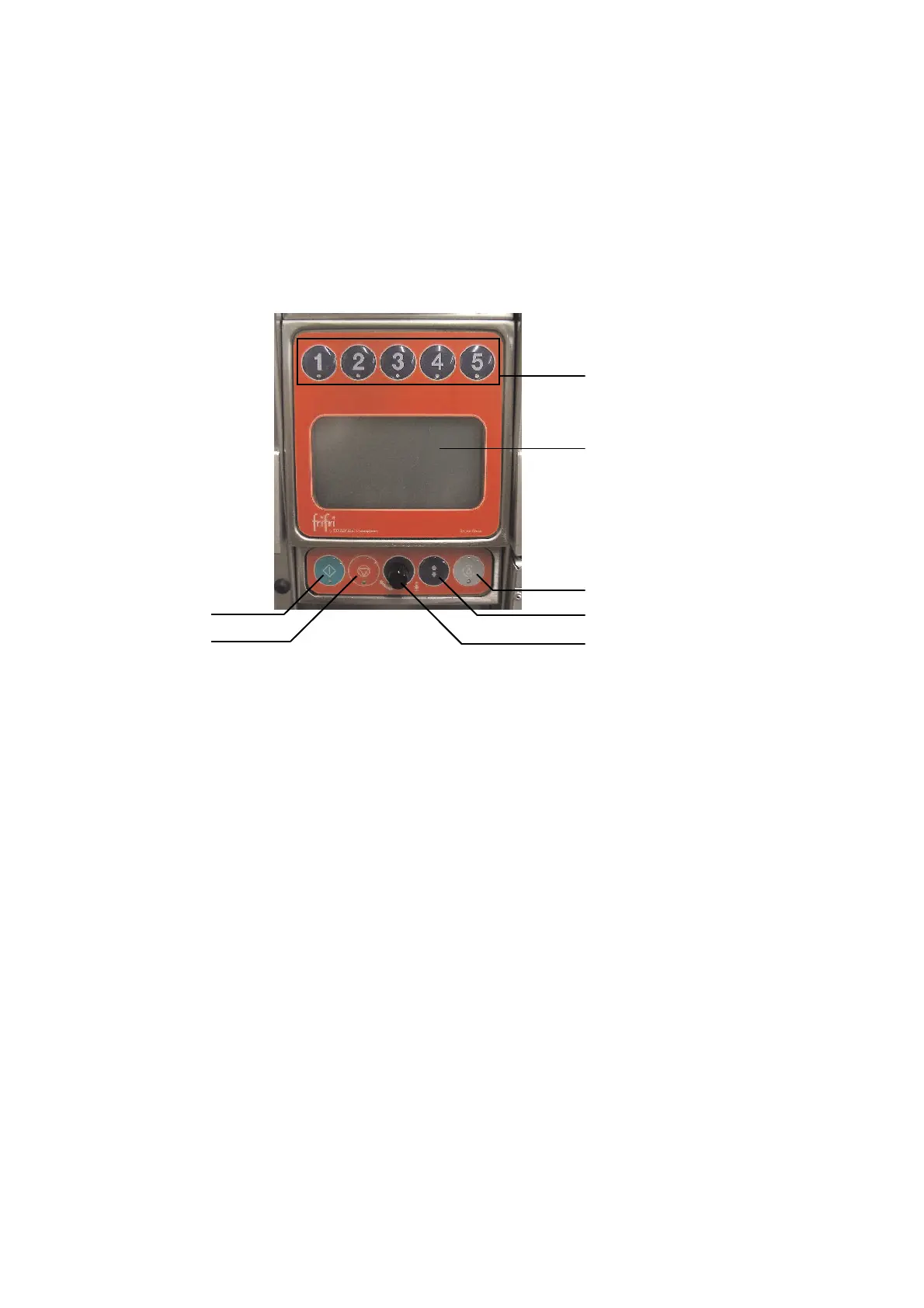

3.1.3 “Business” model
1 Membrane switch: “On/Off” (green LED)
2 Membrane switch: “Safety thermostat” (red LED)
3 Membrane switch: “Programs 1 to 5” (start frying cycle)
4 Display (alphanumeric display, pictograms)
5 Membrane switch: “Frying oil pump” (green LED)
6 Membrane switch: “Frying basket lift” (green LED)
7 Rotary switch: “Programming”
3
4
1
2
5
6
7
