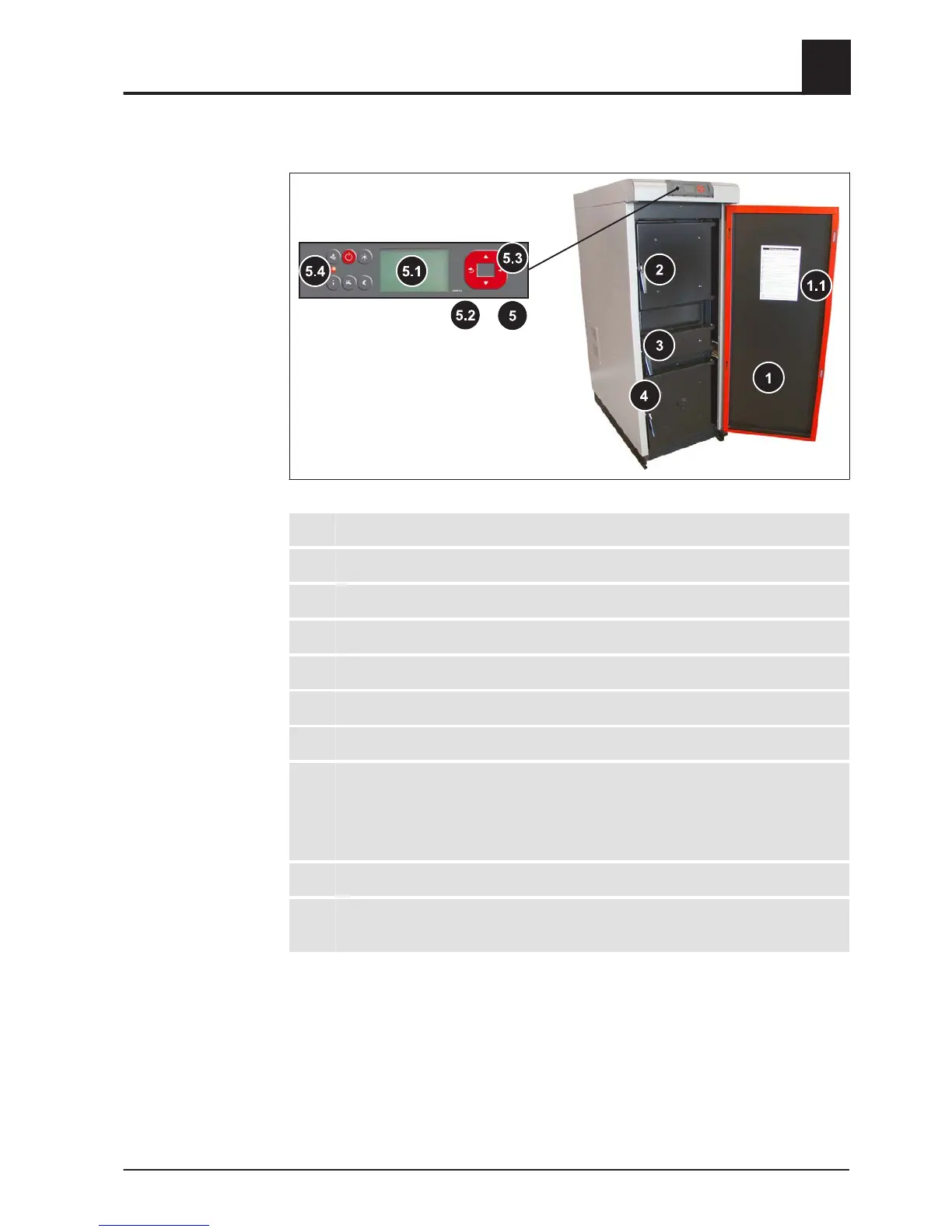

1.1 S4 Turbo Product Overview
1 Insulated door
1.1 Maintenance overview
2 Fuel loading door
3 Pre-heating chamber door
4 Combustion chamber door with inspection glass
5 Control panel of the Lambdatronic S3200
5.1 Visual display showing operating statuses and parameters
5.2 Status LED (operating status):
- GREEN constant: BOILER ACTIVE (heating up/heating)
- GREEN flashing (interval: 5 sec. OFF, 1 sec ON): OFF
- ORANGE flashing: WARNING
- RED flashing: FAULT
5.3 Navigation keys to move around in the menus and to change the parameter values
5.4 Function keys to call up individual boiler functions directly
NOTICE! For key layout see control unit operating instructions
General
1
S4 Turbo Product Overview
Operating Instructions S4 Turbo | B0510512_en 5
