3.2 Adjustments
3.2.1 Preselecting of Strap Tension and Tensioning Speed
Do not adjust the tensioning force too high.
If the tensioning force is higher than the tensioning strength of the strap, the strap
will tear while tensioning.

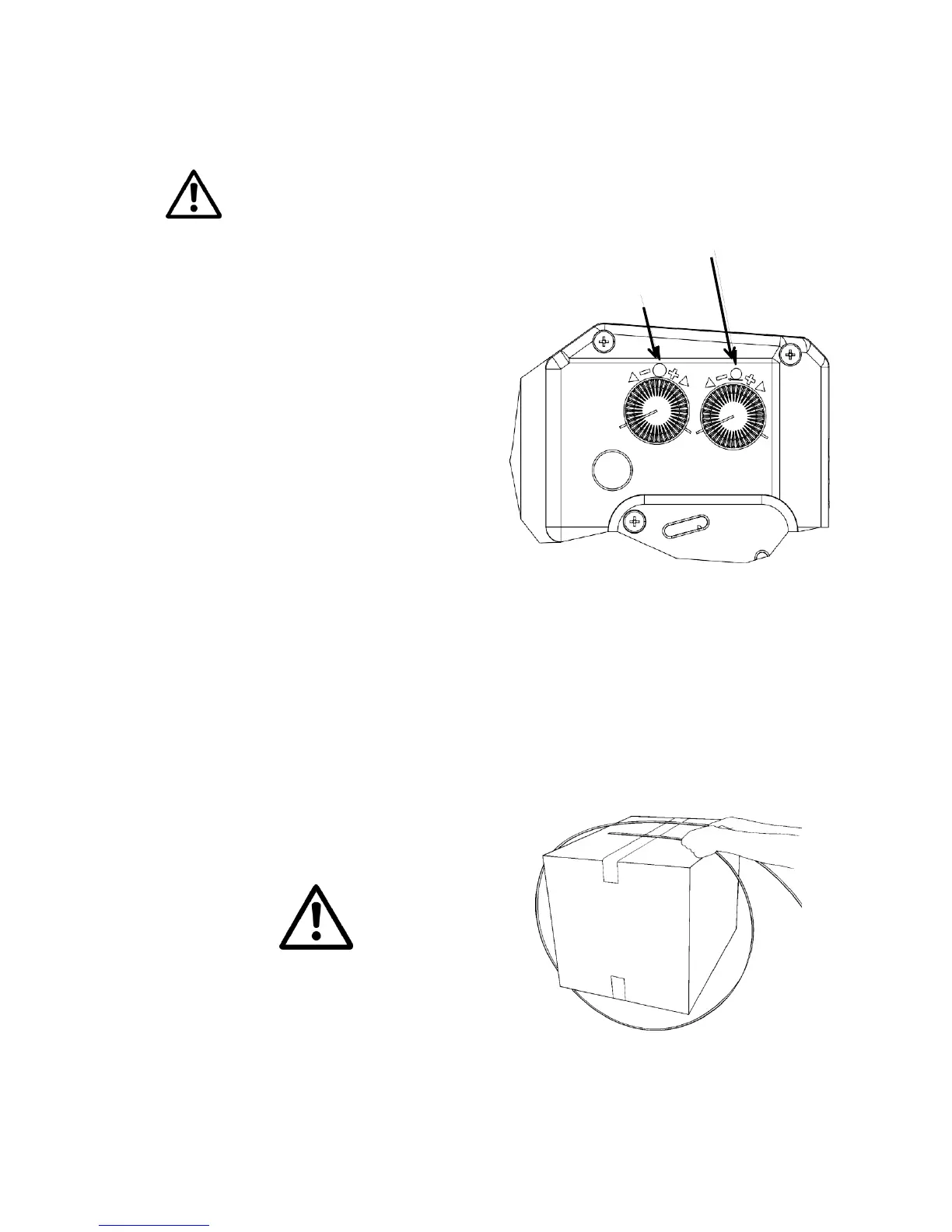

Tensioning force and tensioning speed
can be preselected with the right adjusting
knob.
Turning clockwise increases, turning
counter clockwise decreases the
tensioning force and the tensioning speed
respectively.
The tensioning force on the minimum
setting is 650N and it is increased on the
maximum setting to 3000N.
The tensioning speed on the minimum
setting is 160mm/s, it is increasing linear
up to 230mm/s on the maximum setting.
3.2.2 Adjusting the Welding Time
Depending on the size and quality of the strap,
different welding times are required.
The welding time can be adjusted at the lower
adjusting knob.
Turning clockwise increases, turning counter
clockwise decreases the welding time.
3.3 Feeding the Strap Around the Package
The strapping is fed around the package as
illustrated.
Warning! The plastic strap which will be welded
must be free from oil, grease and other dirt.
Dirty plastic straps can’t be welded correct.
