Fromm FS360 Series - Machine Dimensions and Diagram; Technical Dimensions and Illustration

FROMM SERVICE MANUAL FS360_EN01 Version00.doc
For further updates, see our website www.fromm-stretch.com and Login!
It is forbidden to duplicate this manual or parts thereof or any other form without the author’s authorisation © 2018
10

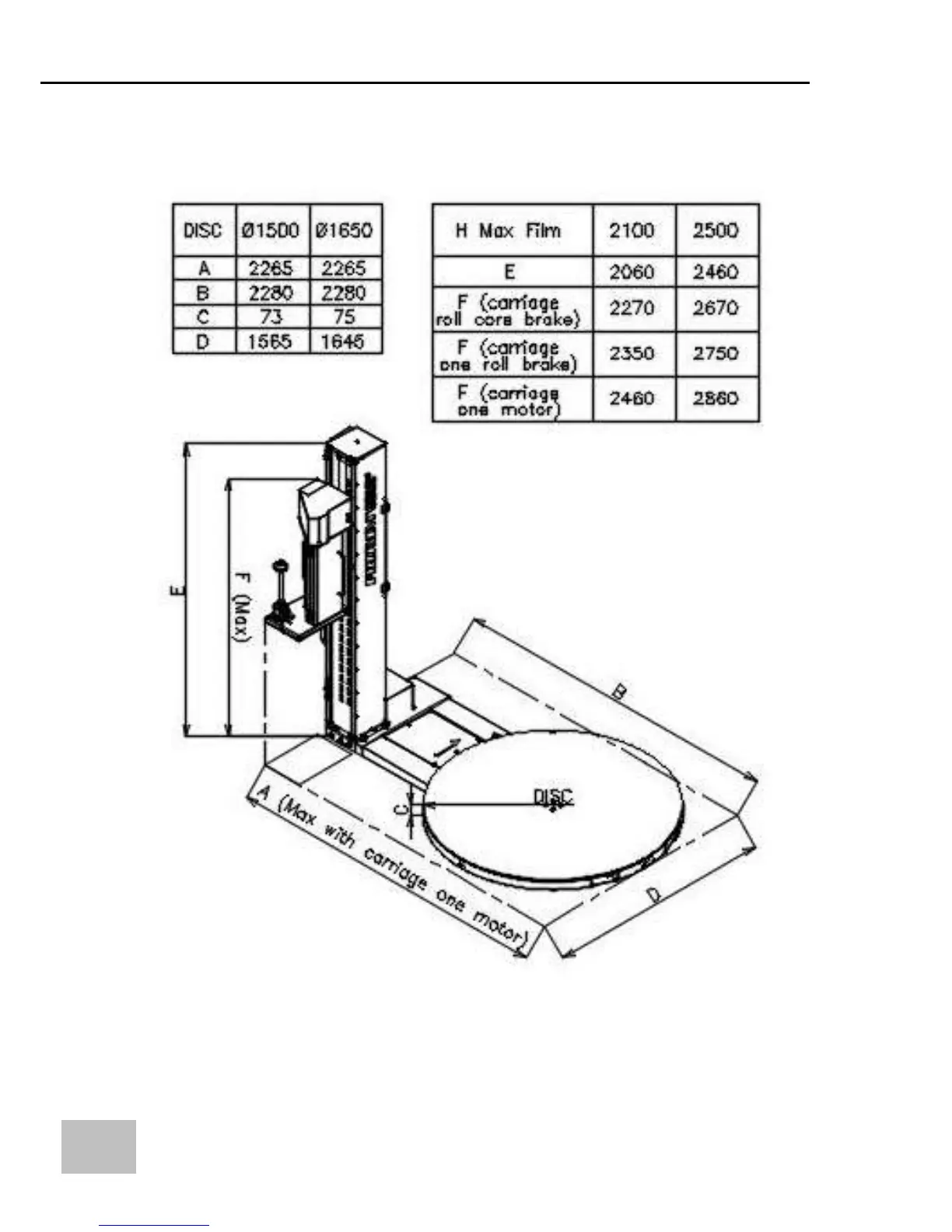

DIMENSIONS / DIAGRAM
Refer to the following diagram for the dimensions:
