Fromm FS360 Series - Column Positioning; Repositioning and Fastening Column

SERVICE MANUAL FS360_EN01 Version00.doc FROMM
For further updates, see our website www.fromm-stretch.com and Login!
It is forbidden to duplicate this manual or parts thereof or any other form without the author’s authorisation © 2018
23
INSTALLATION INSTRUCTIONS
CAUTION!
All operations indicated can be performed exclusively under the supervision of the manufacturer’s
trained personnel or of its agents!
THAT INDICATED IS VALID IF APPLIED!
For shipping requirements, the column and the carriage (Fig. 1) are usually shipped in the
following way: the column in horizontal position and the carriage assembled on the column.
Consequently, the column and the carriage must be repositioned during installation of the
machine.
Column positioning:
- After having positioned the machine, lift the column (possibly with the aid of a forklift truck or
bridge crane and using the eyelet above the column) by rotating it around the hubs (Fig.2) that
have been specially adjusted, then position the column perpendicular to the turntable;
- Fasten the column upright, with respect to the relative surface, using the provided screws and
tighten them (Fig.3/4/5/6);

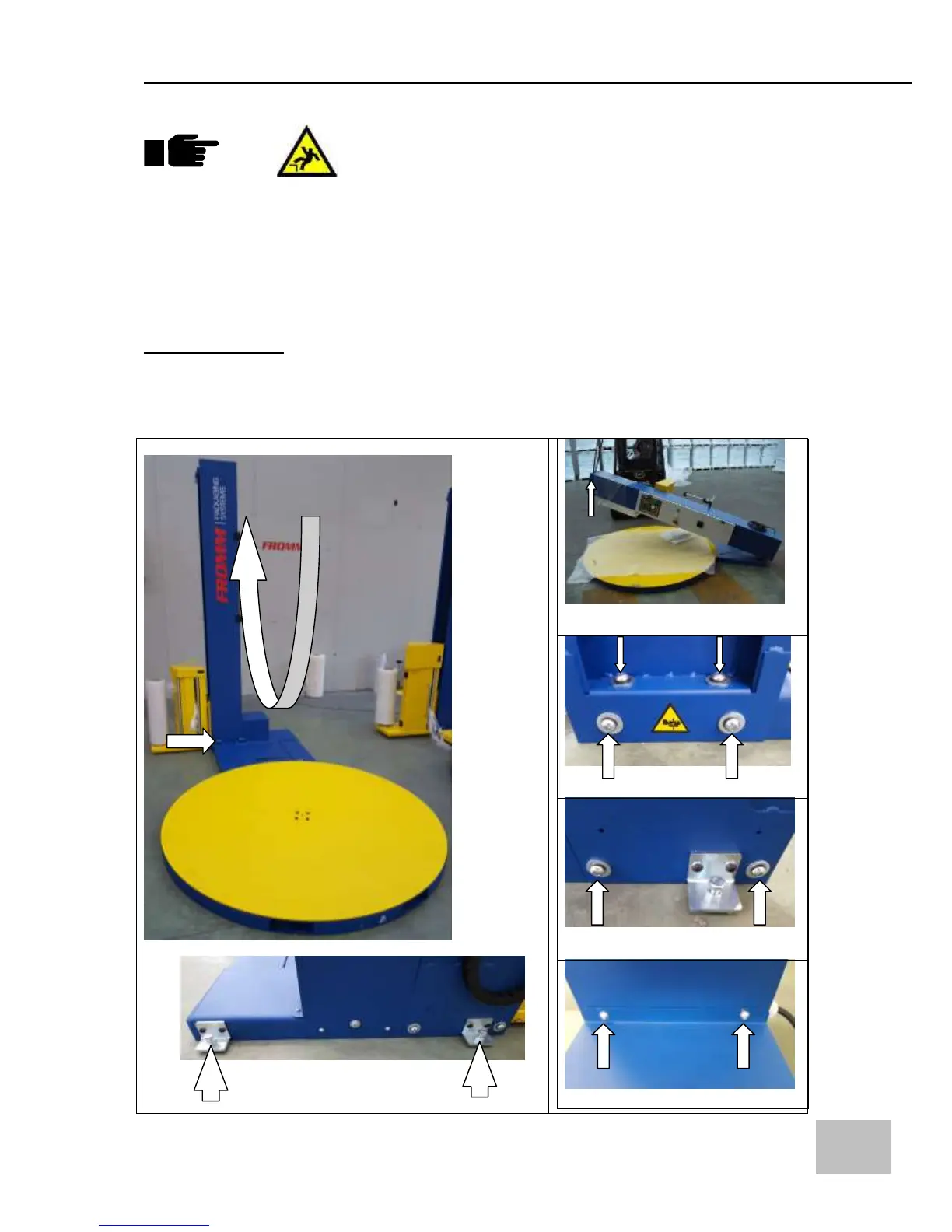

Photo of FS360 standard wrapping machine (Fig. 1):
Fig.6 Adjustment (on the floor)
Fig.2 (Example FS machine)
Fig.3
Fig.4
Fig.5
