Fromm P331 M - Page 45

5-14
P331 A_A mane.fm

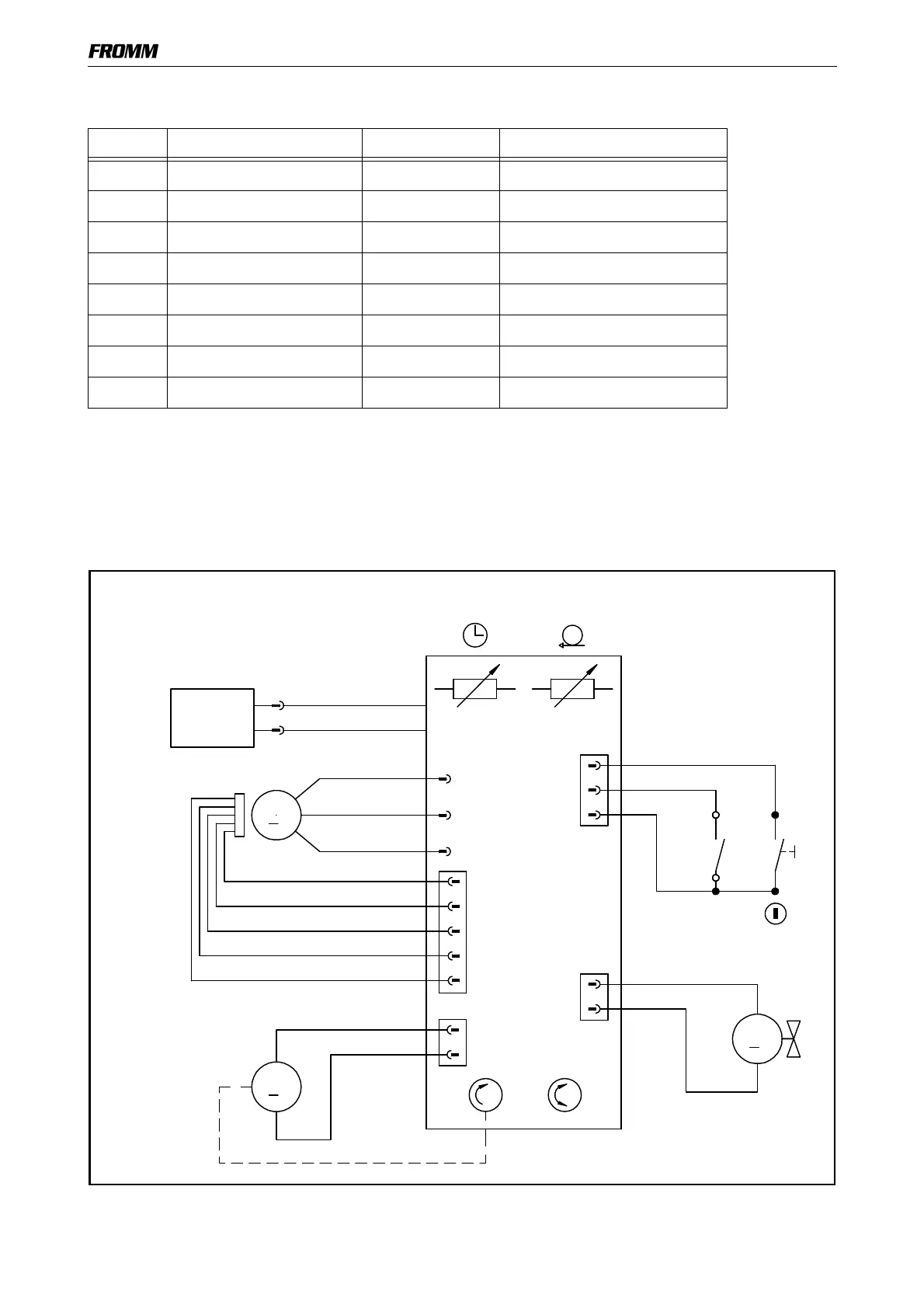

7 CHART OF TYPES P331 A/A
8 ELECTRIC SCHEMATIC ELS.1085
Item No. Model Strap width Strap thickness
43.0275 P331/19/0.80-1.19/7.0/A 19.0 mm / 3/4" 0.80 - 1.19 mm / .031" - .046"
43.0277 P331/19/1.20-1.53/7.0/A 19.0 mm / 3/4" 1.20 - 1.53 mm / .047" - .060"
43.0283 P331/25/0.60-0.79/7.0/A 25.0 mm / 1" 0.60 - 0.79 mm / .023" - .030"
43.0285 P331/25/0.80-1.19/7.0/A 25.0 mm / 1" 0.80 - 1.19 mm / .031" - .046"
43.0287 P331/25/1.20-1.35/7.0/A 25.0 mm / 1" 1.20 - 1.35 mm / .047" - .053"
43.0293 P331/32/0.60-0.79/7.0/A 32.0 mm / 1 1/4" 0.60 - 0.79 mm / .023" - .030"
43.0295 P331/32/0.80-1.19/7.0/A 32.0 mm / 1 1/4" 0.80 - 1.19 mm / .031" - .046"
43.0297 P331/32/1.20-1.35/7.0/A 32.0 mm / 1 1/4" 1.20 - 1.35 mm / .047" - .053"
36VDC
-
blackblack
-
+
red
2
1
UB
M3
2
3
1
red
blue
1
2
(-)
(+)
M2
U
V
W
yellow
violett
brown
Hall3
Hall2
Hall1
GND
+5V
5
4
3
2
1
M1
2
1black
red
(+)
(-)
A
A
Auto / Auto
1(C)
4(N0)
