13

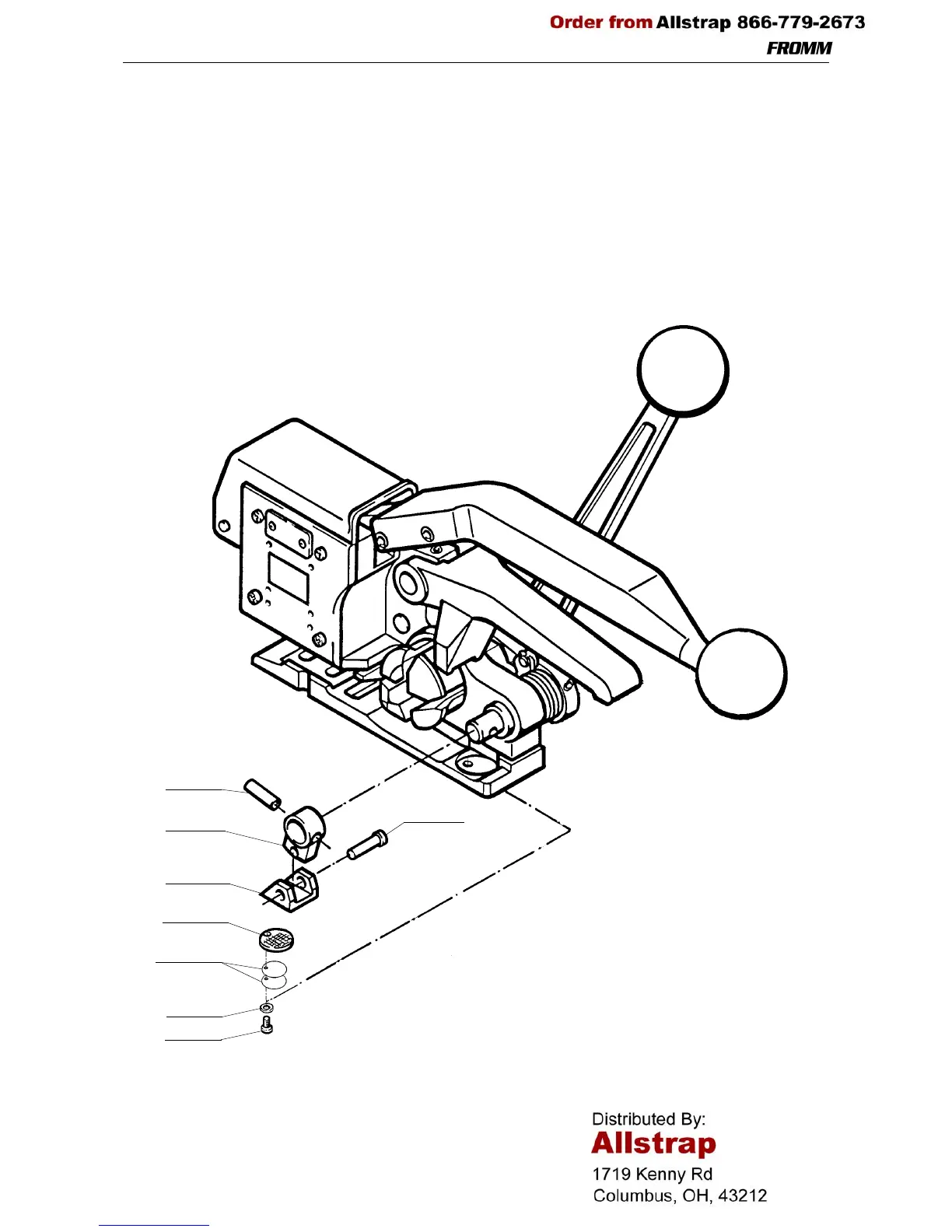

7.2 Exchange of gripper and gripping jaw
- Drive out the spirally rolled pin N2.2806 using a split pin driver.
- Remove the clamping lever P40.2520 with the pin P40.2522 and the gripping jaw P40.2521.
- Screw off and exchange the gripper P40.2053.
- Reassemble in the opposite order.
*Depending on the strap thickness 2, 1 or no shim P40.2052 must be assembled under the gripping jaw.
See 4. adjustment of the strap thickness.
Assembly in opposite direction.
N2.2806
N1.1909
N1.6203
P40.2520
P40.2521
P40.2053
P40.2522
P40.2052
