5
ATTENTION! Before starting using the tool it has to be adjusted
to the strap thickness used!

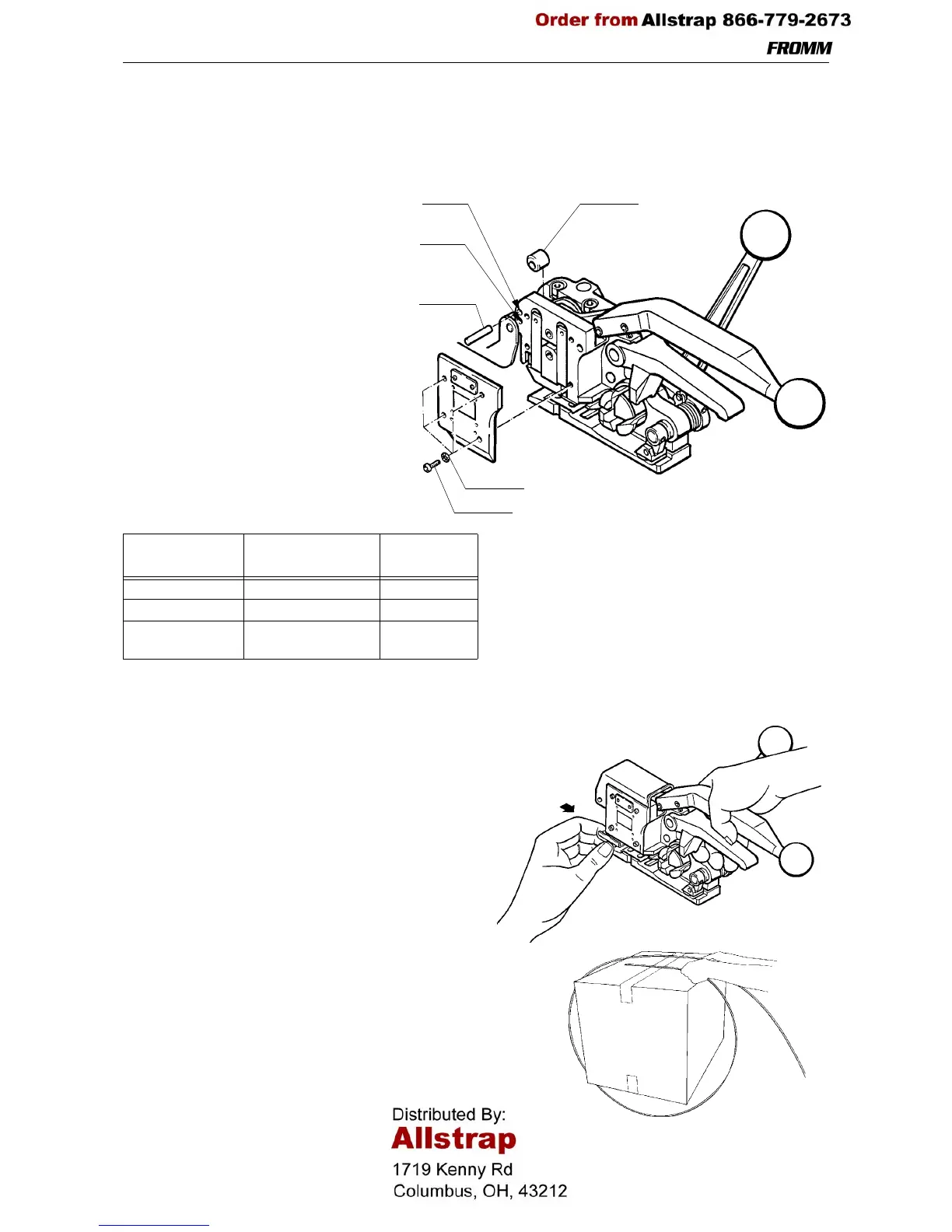

4 ADJUSTMENT OF THE STRAP THICKNESS
In order to achieve the highest possible
seal efficiency the tool must be adjusted to
the respective strap thickness through the
use of the parallel pin N2.2185 and the
stop P40.2511. Please proceed as follows:
- remove the side plate
- bring the parallel pin N2.2185 and if
necessary the stop P40.2511 into
the correct position of the strap
thickness used
- reattach the side plate
- in order to avoid the strap slipping
between gripper and gripping jaw
the shims underneath the gripping
jaw have to be assembled according
to below table.
* See 7.2 changing of gripper and gripping jaw.
5 OPERATION
Introducing the seal
The seal is introduced into the tool from the rear side
until it hits the strap stop. Use the left hand.
Feeding the strapping around the package
The plastic strapping is fed around the package as
shown in the illustration.
Strap
thickness
Stop Shim*
0.50 - 0.59 mm N2.2185 in Pos. 1 2 x P40.2052
0.60 - 0.74 mm N2.2185 in Pos. 2 1 x P40.2052
0.75 - 0.90 mm N2.2185 and
P40.2511 in Pos. 2
0
N2.2185
Pos. 1
Pos. 2
P40.2511
N1.6504
N1.1910
