Replacing wea-
ring parts
1

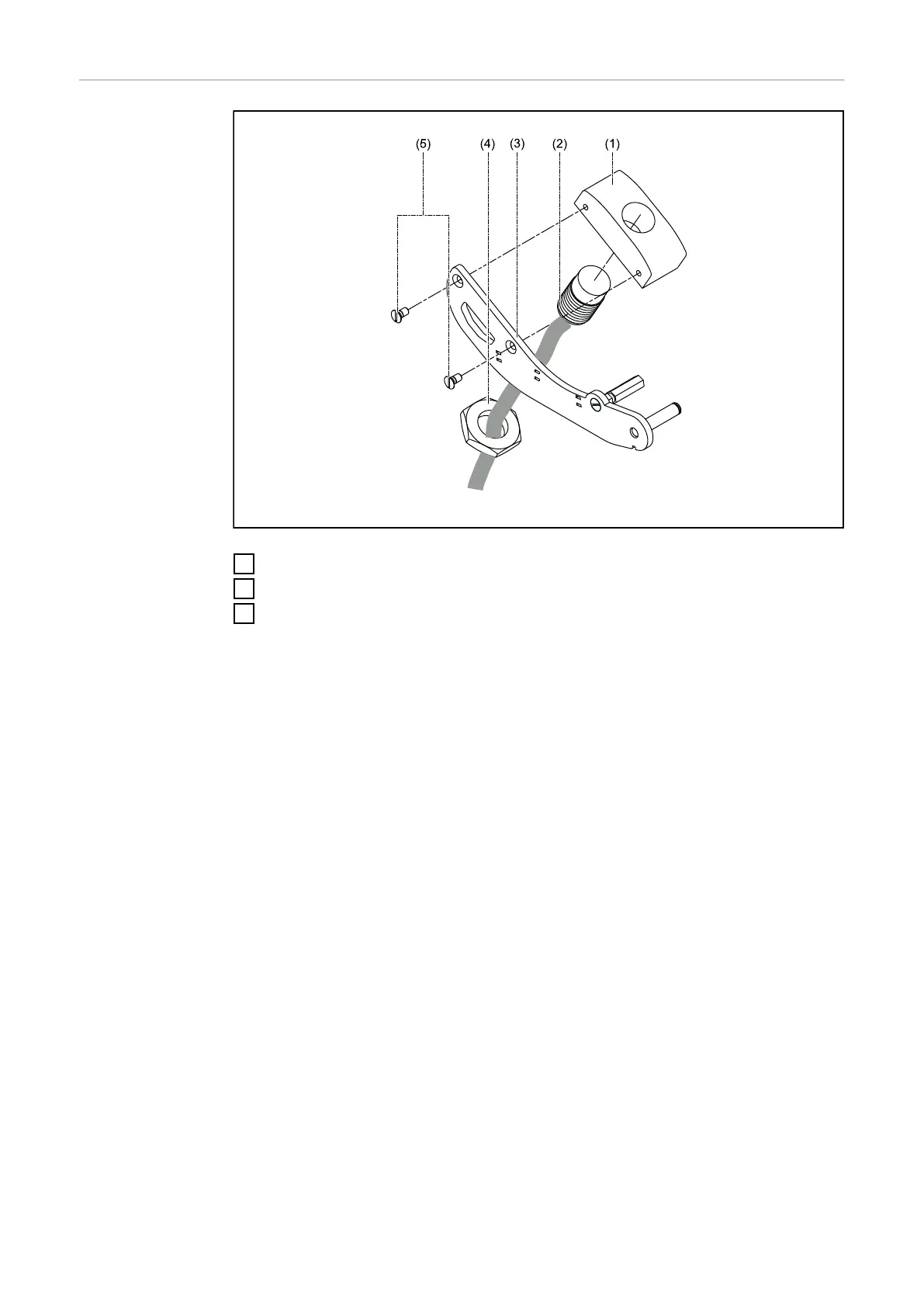

Lift the retaining arm (3) and sensor unit off the wirespool and lock in place
2
Undo screws (5) and take the shoe (1) and sensor (2) off the retaining arm (3)
3
Undo the hexagonal nut (4)
Attention! When screwing or unscrewing the shoe (1) to/from the sensor (2), en-
sure that the sensor cable is not twisted.
