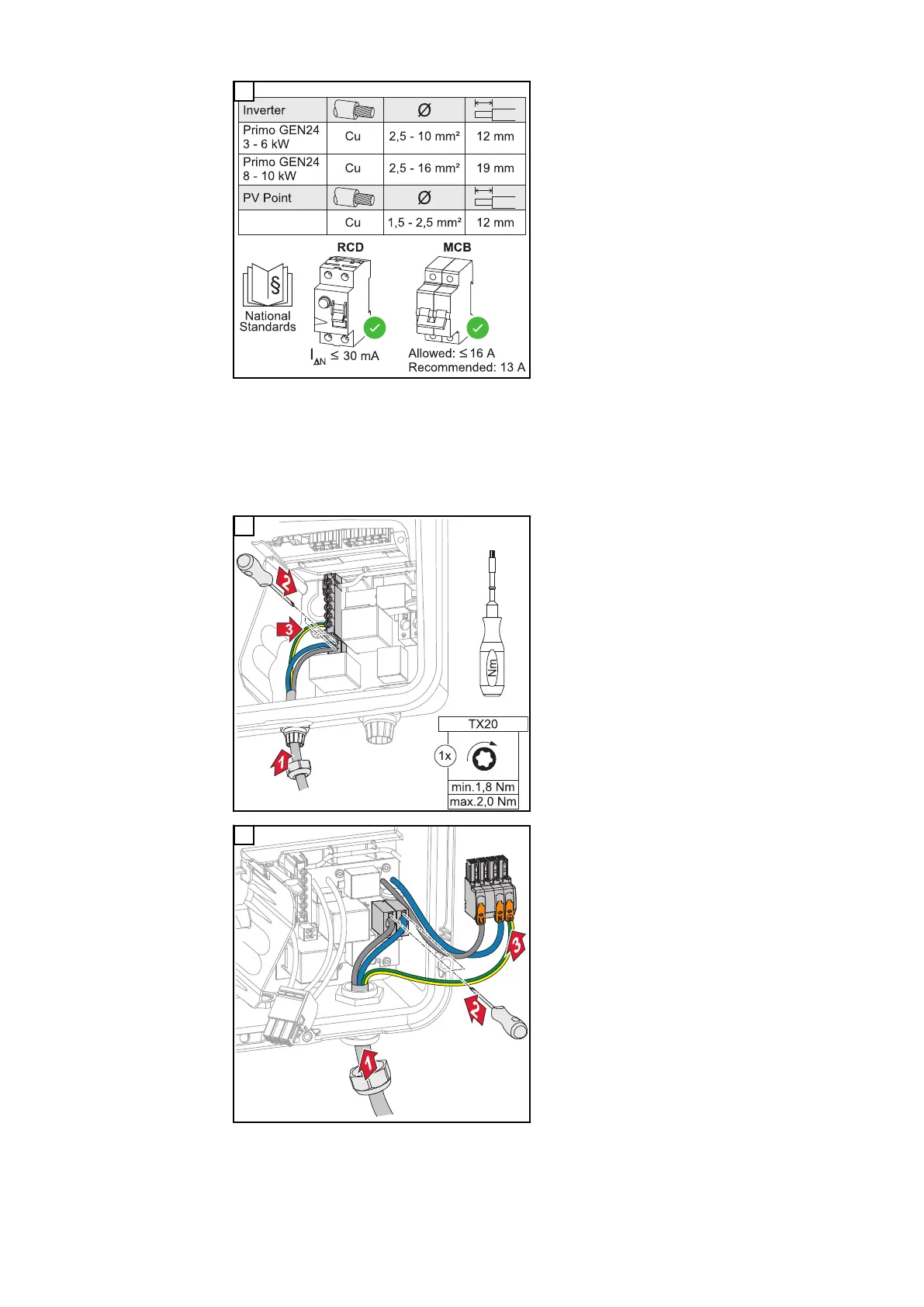

13
Strip the single conductors according
to the specifications based on the
power category of the inverter.
The cable cross-section must be selec-
ted according to the specifications for
the respective power category of the
inverter (see chapter Permissible
cables for the electrical connection on
page 67).
IMPORTANT!
If necessary, an automatic circuit breaker with max. 16 A can also be used for
protection. In backup power operation, a maximum of 13 A can be provided.
The residual current circuit breaker and automatic circuit breaker must be de-
signed according to the national provisions
14
Connect the phase/neutral conductors
to the terminals provided. Fasten the
ground conductor at the first input to
the ground electrode terminal using a
screwdriver (TX20) and a torque of 1.8
– 2 Nm.
IMPORTANT!
The ground conductor must be con-
nected with a movement loop so that if
the cable gland fails, the ground con-
ductor is disconnected last.
15
Connect the stripped phase/neutral
conductors to the terminals provided.
167
