Installation If installing the charger on a firm base, use the drilling template enclosed in the packaging.

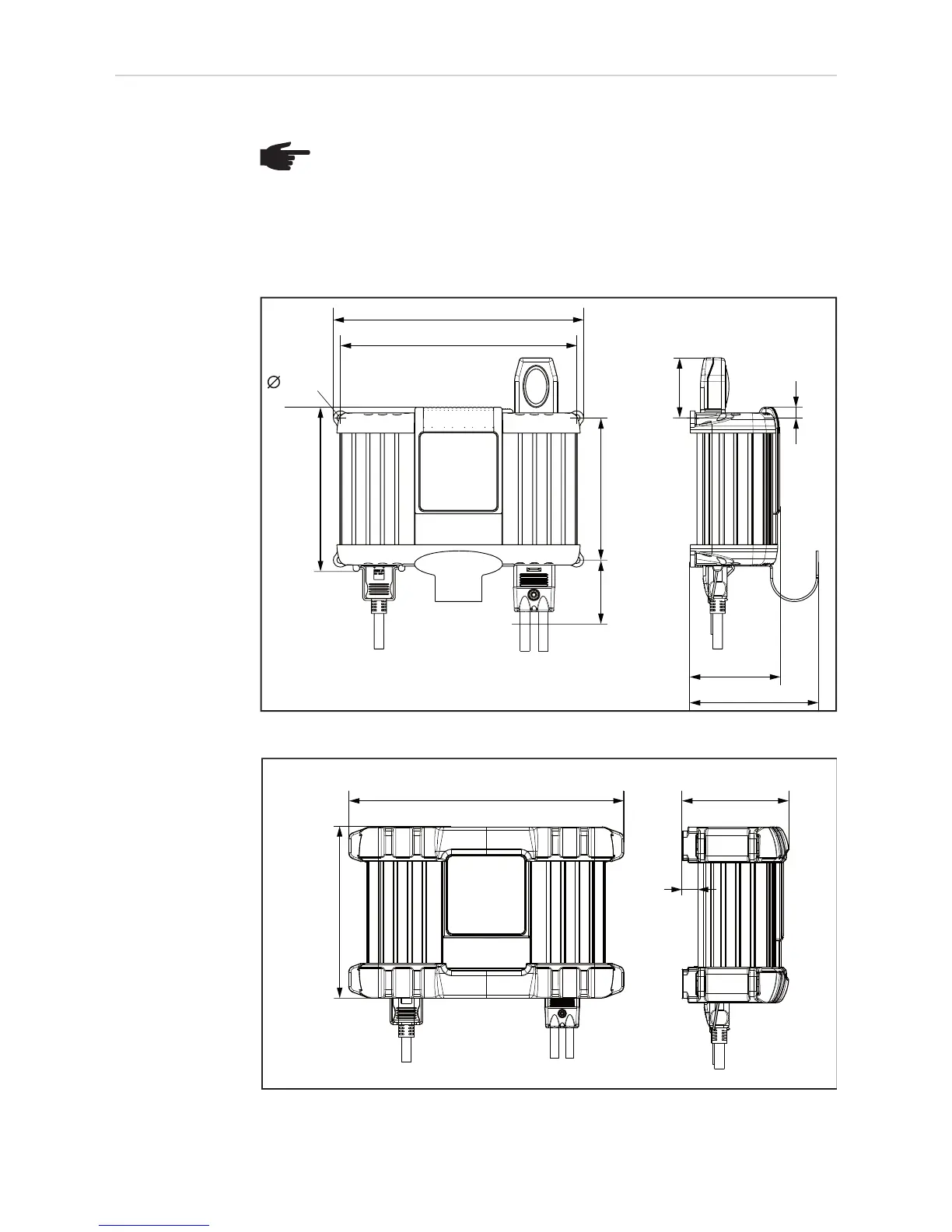

The space requirement measurements in mm (inches) illustrated below are given to en-
sure that there is easy access to the plug connections:
*Space for installation/removal
Space requirements with edge guard (*Space for installation/removal)
NOTE! IP44 protection is only guaranteed for the upright position.
If the charger is installed in a switch cabinet (or a similar sealed area), then
forced-air ventilation must be provided to ensure adequate heat dissipation.
There should be a clearance of 10 cm (3.94 in.) all around the device.
247 (9.72)
88 (3.46)
126 (4.97)
140 (5.51)
60 +20*
(2.36 + .79*)
70 + 20*
(2.76 + .79)
11 + 5*
(.43 + .2*)
162 (6.38)
233 (9.17)
6,5 (.26)
100 (3.94)
15,5 (.61)
168
(6.61)
270 (10.63)
