Fronius Symo 12.5-3-M User Manual

43
EN
The Basic menu
Access the Basic
menu
Items on the Ba-
sic menu

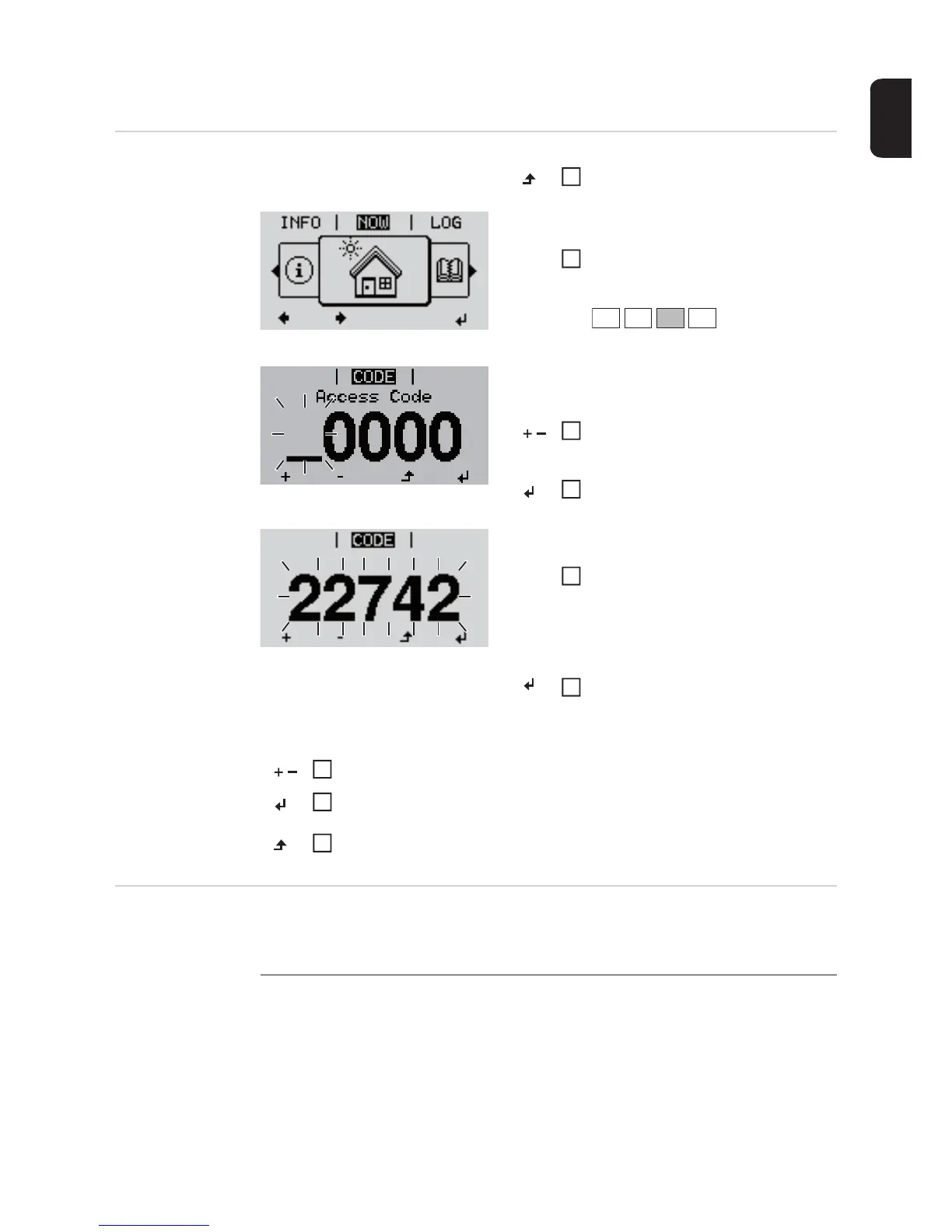

Press the "Menu" key
The menu level appears.
Press the unassigned 'Menu / Esc'
key
5 times
'Access Code' is displayed in the 'CODE'
menu; the first digit starts flashing.
Enter the code 22742: Use the 'Up'
and 'Down' keys to select a value for
the first digit of the code
Press 'Enter'
The second digit flashes.
Repeat steps 3 and 4 for the second,
third, fourth and fifth digit of the ac-
cess code until...
the selected code starts flashing.
Press 'Enter'
The Basic menu appears.
Use the 'Up' or 'Down' keys to select the desired menu item
Press the 'Enter' key to open the desired menu item
Press the 'Esc' key to exit the Basic menu
1
2
3
4
Access Code
5
6
7
8
9
The Basic menu is used to set the following parameters, which are important for installing
and operating the inverter:
MPP Tracker 1 / MPP Tracker 2
- MPP Tracker 2: ON / OFF (MultiMPP Tracker devices only, excluding Fronius Symo
15.0-3 208)

Fronius Symo 12.5-3-M Specifications

General

Dimensions	725 x 510 x 225 mm
Protection class	IP 66
Topology	Transformerless
Operating temperature range	-25°C to +60°C
Max. output current	18.1 A
THD	< 3%
Number of MPP trackers	2
Maximum Input Voltage	1000 V
Warranty	5 years
AC nominal output	12500 W
Max. apparent AC power	12500 VA
DC input voltage range	200 V - 1000 V
MPP voltage range	200 V - 800 V
AC nominal voltage	3 x 230 / 400 V
