Fronius VR 1500-PAP - System Overview; System Components; Available Options

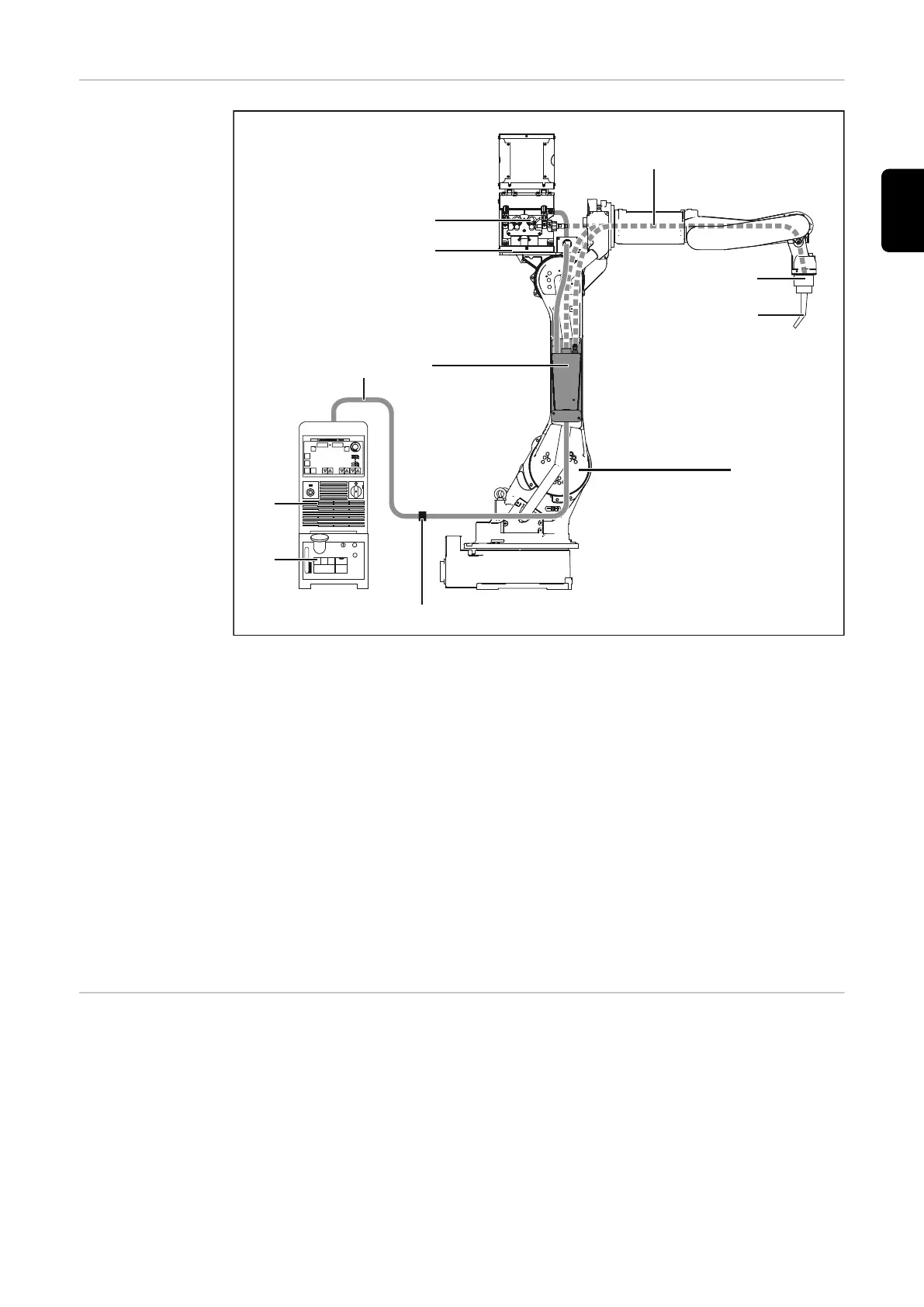

Overview
(1)
(10)
(9)
(8)
(7)
(6)
(4)(3)
(2)
(*)
(5)
(1) Cooling unit (e.g. FK 4000-R with optional flow watchdog)
(2) Power source (e.g. TransPuls Synergic 5000)
- with optional internal VR control installed
- with Official UST firmware version V4.23.15 or higher
(3) Interconnecting hosepack (power source - robot interface)
(4) Hosepack extension with connecting unit (robot interface - VR 1500-PAP)
(5) Wirefeeder mount
(6) Robot wirefeeder VR 1500-PAP
(7) Robacta W/CB-PAP or G/CB robot hosepack
(8) Robacta-PAP CrashBox
(9) Robacta robot welding torch
(10) Robot
(*) Robot interface
Options Digital Gas Control
digital shielding gas control (for digital VR 1500-PAP/D only)
Gas pressure sensor VR 1500
monitors the gas pressure
Blow-off
Torch blow-off VR 1500 basic in conjunction with blow-off via gas pipe (factory installati-
on only)
cleans the welding torch using compressed air via the gas pipe, max. 7 bar
47
EN
