Controls, connections and mechanical components
Safety
WARNING!
Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
▶
All the work and functions described in this document must only be carried out by
technically trained and qualified personnel.
▶
Read and understand this document in full.
▶
Read and understand all safety rules and user documentation for this device and all
system components.

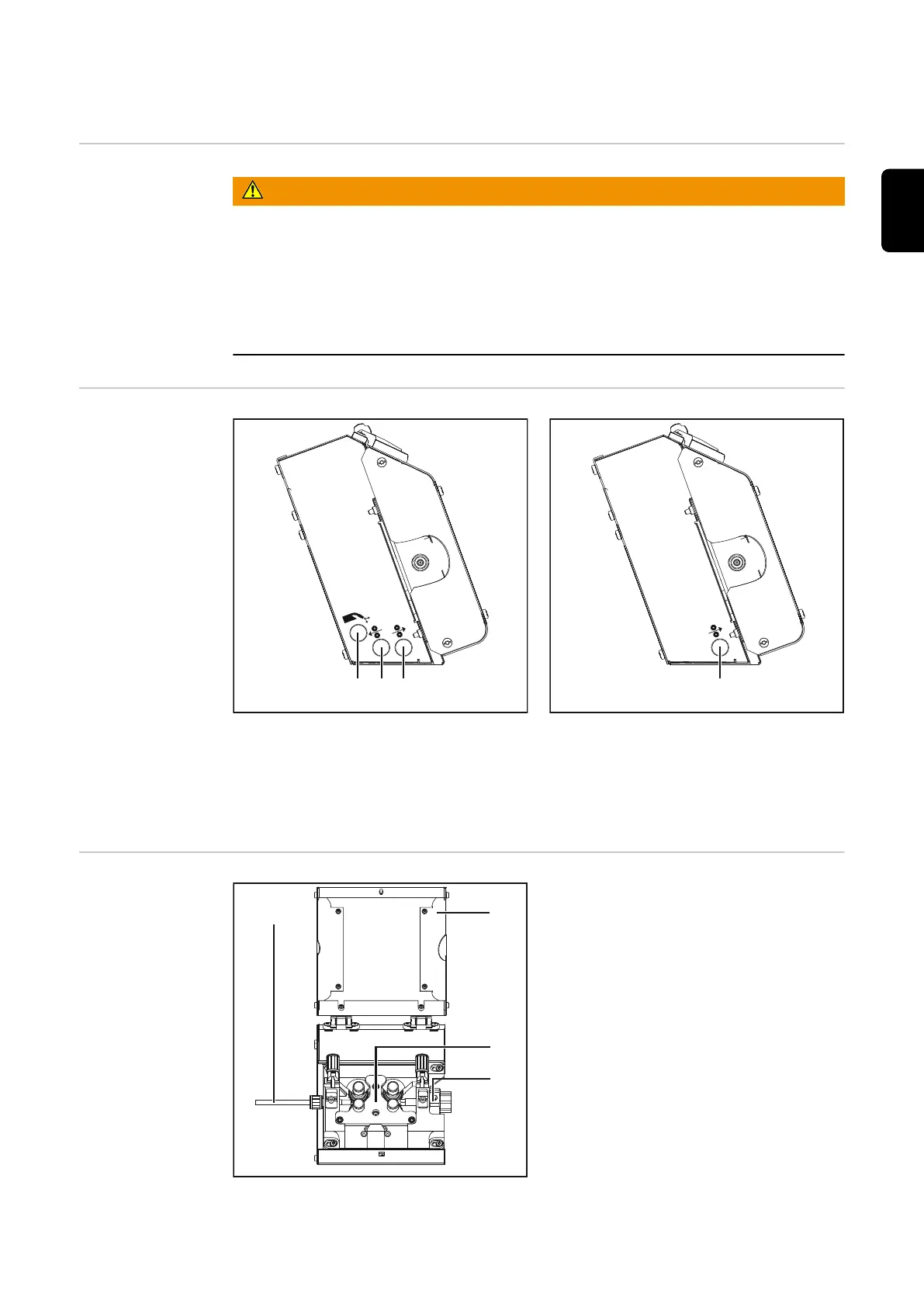

Controls
(1) (2) (3)
Controls on the rear, VR 1500-PAP/D, KD 1500-
PAP-11
(3)
Controls on the rear, VR 1500-PAP/A
(1) Gas-test button
(2) Wire withdrawal button
(3) Feeder inching button
Mechanical com-
ponents
(1)
(3)
(2)
(4)
Mechanical components on the side
(1) Wire infeed tube
(2) VR 1500-PAP cover
(3) 4-roller drive
(4) Welding torch connection
