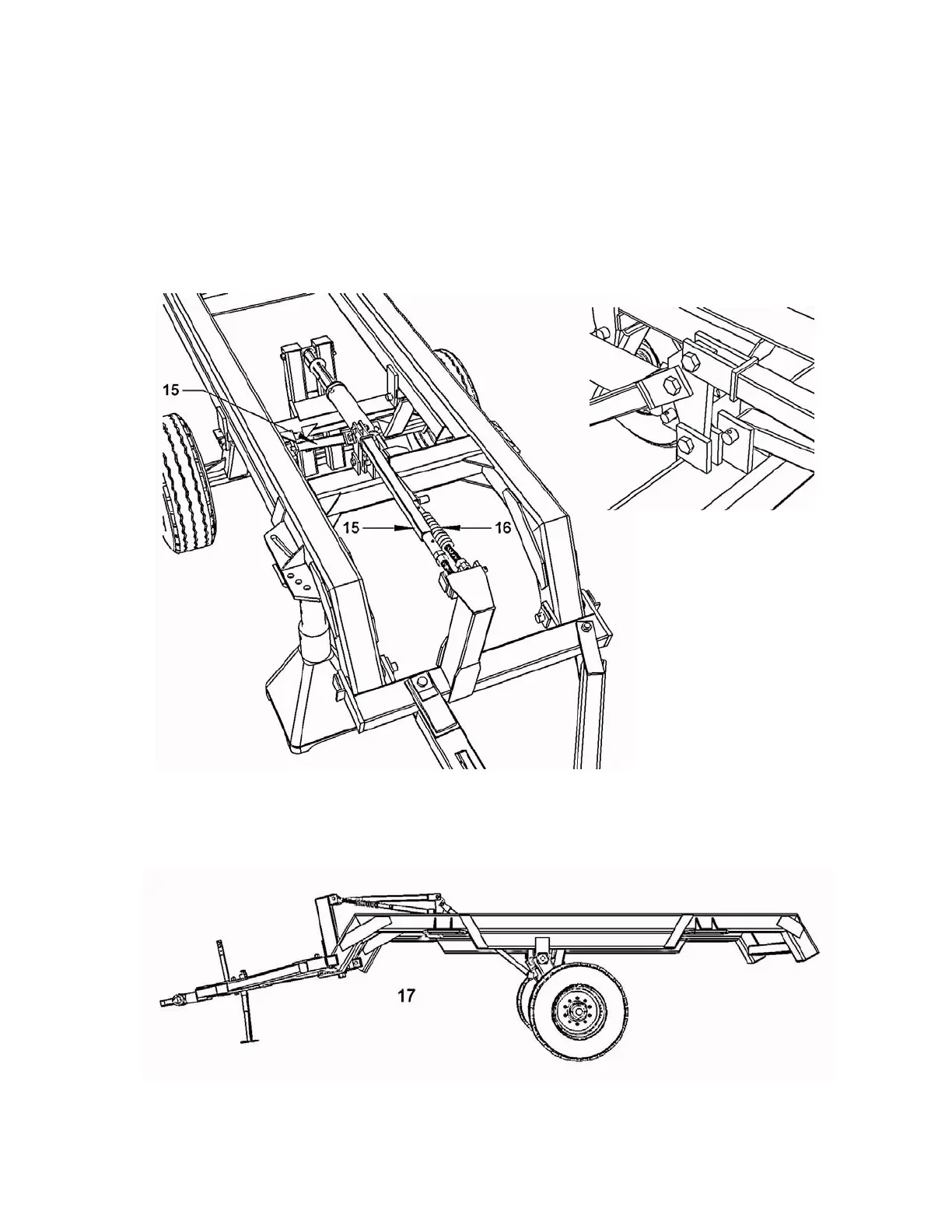

15. Bolt the triangular shaped lever plate (Item 15 – page 35) into the clevis on top of the first
frame cross member. Install the bottom transport control arm (Item 14 – page 35) between
the clevis on the transport assembly and the lever plate. Install the top transport control arm
and eyebolt (Items 7 and 8 – page 35) between the lever plate and the bridle mast. Turn the
nuts on the eyebolt clockwise (facing towards the back of the disk) until the rear most nut
contacts the pipe end of the transport arm.
16. Install the levelling assembly (Items 7, 9, 10 and 11 – pg 35) between the mast and the
frame. There should be no pressure against the spring.
17. It is now possible to lift the hitch of the disk and remove the support from under the frame.
Leave the tire chocks in place. At this point the hydraulic hoses can be connected to the
cylinder but do not charge the system.
28
