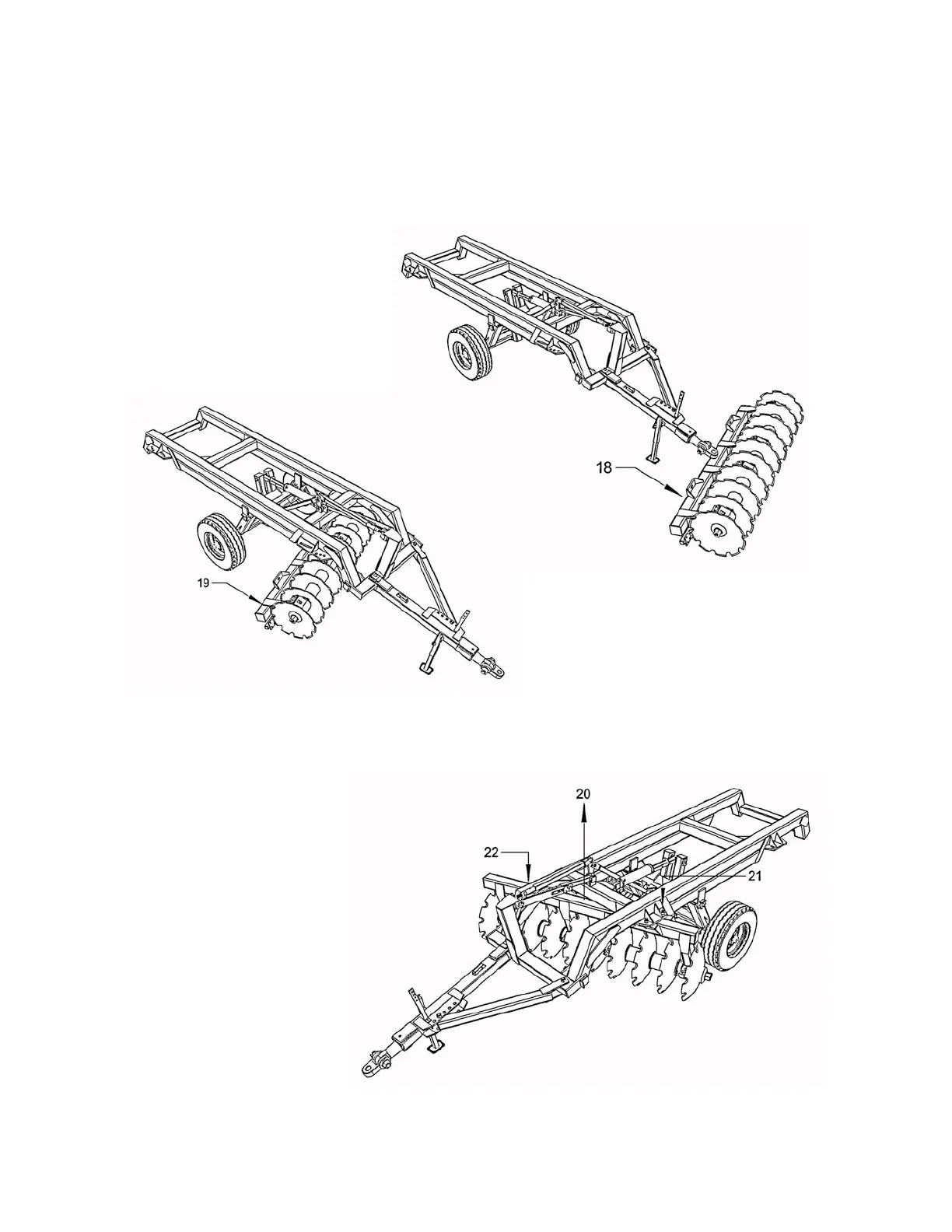

18. Place the front gang bar assembly ahead of the hitch at an approximate 20 degree angle and
with the disk blades facing the direction illustrated. When the gang bar assembly is attached
to the frame the blade scrapers must be to the rear.
19. Using a forklift or similar equipment, chain to the end of the hitch. Lift the hitch; unpin the
jack, swivel it up and re-pin; and pulling the disk forward, lift it up and over the gang bar
assembly. Drop the jack and
unchain from the hitch.
20. Using a single strap or chain of sufficient strength wraped around the center balance point of
the gang bar, lift straight up throught the frame. This may require fork extensions or a
boomlift. Once a single bolt and nut is installed (do not tighten), the gang bar assembly may
be lowered and the chain repositioned
to ease installation of the remaining bolts.
A pinch bar will make this task easier.
Install the bolts as per illustrations
21 and 22 on page 30.
