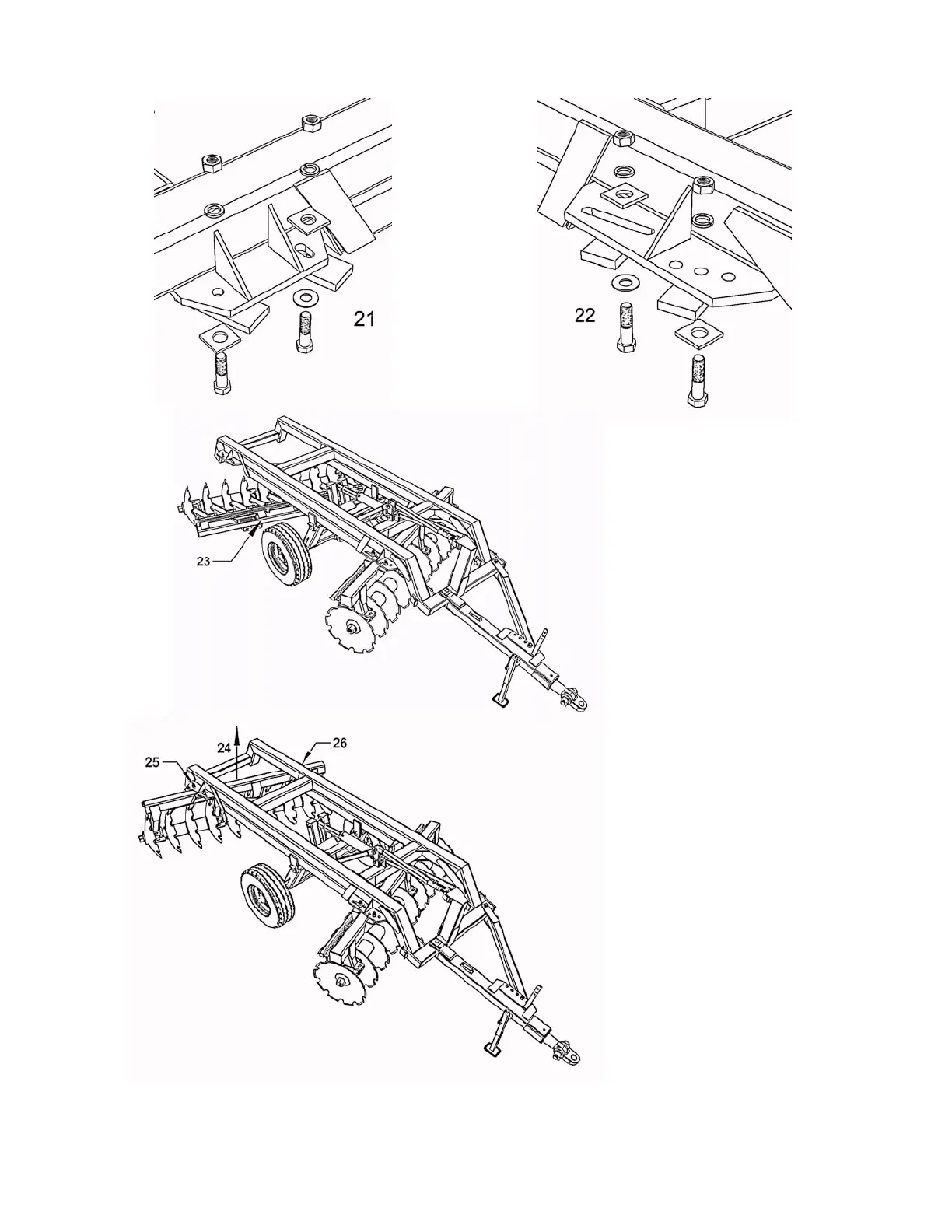

21 - 22. Note: Gang bars
deleted for clarity.
23. Place the rear gang bar
assembly under the rear of
disk with blades facing in
the direction illustrated.
24. Use a single strap or
chain of sufficient strength
wrapped around the gang
bar at its center point of
balance to lift the bar up to
the frame. This may require
fork extensions or a
boomlift. Once a single bolt
and nut is installed (do not
tighten), the gang bar
assembly may be lowered
and the chain repositioned
to ease installation of the
remaining bolts. A pinch
bar will make this task
easier. Install the bolts as
per illustrations 25 and 26
on page 31.
