ASSEMBLY
10
MTF−051057L

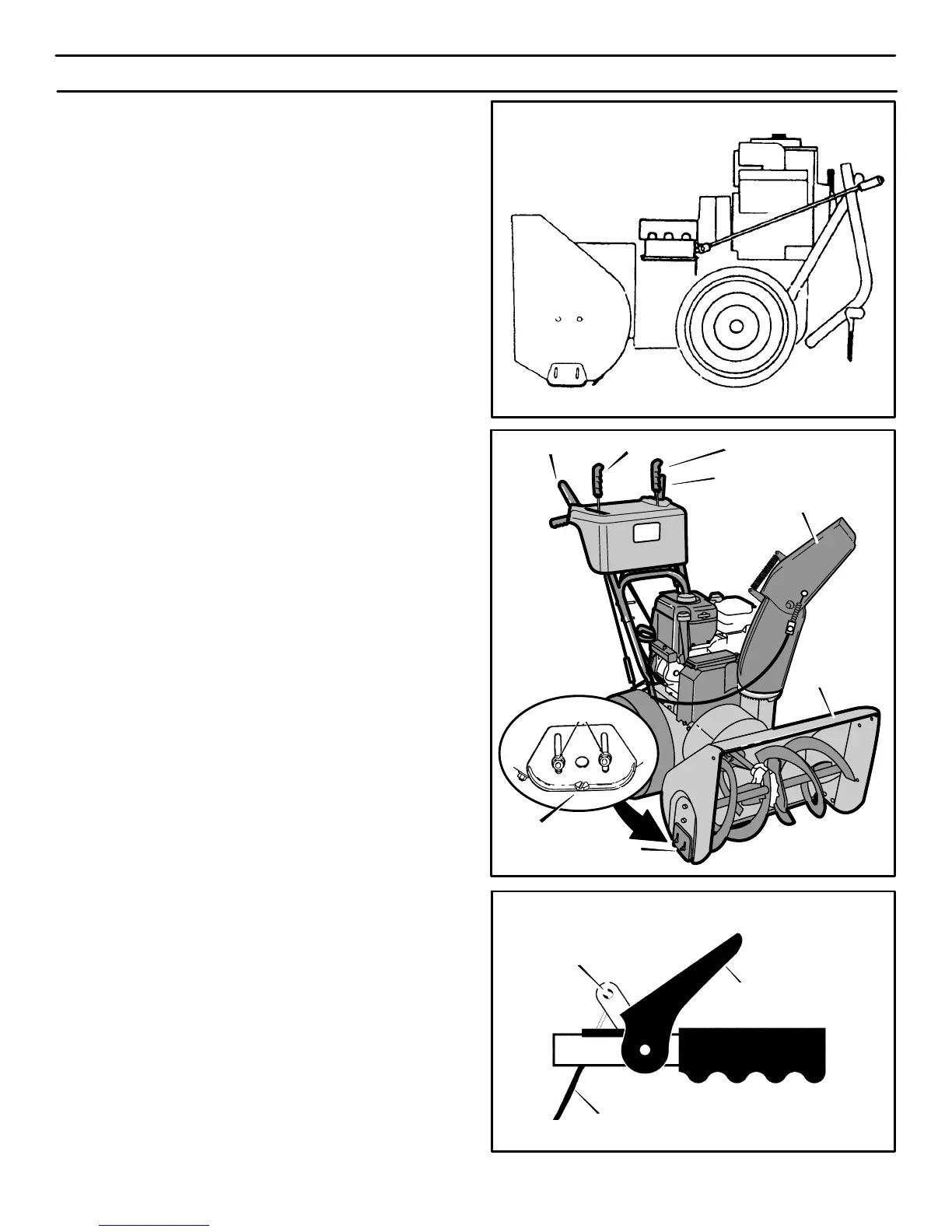

Figure 2 shows the snowthrower in the shipping position.
Figure 3 shows the snowthrower completely assembled.
Reference to right and left hand side of the snowthrower is
from the operator’s position at the handle.
UNPACKING
1. Locate the two tear tabs at the bottom of the carton.
2. Pull the tear tape no more than twelve inches (30.48cm.)
at a time. Re−grasp tape next to the carton and pull
again. Repeat until all the tape is torn off.
3. After the tape has been completely removed from the
carton, remove the carton from the base. Cut all four cor-
ners and fold the sides toward the center for easy dispos-
al.
4. Remove the plastic bag that covers the unit.
5. Locate and remove the parts bag.
NOTE: Set the fuel stabilizer aside until adding
gasoline to the fuel tank. We recommend that fuel
stabilizer is added to the fuel each time that gasoline
is added to the fuel tank.
6. For shipping purposes, the height adjust skids are at-
tached to the pallet. Remove the screw that secures
each height adjust skid to the pallet. (See Figure 2).
7. Roll the snowthrower off the carton by pulling on the low-
er handle.
CAUTION: DO NOT back over cables.
8. Remove the packing material from the handle assembly.
9. Cut ties securing the clutch control cables to the lower
handle.
NOTE: If the cables have become disconnected from the
clutch levers, reinstall the cables as shown in Figure 4.
Figure 2
Figure 3
Auger Drive
Lever
Traction Drive Lever
Snow Chute Deflector
Height Adjust
Skid
Auger Housing
Remote Chute Control
Screw
Speed Shifter Lever
Figure 4
”Z” Fitting
Drive Lever
Cable
To Next Page
