OPERATION
16
MTF--051057L
WHEEL LOCK OUT PIN

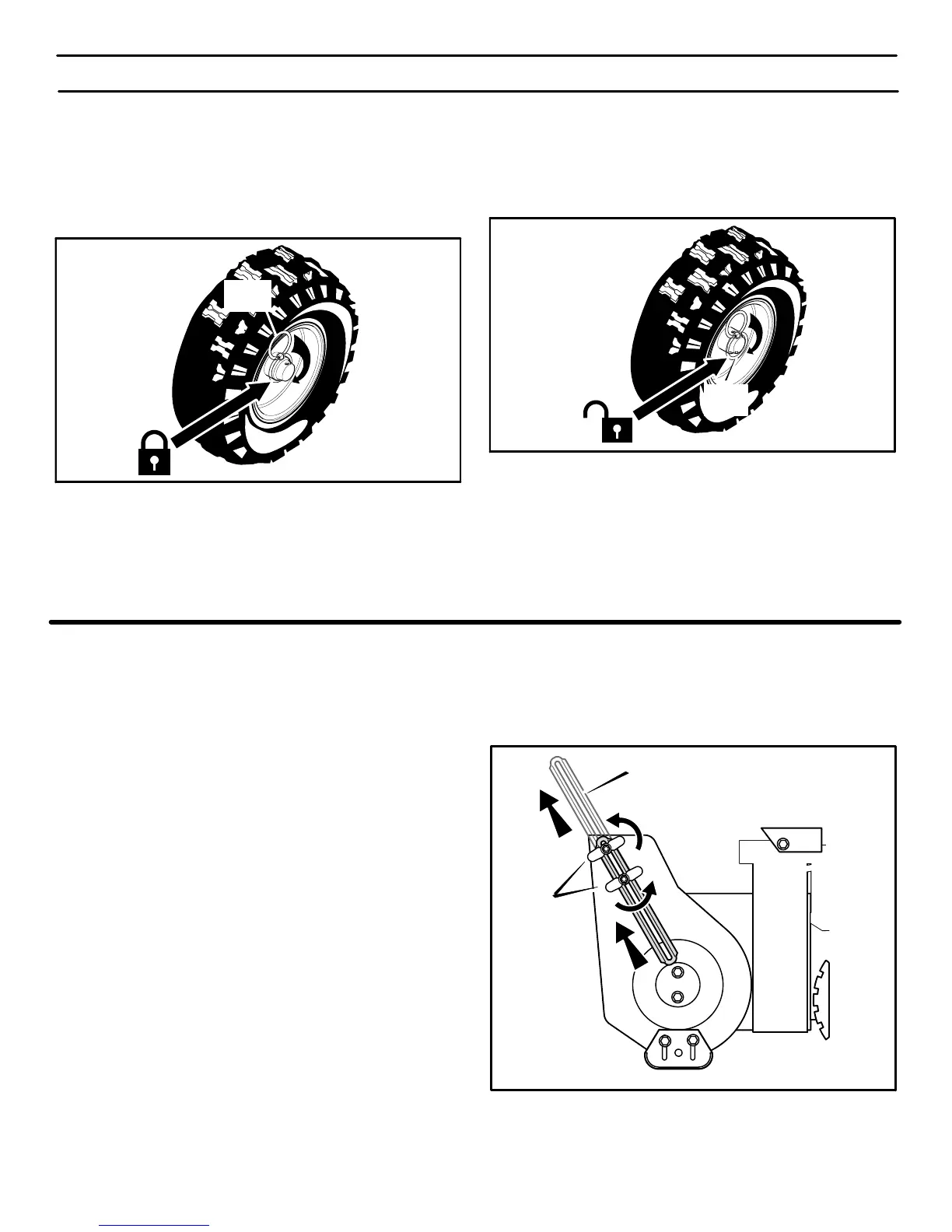

1. The right wheel is secured to the axle with a klick pin. This
unit was shipped with this klick pin in the locked position.
(Figure 14).
Figure 14
Locked
Position
Klik
Pin
2. For ease of maneuverability when lighter conditions pre-
vail, remove klick pin from wheel locked position and in-
sert into single wheel drive (unlocked) position
(Figure 15). Make sure that the klick pin is in the single
wheel drive position of the axle only and not through the
locked position.
Figure 15
Single
Wheel Drive
Position
(Unlocked)
Klik
Pin
NOTE: Check tire pressure. See side of tire for maximum
inflation. Do not exceed listed maximum pressure.
HOW TO SET THE DRIFT CUTTERS
(OPTIONAL ACCESSORY ON SOME MODELS)
Drift cutters are used to cut a path through snow deeper than
the auger housing.
1. Loosen the wingnuts that secure the drift cutters to the
auger housing (see Figure 16).
2. Raise the drift cutters to the desired height.
3. Tighten the wingnuts.
Drift Cutter
Wingnut
Figure 16
