Frontier ST0927 User Manual

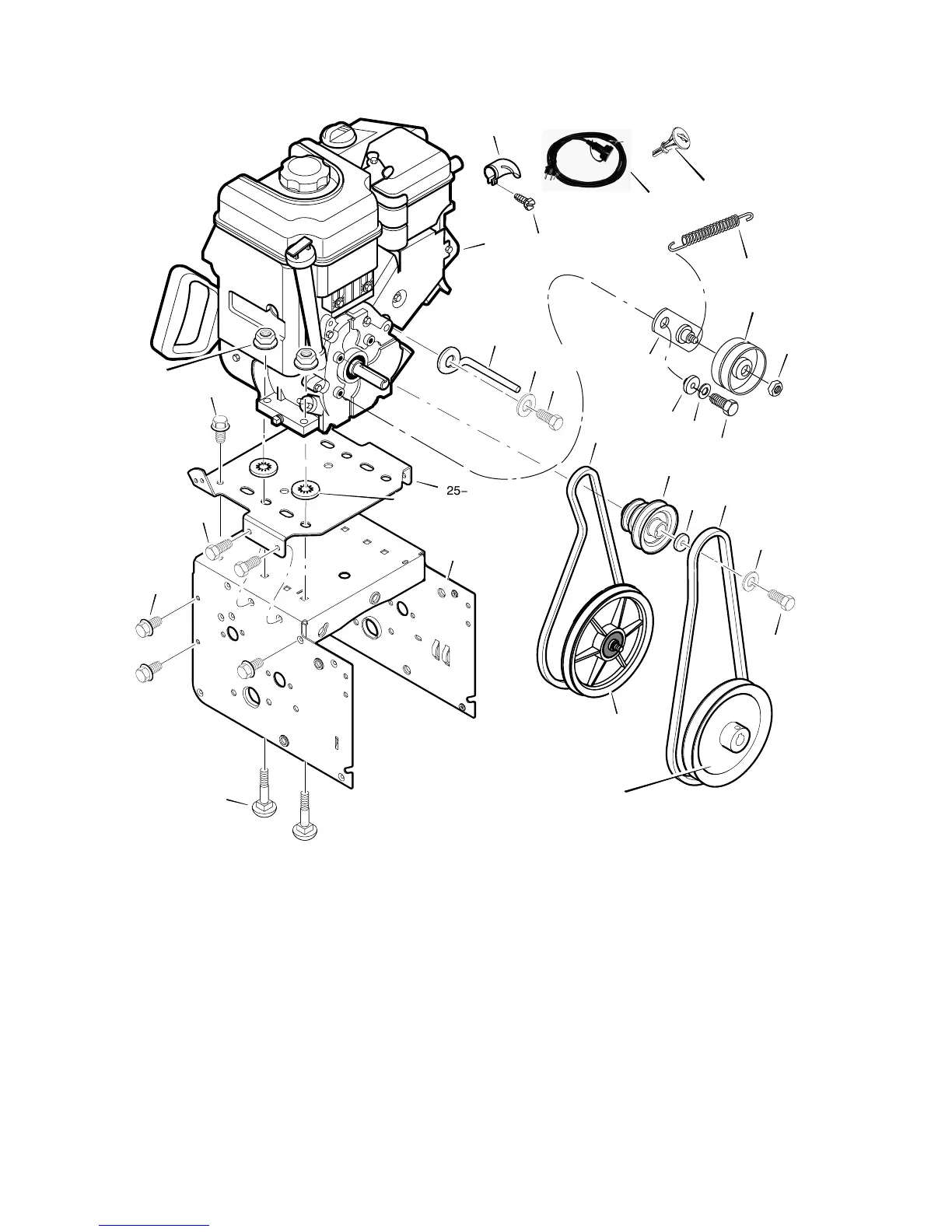

FRONTIER MODEL ST0927 FACTORY MODEL 627954x16A
41
MTF−051057L
ENGINE
Á
ÁÁ
25−1
2
3
25−4
25−2
25−3
5
4
20
22
24
10
6
7
8
11
Ref.Drive Page
Ref. Auger
Housing Page
9
25−2
16
17
18
14
13
15
12
1
27
28
26
Key No. Part No. Description Key No. Part No. Description
1 MT6219 CORD, STARTER
2 − − − − − ENGINE
3 MT002x97 BOLT, CARRIAGE
4 MT028x76 RETAINER, PUSH
5 MT710026 NUT
6 MT1501109 PULLEY, ENGINE
7 MT17x170 WASHER
8 MT71063 WASHER
9 MT71015 SCREW
10 MT579932 BELT, DRIVE V 4L
11 MT585416 BELT, AUGER V 3L
12 MT1501112 YZ BRACKET ASSEMBLY, IDLER
13 MT1501065 BUSHING, IDLER BRACKET
14 MT71060 WASHER, SPLIT
15 MT710097 SCREW 5/16−24 X .75
16 MT53704 SPRING, IDLER TRACTION DRIVE
17 MT1502120 PULLEY, IDLER
18 MT590 NUT, JAM 3/8−16
20 MT1501201 GUIDE, ROD BELT
22 MT71060 WASHER
25 − − − − − − FRAME ASSEMBLY
25−1 MT1501062E511 PLATE, ENGINE
25−2 MT310169 SCREW
25−3 MT25x020 SCREW
25−4 MT1501049E511 MOTOR BOX
26 MT1501214 KEY, BRIGGS ENGINE
27 MT226462 DEFLECTOR, MUFFLER
28 MT810140 SCREW
−− F−051057L OWNER’S MANUAL
