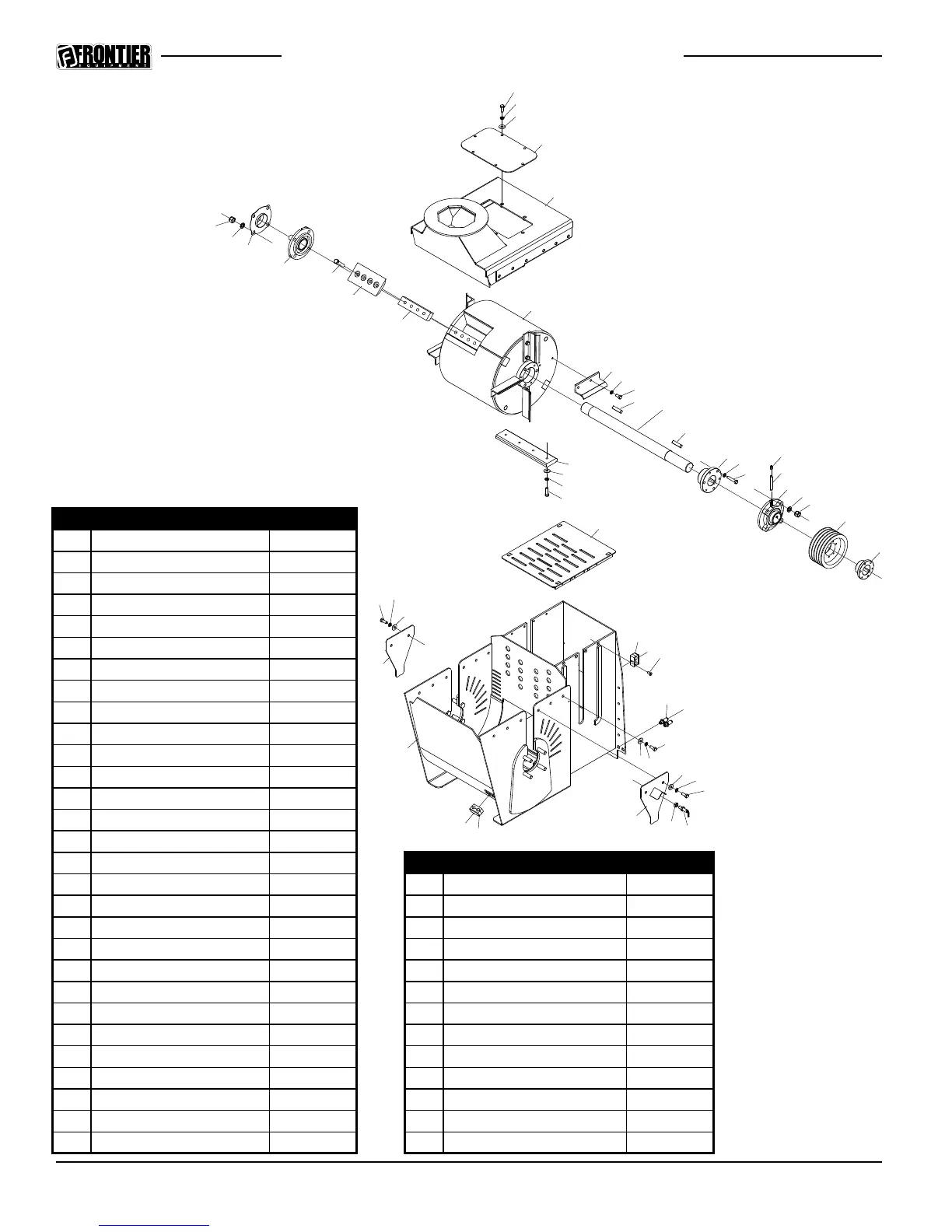

WC1208 Drum Housing
1
2
3
4
5
6
7
2
8
10
9
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
26
35
36
37
39
38
40
41
17
18
29
30
31
31
30
29
34
33
Ref# Description Part#
1 Bolt, 1/2 x 1-1/4 5PQ000420
2 Lock Washer, 1/2 5PQ000840
3 Flat Washer, 1/2 5PQ001055
4 Knife Access Cover 5PQ903451
5 Drum Hood Weldment 5PQ903059
6 Rotor Weldment 5PQ903440
7 Blower Paddle, Left 5PQ903031
Blower Paddle, Right 5PQ903020
8 Bolt, 1/2 x 1 5PQ000405
9 Key 5PQ903442
10 Drum Shaft 5PQ903004
11 2-3/8 E-Style Bushing 5PQ903038
12 Lock Washer, 1/2 5PQ000840
13 Bolt, 1/2 x 2-1/2 5PQ000460
14 Grease Fitting 5PQ903450
15 Nipple, 1/8 x 4 5PQ903449 Ref# Description Part#
16 2-3/8 Flange Bearing 5PQ903024 29 Bolt, 1/2 x 1-1/4 5PQ000420
17 Lock Washer, 3/4 5PQ000870 30 Lock Washer, 1/2 5PQ000840
18 Hex Nut, 3/4 5PQ000975 31 Flat Washer, 1/2 5PQ001055
19 8" 5-Groove Pulley 5PQ903018 32 Speed Sensor Cover 5PQ903454
20 2-3/8" SF Bushing 5PQ903036 33 Jam Nut, 5/8 5PQ000681
21 Bed Knife 5PQ903002 34 Magnetic Pickup 5PQ900216
22 Flat Washer, 1/2 5PQ001055 35 Drum Housing 5PQ903023
23 Lock Washer, 1/2 5PQ000840 36 Bearing Slot Cover, Right 5PQ903446
24 Bolt, 1/2 x 1-3/4 5PQ000445 37 Knife Bar 5PQ903441
25 Feed Chamber Cover 5PQ903073 38 Chipper Knife 5PQ903001
26 Hose Holding Kit 5PQ903443 39 Bolt, 5/8 x 3 Grade 8 5PQ000628
27 Socket Screw, 3/8 x 1 5PQ000301 40 2-3/8 Flange Bearing 5PQ903024
28 Bulkhead Fitting 5PQ290257 41 Bearing Cover 5PQ903448
