OPERATION
Chip chute adjustments

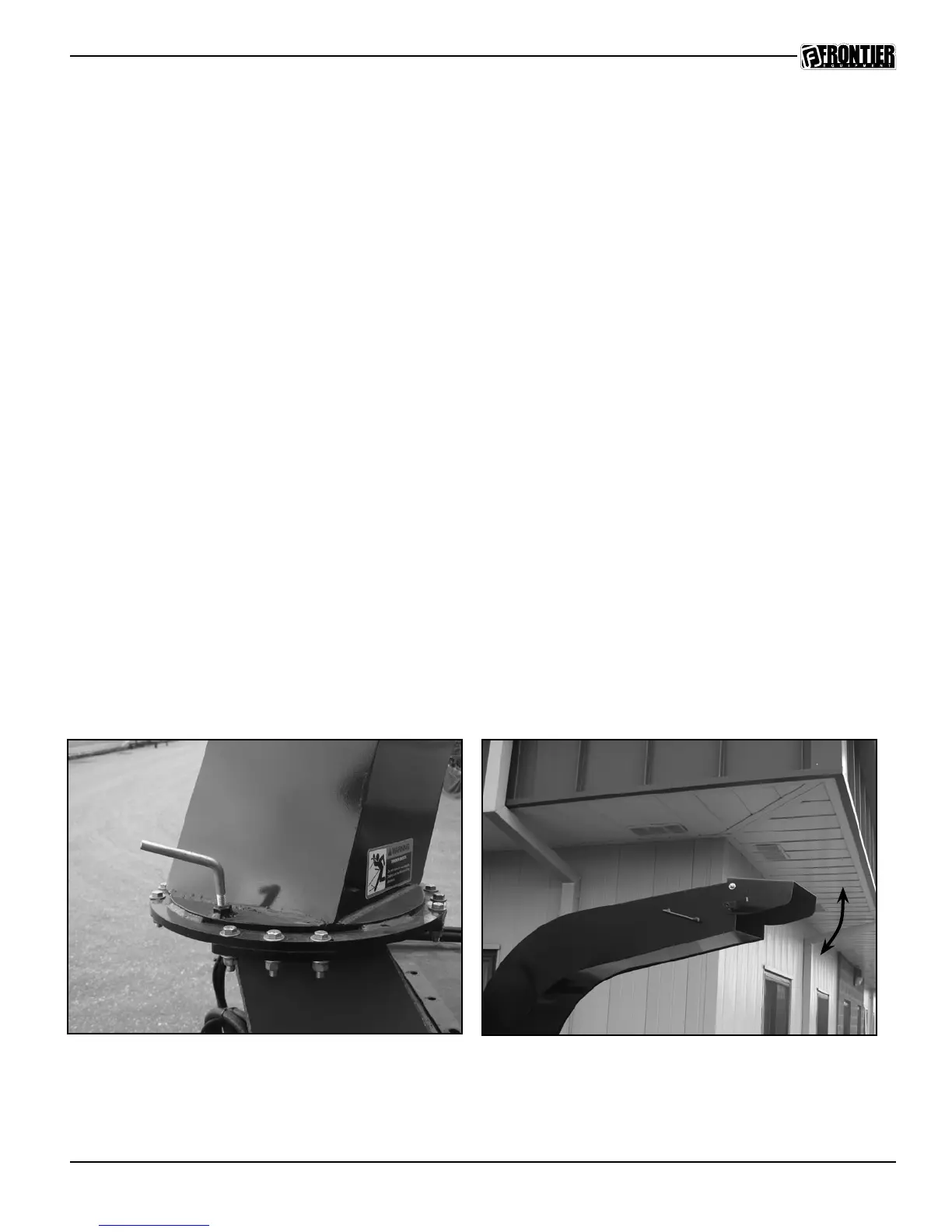

To position the chip chute, loosen the set bolt (Figure 3) and rotate the chute to the desired
position, then retighten the set bolt. The chute conveniently rotates a full 360 degrees. Be sure
the set bolt is tight and the chute is locked in place before transporting the chipper!
Deector
The chip deector easily adjusts to regulate the distance that the chips are thrown. Loosen the
locking handle and adjust as desired. (Figure 4)
